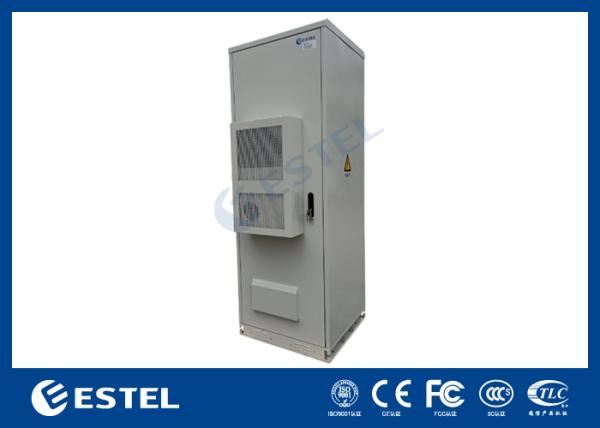

45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications
45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications
45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications
45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications
Specifications
Brand Name :
ESTEL
Model Number :
ET8080230A-45U
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
715-4286 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Model :
ET8080230A-45U
Protection Level :
IP55
External Dimension :
H800mm×W800mm×D2300mm ( can be customized)
Internal Space :
19 inch, 45U
Material :
Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall with PEF heat insulation
Insulation :
20mm PE
Coating :
Polyester powder coating
Color :
RAL7035
Description

45U Outdoor Telecom Cabinet with PDU

1.Technical Parameters

Configuration Item Technical Parameter
Cabinet Model ET8080230A-45U
Protection Level IP55
External Dimension H800mm×W800mm×D2300mm ( can be customized)
Internal Space 19 inch, 45U
Material Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall with PEF heat insulation
Insulation 20mm PE
Coating Polyester powder coating
Color RAL7035
Lock Three-point lock
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet with gland: 8xPG21 and 8xPG29
Maintenance One front door, front maintenance
Air conditioner Cooling Capacity 1500W
Input Voltage 48VDC
Communication RS485
Sensor Working voltage DC40V-DC60V
Power Distribution Unit 125A 6 way UK plug
LED Lamp Voltage: 48VDC LED Lamp with switch
Environment Working Temperature -40℃~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000meters

2.Cabinet Diagram

45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications

45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications

45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications
