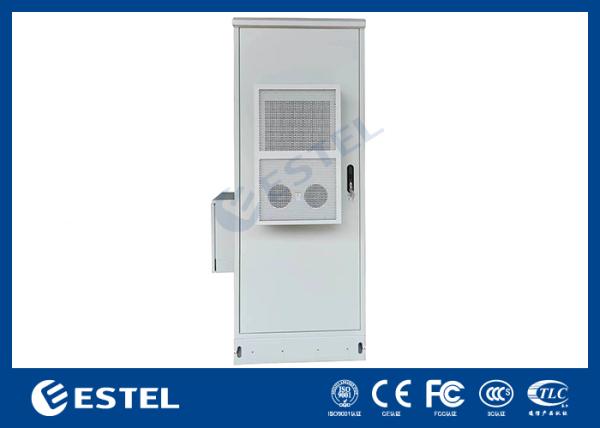

Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
Specifications
Brand Name :
ESTEL
Model Number :
ET807521A-40U
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
715-4286 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
15-30 working days
Packaging Details :
wooden case
Model :
ET807521A-40U
Protection Level :
IP55
External Dimension :
H2100mm×W800mm×D750mm
Internal Dimension :
19 inch rail, 40U
Material :
Galvanized steel, 1.2mm + 1.0mm thickness, double walls. Thickness of bearing parts: 2.0mm
Insulation :
20mm PEF
Coating :
Polyester powder coating
Color :
RAL7035
Description

Outdoor Telecom Cabinet with PDU and Side Box

1.Technical Parameters

Configuration Item Technical Parameter
Cabinet Model ET807521A-40U
Protection Level IP55
External Dimension H2100mm×W800mm×D750mm
Internal Dimension 19 inch rail, 40U
Material

Galvanized steel, 1.2mm + 1.0mm thickness, double walls.

Thickness of bearing parts: 2.0mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing 10 at the cabinet bottom and 10 on each front side, all with a diameter of 24mm.able in and out from the bottom of cabinet
Maintenance One front door, front maintenance
Cooling Options AC air conditioner Heat exchanger Fans-6 pcs
Cooling Capacity 2000W 150W/K
Input Voltage 220VAC 50HZ 48VDC 48VDC
Communication RS485 RS485 With temp. controller
Power Distribution Unit Voltage 200VAC～240VAC(optional)
Input

1× 3P 40A, 1x 3P 25A,1x 1P 10A(接灯),1x 1P 16A

SPD 40KA (optional), terminal block, H socket.
Output Leakage protection circuit breaker:1x 16A
Sensors Door sensor , temperature and humidity sensor
Side box

Generator socket, 32A 425V, IP45,

terminal blocks-6 pins x 32A, 9 pin (for LED),

3 indicator lights, cable inlet at the bottom.
Others 48VDC LED lamp for illumination with switch,access control, temperature and humidity sensor (48VDC)
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters

2.Cabinet Diagram

Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage

Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage

3.Cabinet Pictures

Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage

Double Walls 40U IP55 Outdoor Telecom Cabinet with PDU and Side Box 2000W Cooling Capacity 220VAC/48VDC Input Voltage
