1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
Specifications
Brand Name :
ESTEL
Model Number :
1S 63 XKN4D1-4e4g
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
715-4286 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
wooden case
Product Name :
Power Distribution Unit
Product specifications and models :
1S 63 XKN4D1-4e4g
RoHS :
Yes
Socket type and number :
4 -position C 13 (slider anti-drop), 4-position C 19 (hook to prevent slipping)
Internal connection line :
10AWG, 14AWG , 16 AWG electronic wire, copper strip
Power input mode :
Open transparent junction box
Cable Specifications :
Customers connect 3 * 1 6mm² cables by themselves
Cable installation method :
Upper input
Description

Power Distribution Unit 4 Ports

1.Power Distribution Unit Specifications

Customer Name NO. Product Specifications Description
Product Name Power Distribution Unit 1 Socket type and number

4 -position C 13 (slider anti-drop),

4-position C 19 (hook to prevent slipping)
Product specifications and models 1S 63 XKN4D1-4e4g 2 Internal connection line 10AWG, 14AWG , 16 AWG electronic wire, copper strip
Product Code / 3 Power input mode Open transparent junction box
Product quantity / 4 Cable plug type /
RoHS Yes 5 Cable Specifications Customers connect 3 * 1 6mm² cables by themselves
Customer Product Code / 6 Cable installation method Upper input
Customer product specifications and models / 7 Cable fixing Cable holder
8 Shell color Black
Special product instructions The product is controlled by two circuit breakers, with corresponding A and B marks on the circuit breakers and the product. 9 Dimensions ( L*W*H ) 1171*52*44.4mm
10 Center distance of fixing holes 1151.5mm
11 Aluminum alloy shell length 1117 mm
12 Product Installation Method Bracket installation
13 Bracket installation direction Vertical reverse mounting
Factory accessories M6 screws, nuts 4pcs each; C19 metal anti-drop parts 4pcs, C14 plug power cord 1pc 14 Control indicator function 2*1P/ 32A hydraulic circuit breaker
15 Protection monitoring function KN- 4 Series
16 Software Version /
Product Identification Product Name Power Distribution Unit
Customer Specifications 1S 63 XKN4D1-4e4g
Rated voltage and current 200-240 VAC 63A
Safety certification mark /
Product Logo neutral
Manufacturer neutral

2.Product Renderings

1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System

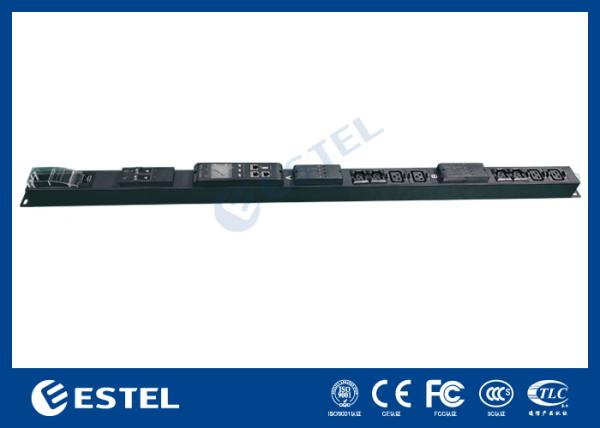

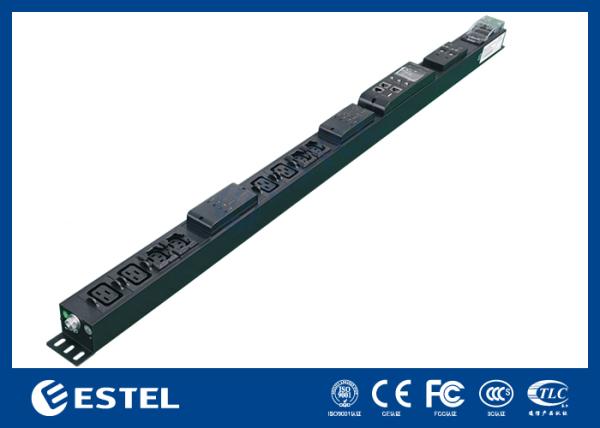

3.Product Pictures
1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
1S 63 XKN4D1-4e4g Power Distribution Unit 4-Position C13 And C19 Sockets For Telecom Power System
