4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003
4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003
4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003
4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003
4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003
4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003
Specifications
Brand Name :
ESTEL
Model Number :
ET48200-003
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
715-4286 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
carton/wooden case
Dimension :
482.0(W)*350.6(D)*5U(H)
Weight :
≤20kg (without rectifiers)
Cooling mode :
Natural cooling
Installation mode :
Installed on 19-inch rack or inside the cabinet
Cabling mode :
Top inlet and top outlet
Maintenance mode :
Front maintenance, support module grade change
Protection level :
IP20
Input mode :
220VAC single phase
Description

Embedded DC Power System

1.Embedded DC Power System Specifications

Type 4~12kW 5U Subrack
System Dimension 482.0(W)*350.6(D)*5U(H)
Weight ≤20kg (without rectifiers)
Cooling mode Natural cooling
Installation mode Installed on 19-inch rack or inside the cabinet
Cabling mode Top inlet and top outlet
Maintenance mode Front maintenance, support module grade change
Protection level IP20

AC

Distribution

 Input mode 220VAC single phase
Input capacity 1×100A/2P
Input frequency 45~65Hz, rated value: 50Hz/60Hz
AC SPD 20kA/40kA, 8/20μs
Output capacity 1×16A/1P, 1×10A/1P

DC

Distribution

 Output voltage -43~-58VDC, rated value: -53.5VDC
Maximum capacity 12kW(4KW*3)
Battery breakers 2×125A/1P
Load breakers

LLVD:2×63A/2P, 2×32A/1P, 2×16A/1P

BLVD:1×32A/1P, 1×16A/1P, 2×10A/1P, 1×6A/1P
DC SPD 10kA/, 8/20μs
Rectifier Input voltage 85VAC～300VAC, rated 220VAC
Efficiency ＞96.6%
Rated power 4000W(176~300VAC)
Working temperature -40℃~+75℃(fully output below 50℃)
Dimension 106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight ≤2.1kg
Cooling mode Forced cooling
Power factor ≥0.99 @220Vac 20-100% Load

Controller

 Signal input 3 AI(2 Battery temp., 1 ambient temp.) ,8 DI ,2 RS485.
Alarm output 8 dry contact
Communication port LAN,USB, RS485, SNMP
Display mode LCD
Environment Operating temperature -40℃~+70℃
Storage temperature -40℃~+70℃
Operating humidity 5%~95%(non-condensing)
Altitude 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

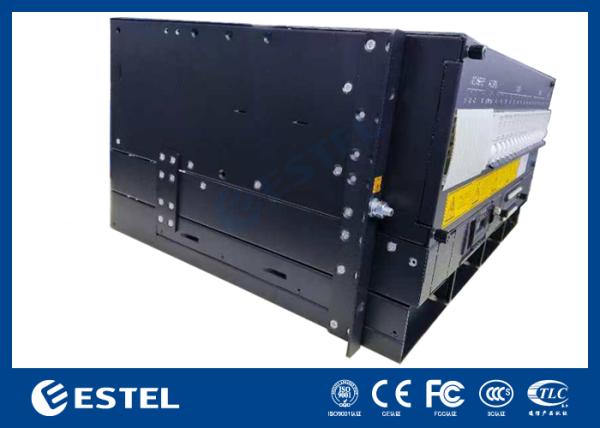

2. Product Pictures

4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003

4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003

4 - 12kW 5U Subrack 85-300Vac 200A Embedded DC Power Systems For Telecommunications 19-inch Rack InstalledET48200-003
