Specifications
Brand Name :
ESTEL
Model Number :
ET6060120A-9kW-150A
Certification :
CE UL FCC
Place of Origin :
China
MOQ :
1 Set
Price :
715-4286 usd
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
3000 sets per month
Delivery Time :
15-30 days
Packaging Details :
Wooden case
Cabinet dimension :
WxDxH=600x600x1200mm (Can be customized)
Internal space :
19'' standard rack, 20U space
Material :
Galvanized sheet
Power capacity :
18kW, 300A
Rectifier module :
3x 50A
Cooling method :
Air conditioner or forced fan system
IP grade :
IP55
Packaging :
Wooden case
Description

Outdoor Telecom Cabinet With 18kW 300A Telecom Power System for Telecom Equipment DC Power Supply Rectifiers

1. Introduction

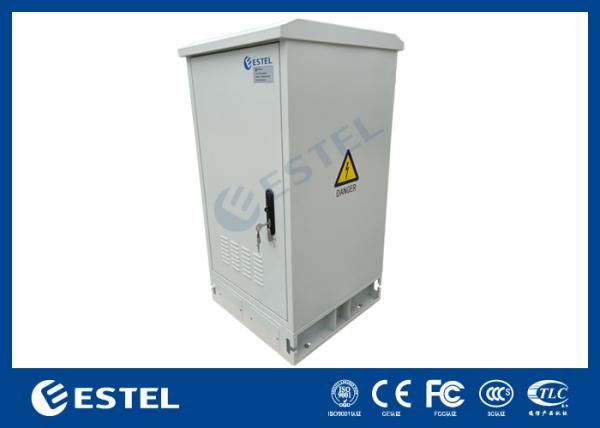

ET6565100A-18kW-300A is an outdoor cabinet which can protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor

telecommunication equipment which need DC power supply.

2. Applications

This outdoor telecom cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

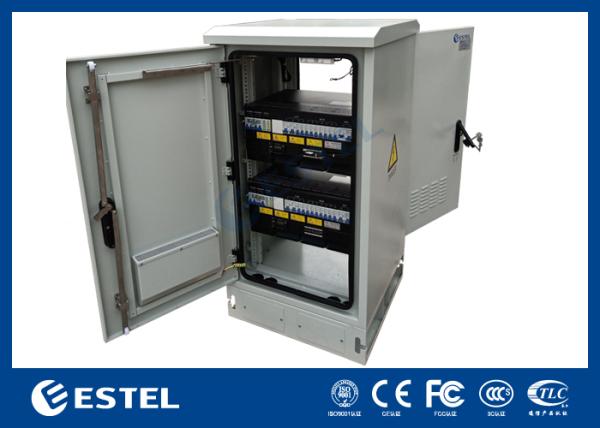

3. Cabinet Features

  • High protection grade: IP55
  • Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
  • Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
  • Support remote management, improve security and minimize customer’s operation cost

Outdoor Telecom Cabinet With 18kW 300A Telecom Power System , DC Power Supply Rectifiers Telecom Equipment Cabinet

3. Rectifier Power System Features

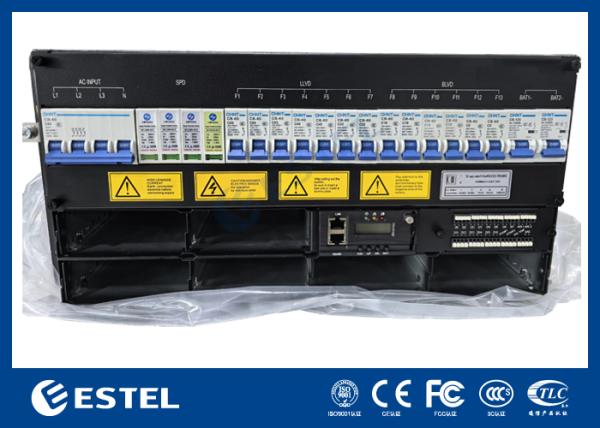

  • Power system capacity: 18kW, 300A, 6 rectifier modules + 1 monitoring module;
  • Power system height: 5 rack units;
  • Rectifier module specification: 3kW (50A)
  • Monitoring module: support SNMP;
  • Power distribution:

- LLVD: 3x 63A/1P, 2x 40A/1P, 2x 32A/1P;

- BLVD: 2x16A/1P, 2x 10A/1P, 2x 6A/1P;

4. Cooling System Features

Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.

5. Technical Parameters

Configuration Item Technical Parameter
Cabinet Model ET6565100A-16U (5U/18kW/300A)
Protection Level IP55
External Dimension H 1000 mm×W 650 mm×D 650 m (Can be customized)
Internal Dimension 19 inch 16U
Material Galvanized steel, 1.2 mm thickness, single wall.
Thickness of bearing parts: 2.0 mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance one front door and one rear door
Cooling System Air conditioner 600W (Optional)
Fan 2pcs fan with one fan controller
Input Voltage AC220V 60Hz
Door sensor Door sensor
Temper sensor Temper sensor
Rectifier system Rectifier system 18kW(300A) 19" rack mount, 5U Rectifier System:
6x 50A rectifier module (Total 300A)
Monitoring Controller Module*1, SNMP communication port
Power distribution:
LLVD: 3x 63A/1P, 2x 40A/1P, 2x 32A/1P
BLVD: 2x16A/1P, 2x 10A/1P, 2x 6A/1P
LED Lamp LED lamp for illumination with switch, Voltage: AC220V, 60Hz.
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
