Black 200 - 240VAC 32A Vertical PDU Power Distribution Unit with C13 / C19 Outlets for Power Distribution
Black 200 - 240VAC 32A Vertical PDU Power Distribution Unit with C13 / C19 Outlets for Power Distribution
Black 200 - 240VAC 32A Vertical PDU Power Distribution Unit with C13 / C19 Outlets for Power Distribution
Black 200 - 240VAC 32A Vertical PDU Power Distribution Unit with C13 / C19 Outlets for Power Distribution
Specifications
Brand Name :
ESTEL
Model Number :
1S32L30KN3D1-21E3G-2
Certification :
ROHS
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
43-1429 usd
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
3,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Size and specification :
(L*W*H) 1686*52*44.4mm
Cable plug system :
32A IEC60309 (2P+E) IP44
Socket system and number :
IEC320 C19 (3); IEC320 C13(21)
Internal connecting line :
16AWG, 14AWG, 12AWG, copper stick
Fixed hole center distance :
1666.5mm (Back stud spacing 933mm)
Power supply input mode :
Cable
Shell color :
Black
Cable specifications :
3*6mm²*3m
Cable installation mode :
Top input
Cable fixing :
Fixed wire holder+Dust rubber ring
Description

Black 200-240VAC 32A Vertical Power Distribution Unit with C13/C19 Outlets

1. Power Distribution Unit Product Specification Parameter Description:

Customer name NO. Product specification parameter description
Product name PDU 1 Socket system and number IEC320 C19 (3); IEC320 C13(21)
Product specification and model 1S32L30KN3D1-21E3G-2 2 Internal connecting line 16AWG,14AWG,12AWG,copper Stick
Product code 3 Power supply input mode Cable
Product quantity 4 Cable plug system 32A IEC60309 (2P+E) IP44
RoHS YES 5 Cable specifications 3*6mm²*3m
Customer product code / 6 Cable installation mode Top input
Customer product specification and model 7 Cable fixing Fixed wire holder+ Dust rubber ring
8 Shell color Black
Special product description / 9 Size and specification(L*W*H) 1686*52*44.4mm
10 Fixed hole center distance

1666.5mm

(Back stud spacing 933mm)
11 Aluminum alloy shell length 1632mm
12 Product installation mode Bracket installation
13 Installation direction of bracket Vertical inversion
Factory accessories 4 pcs for each M6 screw and nut 14 Control indication function 2*1P/16A Hydraulic circuit breaker
15 Protection monitoring function KN-3
Product identification Product name PDU
Customer specifications and models 1S32L30KN3D1-21E3G-2
Rated voltage and current 200-240VAC 32A
Safety certification mark /
LOGO /
Manufacturer ESTEL

2. Power Distribution Unit Product Renderings:

Black 200 - 240VAC 32A Vertical PDU Power Distribution Unit with C13 / C19 Outlets for Power Distribution

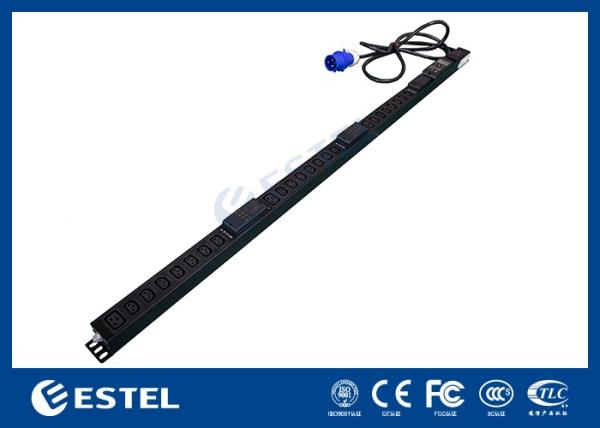

Figure 1. 1S32L30KN3D1-21E3G-2 (KT-PDU-16-VL)
