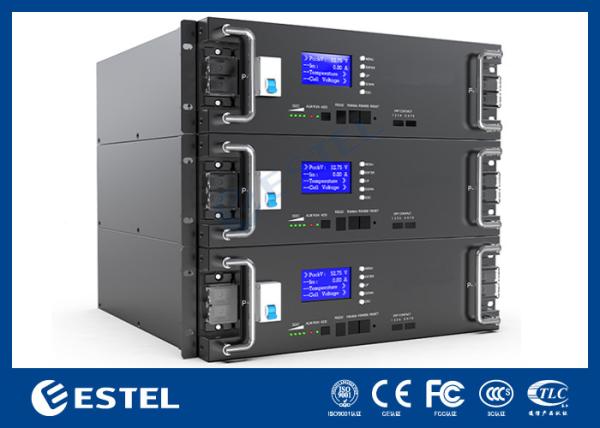

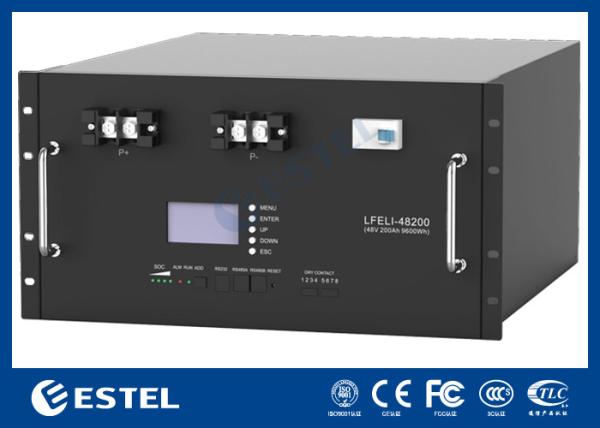

48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet
Specifications
Brand Name :
ESTEL
Model Number :
LFELI-48200
Certification :
CE UL FCC
Place of Origin :
China
MOQ :
1 Unit
Price :
715-4286 usd
Packaging Details :
Wooden case
Supply Ability :
20000 units per month
Delivery Time :
20-30 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Rated Capacity (5HR) :
200 Ah
Nominal Voltage :
48V
Max. Charging/Discharging Current :
100A (Max. over current 150A or 200A)
Energy :
9600Wh
Dimensions (W*D*H) mm :
442*520*244
Installation :
19'' standard rack mountable
Cycle Life :
6000 cycles
IP Class :
IP30
Description

48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet

1. Features of 200Ah Battery for Telecom Power System:

  • Safe Lithium Iron Phosphate Technology
  • Safe to use Low self-discharge rate
  • Excellent high temperature performance
  • High cycle times and long life
  • High energy density and conversion efficiency
  • Environmentally friendly without any heavy metals
  • High-performance BMS battery management system
  • Easy to install, 19-inch cabinet or wall-mounted installation

2. Typical Applications of 200Ah Battery for Telecom Power System:

  • Access Network Equipment
  • Remote Switching Offices
  • Mobile Communication Equipment
  • Transmission Equipment
  • Satellite Ground Stations
  • Microwave Communication Equipment
  • Communication field as backup power supply

​

48V 200Ah Lithium Iron Phosphate Battery LiFePO4 Battery for Telecom Power System Outdoor Battery Cabinet


3. Technical Parameters of 200Ah Battery for Telecom Power System:

Item Parameter
Rated Capacity (5HR) 200 Ah
Nominal Voltage 48V
Discharge Ending Voltage 40.5V
Charging Limited Voltage 54V
Max. Charging/Discharging Current 100A (Max. over current 150A or 200A)
Weight Approx. 79.3kg
Energy 9600Wh
Display With LCD display
Max. Number of Parallel Connection 15
Dimensions (W*D*H) mm 442*520*244
Installation 19’’ standard rack mountable
Design Life 20 years
Cycle Life 6000 cycles
IP Class IP30
Case Material SPCC
Operating Temperature

Charging: 0 to +45℃

Discharging: -10 to +55℃

Storage: -20 to +60℃
Terminal M6


4. Discharge parameters of 200Ah Battery for Telecom Power System:

Constant Current Discharge Table (Amperes) at 25℃

Time / Voltage

 2h 4h 6h 10h 20h
End of discharge voltage 40.5V 100A 50A 33.3A 20A 10A

Constant Power Discharge Table (Watts) at 25℃

Time / Voltage

 2h 4h 6h 10h 20h
End of discharge voltage 40.5V 4800W 2400W 1600W 960W 480W
