Specifications
Brand Name :
ESTEL
Model Number :
ET2304000-001
Certification :
CE FCC UL
Place of Origin :
China
MOQ :
1 Unit
Price :
715-4286 usd
Supply Ability :
1000 Unit Month
Delivery Time :
20-30 working days
Packaging Details :
Wooden case
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model :
ET2304000-001
DC Input Voltage :
-42~-58VDC, Rated: -53.5VDC
AC Output Power :
Single-phase 220Vac
Max. Output Power :
6kW (2kW×3)
Dimensions :
482.6（W）*350（D）*1U（H）
Installation :
19-inch rack-mounted
Weight :
≤8kg (Without modules)
Cooling Method :
Forced air cooling
Description

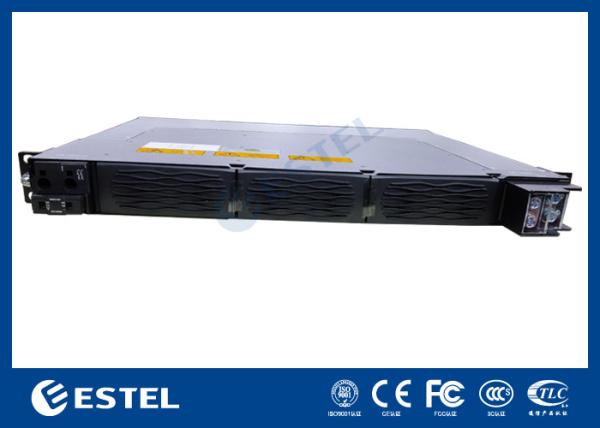

Compact -48VDC to 220VAC Inverter DC to AC Power Supply for Telecom Power System 1U Height Power Voltage Converter

1. Introduction of 1U Inverter for Telecom Power System:

The 1U Inverter Chassis features a highly compact design. It supports a maximum AC output current of 45A.

2. Key Features of 1U Inverter for Telecom Power System:

  • Standard 19-inch width, offering broad compatibility.
  • 1U compact height, saving space and reducing installation costs.
  • Front wiring and operation, ensuring aesthetic appeal and safe maintenance.
  • Hot-swappable inverter modules, enabling quick online maintenance.

​
-48VDC To 220VAC 1U Compact Height Inverter DC To AC Power Supply For Telecom Power System

3. Typical Applications of 1U Inverter for Telecom Power System:

  • Wireless base stations
  • Transmission networks
  • Enterprise communication networks


4. Technical Parameters of 1U Inverter for Telecom Power System:

Dimensions482.6(W)*350(D)*1U(H)
Weight≤8kg (Without modules)
Cooling MethodForced air cooling
Installation19-inch rack-mounted
Cable RoutingFront inlet/outlet
MaintenanceFront maintenance, supports hot-swapping
Protection LevelIP20
AC Output PowerSingle-phase 220Vac
AC Output Circuit Breaker1×32A/2P(1U breaker)
AC Outpu Frequency45~65Hz, Rated:50Hz/60Hz
Max AC Output Power6kW(2kW×3)
DC Input Voltage-42~-58VDC, Rated: -53.5VDC
DC Input Connector300A
Input Voltage-42~-58VDC, Rated: -53.5VDC
Efficiency≥93% (53.5V input, 220V output)
Rated Output Power2000W
Operating Temperature-20℃~+75℃(Full load output below 45℃)
Dimensions106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight≤2kg
Cooling MethodForced air cooling
Operating Temperature-20℃~+75℃(Full load output below 45℃)
Storage Temperature-40℃~+75℃
Operating Humidity5%~95%
Altitude0~3000m (At 2000m~3000m, max operating temperature decreases by 1℃ per 200m increase)
