ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels
ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels
ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels
ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels
ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels
ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels
Specifications
Cabinet External Size :
H1300mm×W800mm×D800mm
Material :
Galvanized steel, single wall with insulation
Integrated Accessories :
PDU, EMS,sensors for optional
Cabinet Lock :
Anti-theft three point lock(support padlock)
Protection Level :
IP55
Color :
RAL7035 grey
Surface Treatment :
Outdoor anticorrosion powder coating
Brand Name :
ESTEL
Model Number :
ET8080130A-22U
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
358-2143 usd
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
5,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Cooling :
48VDC air conditioner
Model No. :
ET8080130A-22U
19 Inch Rack :
22U
Description

ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels

1.ET8080130A-22U Outdoor Telecom Cabinet Introduction:

ET8080130A-22U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.

2.Four Wheels Outdoor Cabinet Technical Parameters:

tem Technical Parameter
Cabinet Model ET8080130A-22U
Protection Level IP55
External Dimension H1300mm×W800mm×D800mm
Internal Space 19 inch, 22U
Material Galvanized steel; 1.2mm thickness; single wall; Thickness of bearing parts: 2.0mm
Insulation PEF 20mm
Coating Polyester powder coating
Color RAL7035
Lock Front door, Three-point lock
Hinge Inner hinge
Installation Options Floor mounted with 4 wheels
Cable Routing Cable in and out from the bottom of cabinet
Maintenance Front door, front maintenance
Cooling Cooling Capacity 1500W
Heat Capacity 500W
Power supply 48VDC
Others 48VDC Lamp, with switch.
Environment Working Temperature -40℃~+55℃(+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000meters

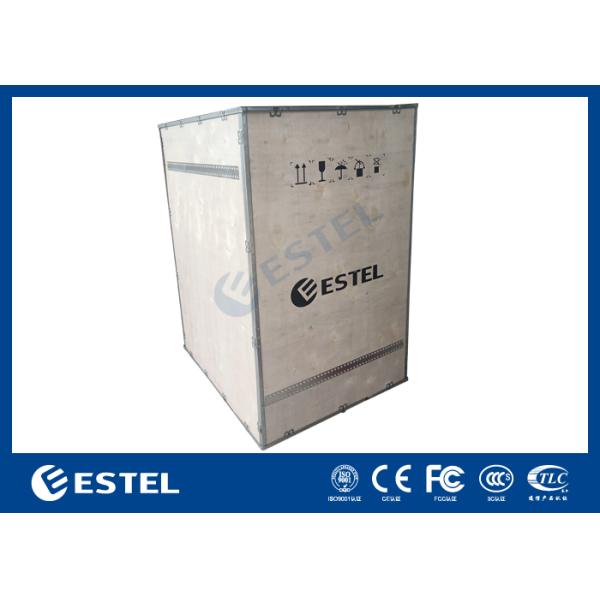

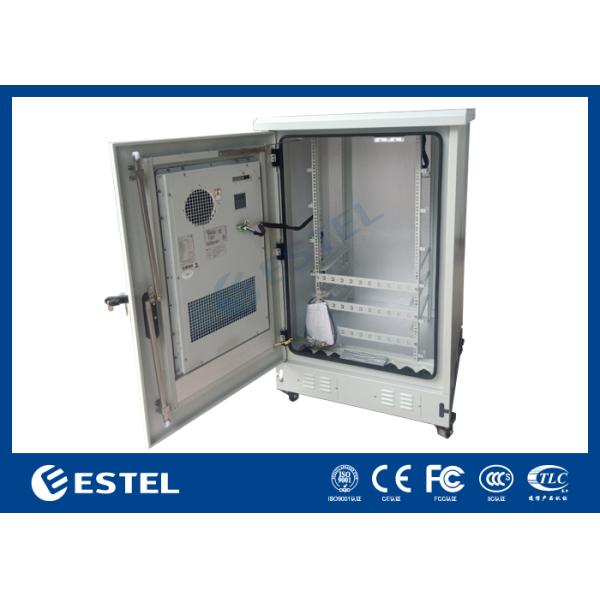

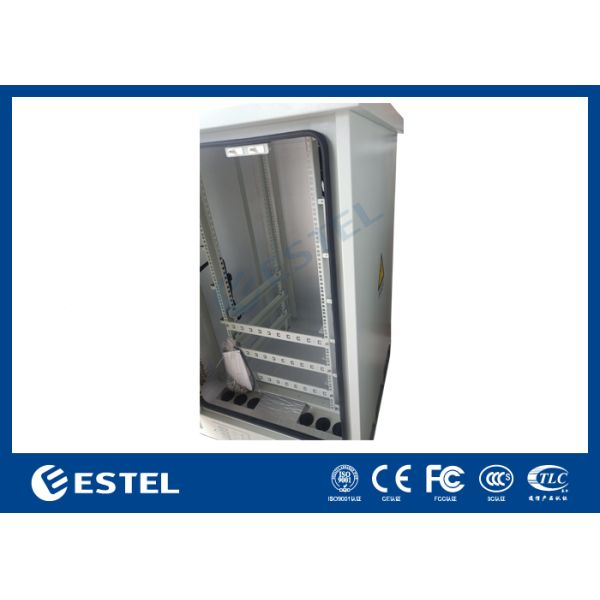

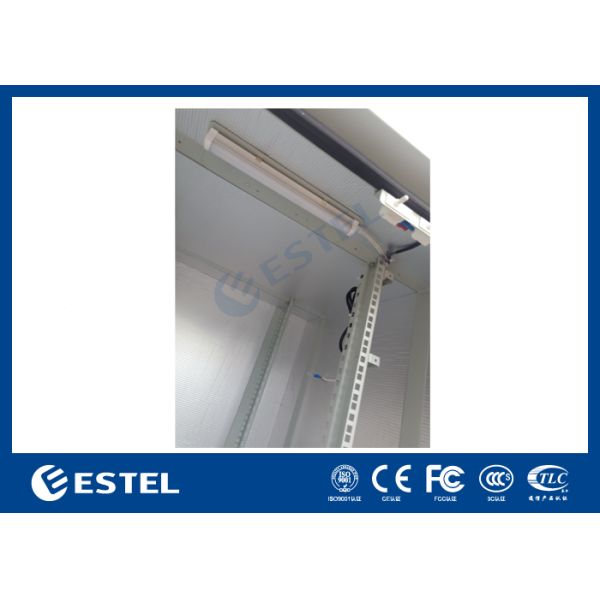

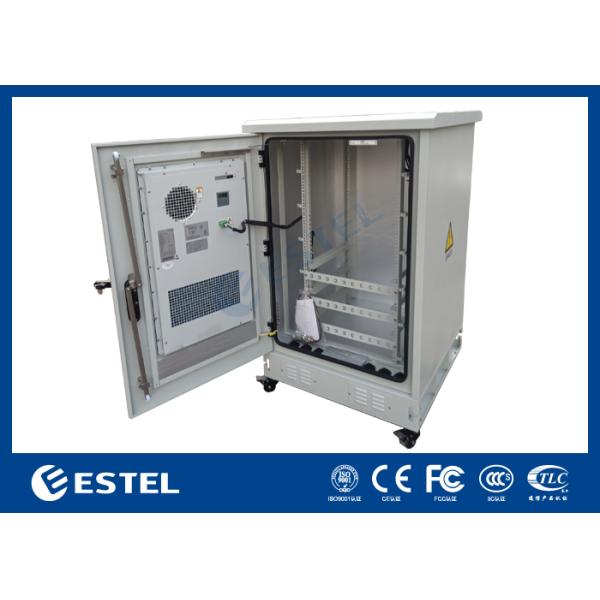

3. Cabinet With Air Conditioner Cooling Pictures:

ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels

ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels

ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels

ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels

ET8080130A-22U Outdoor Telecom Cabinet With Air Conditioner Cooling And Four Wheels

4. Outdoor Telecom Cabinet Applications:

The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, communication base stations, outdoor air detection stations, solar control cabinets,etc.
