Outdoor Integrated Cabinet With Battery And Power Distribution Unit With IP55 Protection Level

Technical Parameters for ET80130221-BA

1. ET80130221-BA Specifications:

An Outdoor Integrated Cabinet is a device that integrates a battery and a Power Distribution Unit (PDU) to provide power distribution and protection in an outdoor environment.

Main functions:
Battery: Provides power backup for the device to ensure that it can continue to operate for a period of time in the event of a power outage.
Power distribution unit (PDU) : distributes power from the power supply to devices or systems and provides overload protection and short circuit protection.

Features:
Waterproof and dustproof: Usually with IP55 or IP65 waterproof and dustproof grade, adapt to outdoor harsh environment.
Heat dissipation performance: Built-in aircon/fan or other heat dissipation device to ensure the normal operation of internal devices in high temperature environment.
Capacity: It can provide cabinets with various capacities, such as 18u, 22u, 27u, 32u, 42u, etc.
Customization: Can be customized according to user needs, including size, color, function, etc.

Accessories List

2. Feature

(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2) Cabinet cooling: air conditioner. MTBF≥50000h.

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

(5) The cabinet includes grounding bar

3. Applications

The ET80130221-BA Outdoor Power Cabinet is for holding telecom power system and batteries, mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

4. Dimension Diagram

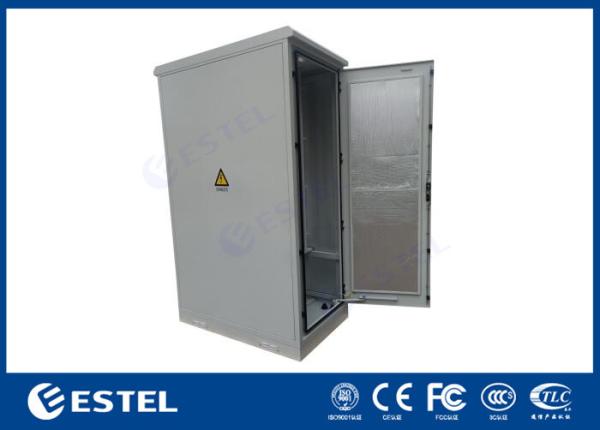

5. Cabinet pictures
