1U Rack-Mount Integrated DC Power System with Dual Rectifier Slots Monitoring Unit RS485/LAN Interface

Product Overview

This 1U high rack-mount integrated DC power system is designed for applications requiring compact, high-efficiency, and remotely monitored power delivery. It integrates power input terminals, dual rectifier slots, output ports, battery connection, monitoring interface, and signal IO in one chassis.

The unit is ideal for telecom base stations, small-scale data centers, and distributed energy cabinets. It ensures stable -48VDC output while supporting remote communication and flexible IO expansion.

Product Key Features

1U Compact Design

Fits standard 19-inch racks, only 1U high, perfect for space-constrained installations.

Dual Hot-Swap Rectifier Slots

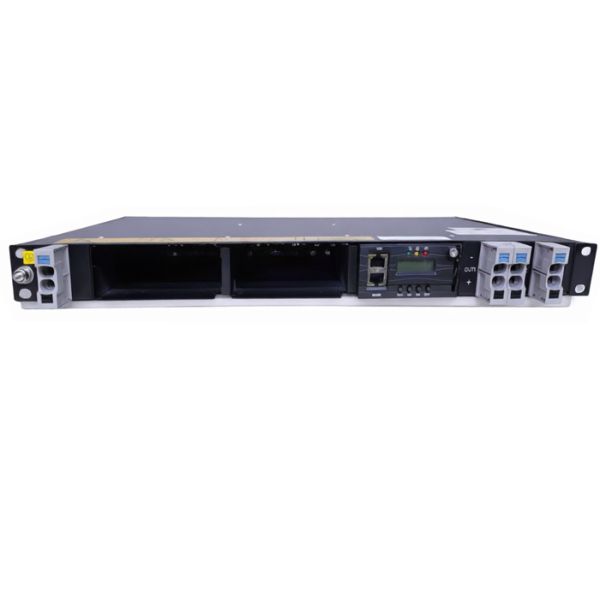

Accommodates two rectifier modules (one installed in photo), supporting redundancy or load expansion.

Integrated Monitoring Panel

Front-mounted LED display with buttons for system status, voltage/current display, and local configuration.

Multi-Protocol Communication

Equipped with LAN (Ethernet) and RS485 ports, supporting SNMP or Modbus for integration with NMS/BMS.

Multiple Output Connections

Front-side high-current DC output terminals (e.g., OUT1+, OUT1–) with plug-type connectors for reliable load connection.

Comprehensive IO Terminal Block

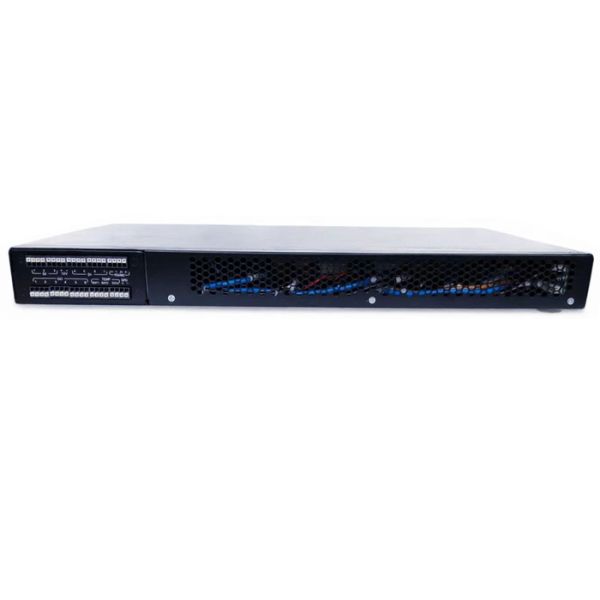

Rear-side terminal block with DI/DO, temperature sensor, battery voltage, and SPD (surge protection device) monitoring points.

Grounding and Safety Labels

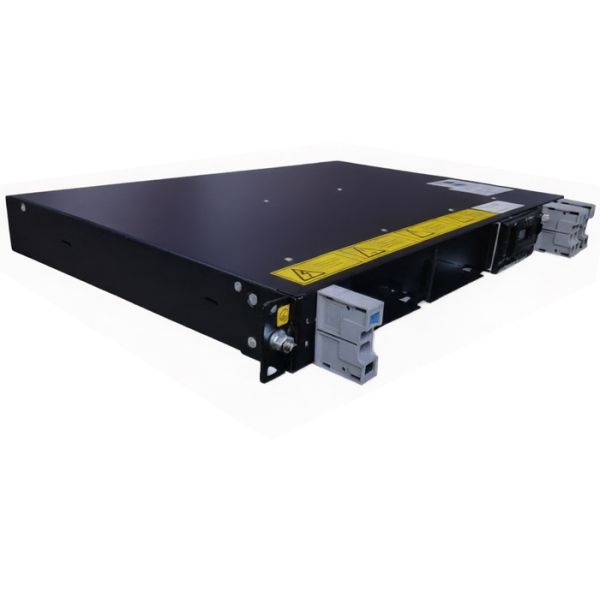

Clear high-voltage and grounding symbols for safety compliance and ease of field maintenance.

Product Advantages

Highly Integrated

Combines power conversion, control, monitoring, and protection into a single unit.

Remote and Local Monitoring

Can be accessed locally via LCD or remotely via RS485/LAN interface.

Easy Maintenance and Expansion

Plug-in rectifiers and front-facing connections allow fast installation and troubleshooting.

Flexible Deployment

Suitable for tower-mounted cabinets, outdoor 5G enclosures, or micro data center UPS systems.

Cost-Effective and Modular

Scalable with only one rectifier at first, then expanded to two when needed.

Technical Specifications

Application Scenarios

5G/4G Telecom Base Stations

Battery Backup System Control

Micro Data Centers

Industrial Network Edge Nodes

Smart Traffic Control Cabinets

Remote Monitoring Shelters

Conclusion

This 1U DC power system offers a compact yet powerful solution for reliable -48VDC power supply in demanding telecom and industrial environments. With integrated monitoring, modular rectifier support, and comprehensive IO, it is a future-ready solution for modern distributed power systems.
