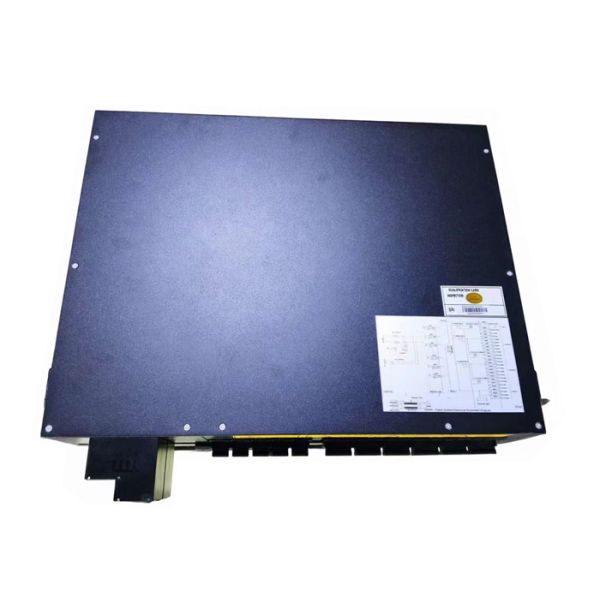

ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks
Specifications
Brand Name :
Telecom Rectifier Unit (TRU)
Model Number :
ET48150-M5H32
Certification :
CE UL FCC
Place of Origin :
China
MOQ :
100
Price :
USD300-USD1000
Payment Terms :
T/T, Western Union
Supply Ability :
5000
Delivery Time :
20~35
Packaging Details :
carton case
Design Life :
8-10 Years
Input Frequency :
45~65Hz, rated value: 50Hz/60Hz
Output Data :
24-125 VDC / 24-220 VDC
Battery Protection :
3-9 kW
Demension :
700×700×1900
Storage Temperature :
-40 to 70°C
Finish :
Anti-corrosion Powder Coating
Type :
Embedded Power Supply
Input Voltage Range :
228～475V
Internal Space :
19 inch, 2U
Port :
Ethernet
Cooling Method :
Forced air cooling
Nominal Capacity :
50AH
Installation :
Rack inside mounting
Description

ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks

Product Description:


The ET48150-M5H32 3-9kW Power System features a versatile 2U compact design, designed to provide reliable power for communication networks, wireless base stations, and transmission systems. With a wide input voltage range (90-300VAC) and high efficiency (>96%), it ensures smooth operation even under fluctuating power conditions. The system supports front-end operation and provides easy maintenance with hot-swappable rectifier modules and controllers. Remote monitoring via LAN, RS485, SNMP, and USB ensures that the system stays operational with minimal downtime. Ideal for use in mission-critical applications, this power system ensures stable and secure power delivery.

Key Features:

2U compact design, space-saving and easy installation

Intelligent remote monitoring and maintenance via LAN, RS485, SNMP, USB

Hot-swappable rectifier and controller modules for easy online maintenance

Wide input voltage range (90-300VAC), adaptable to diverse power grids

Perfect battery management for extended battery life

High efficiency (>96%) with forced cooling

Application Scenarios:

Wireless base station

Transmission network

Communication network of enterprises

Technical Specifications:

Specification System
Dimension 482.6(W) x 380.2(D) x 88(H) (2U)
Weight 15kg (without rectifiers)
Cooling mode Natural cooling
Installation mode 19-inch rack or inside the cabinet
AC Input 90-300VAC, Single-phase
Protection level IP20

Specification

 AC Distribution
Input capacity 63A/2P
Input voltage 220VAC, Single-phase
AC SPD 20kA, 40kA, 8/20μs
Output voltage -42~58VDC (Nominal: -53.5VDC)
Maximum capacity 9kW (3 x 3kW rectifiers)

Specification

 Rectifier
Rated power 3000W (176-300VAC)
Working temperature -40°C to +75°C (full load below 50°C)
Cooling mode Forced cooling
Dimension 106.5mm(W) x 286mm(D) x 41.5mm(H) (1U)

Specification

 Controller
Communication ports RS485, SNMP, USB
Display mode LCD
Operating temperature -40°C to +75°C
Storage temperature -40°C to +75°C
Humidity 5% to 95% (non-condensing)

ET48150M5H32 3-9kW High-Efficiency 2U Compact Power System for Communication Networks

Operating Guidelines:

Install the power system in a well-ventilated area to ensure optimal performance, especially under full load.

Utilize remote monitoring features for efficient management and to prevent system downtime.

Ensure proper cable connections for AC input and battery management for secure operation.

This system is ideal for deployment in high-demand, mission-critical environments where reliable power is essential.
