6U Telecom DC48V Integrated Rectifier Power System with Remote Control
6U Telecom DC48V Integrated Rectifier Power System with Remote Control
6U Telecom DC48V Integrated Rectifier Power System with Remote Control
6U Telecom DC48V Integrated Rectifier Power System with Remote Control
6U Telecom DC48V Integrated Rectifier Power System with Remote Control
6U Telecom DC48V Integrated Rectifier Power System with Remote Control
6U Telecom DC48V Integrated Rectifier Power System with Remote Control
6U Telecom DC48V Integrated Rectifier Power System with Remote Control
Specifications
Weight :
≤25kg（without rectifier module）
Input voltage :
AC380V, three phase
Efficiency :
96%
Output current :
10A,16A
Product name :
rectifier system,Telecom power supply,Telecom Power system
Size :
482.6mm*350mm*6U
Working temperature :
-40℃~+75℃
Mount :
19inch Rack Mounting
Color :
Black
Brand Name :
ESTEL
Model Number :
ET48400-M5E86B
Certification :
CE UL FCC
Place of Origin :
China
MOQ :
1
Price :
USD500-USD5000
Payment Terms :
T/T
Supply Ability :
5000set per month
Delivery Time :
25~35 days
Packaging Details :
wooden case
Output voltage :
DC48V
Rectifier module :
8*3000W
Material :
Aluminum Shell
Description

6U Telecom DC48V Integrated Rectifier Power System with Remote Control

Product Overview of 6U Telecom DC48V Integrated Rectifier Power System

Engineered for demanding telecommunications, data center, and industrial applications, the ET48400-M5E86B DC Rack Power System delivers resilient, high-capacity DC power. It accepts a 380VAC three-phase input, providing a stable, adjustable output from –43VDC to –58VDC (typically –53.5VDC) at a maximum capacity of 24kW and efficiency exceeding 96%.

The modular design supports N+1 redundancy with up to eight 3000W rectifier modules, each offering high-efficiency conversion with a power factor ≥0.99 and THDi ≤5%. Housed in a service-optimized 6U chassis with front access and top-panel cabling, the system simplifies installation and maintenance. Its DC distribution panel includes 4*100A/1P battery circuit breakers, scalable LLVD, and BLVD for flexible power management.

A dedicated controller with analog/digital inputs and configurable alarm relays, alongside RS232/485 and SNMP interfaces, provides comprehensive local and remote monitoring. Designed to operate reliably in extreme environments (–40℃ to +65℃, up to 95% RH, 3000m altitude), this system offers a robust and scalable power foundation for critical infrastructure.

System of 6U Telecom DC48V Integrated Rectifier Power System

  • Dimension: 482.0(W) × 350.0(D) × 6U(H)

  • Weight: ≤25kg (without rectifiers)

  • Cooling mode: Natural cooling

  • Installation mode: Installed on 19-inch rack or inside the cabinet

  • Cabling mode: Top inlet and top outlet

  • Maintenance mode: Front maintenance, support module grade change

  • Protection level: IP20

Environment of 6U Telecom DC48V Integrated Rectifier Power System

  • Operating temperature: –40℃ ~ +65℃ (full output below 50℃)

  • Storage temperature: –40℃ ~ +70℃

  • Operating humidity: 5% ~ 95% (non-condensing)

  • Altitude: 0 ~ 3000m (If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.)

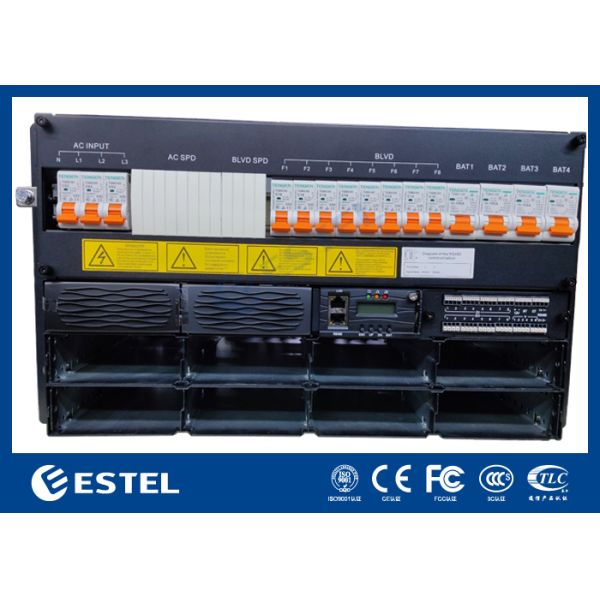

Power Distribution of 6U Telecom DC48V Integrated Rectifier Power System

AC
Distribution

Input mode

 Three-phase 380V 3*63A/1P+N
Input frequency 45~65Hz, rated value: 50Hz/60Hz
AC SPD 20kA/40kA, 8/20μs
DC
Distribution		 Output voltage -43~-58VDC, rated value: -53.5VDC
Maximum capacity 24kw(8*3kw, N+1 redundancy)
Battery breakers 4*100A/1P
Load breakers

LLVD*2: Used with distribution box

BLVD: 4*16A/1P+4*10A/1P
DC SPD 10kA/20kA, 8/20μs
Rectifier Input voltage 85VAC～300VAC, rated 220VAC
Efficiency >96%
Rated power 3000W(176~300VAC)
Working temperature -40℃~+75℃(fully output below 50℃)
Dimension 106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight ≤2kg
Cooling mode Forced cooling
Power factor ≥0.99
THD ≤5%
DC output –43 ~ –58VDC, rated –53.5VDC, maximum 55A
Controller Controller MC2600
Signal input 2 AI(3ambient temp, 1 humidity) ,8 DI
Alarm output 8 dry contact
RS485 Supported
SNMP Supported
Display mode LCD

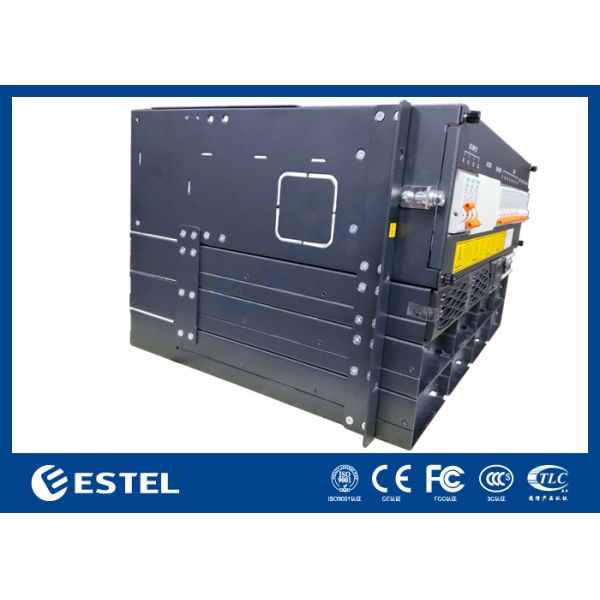

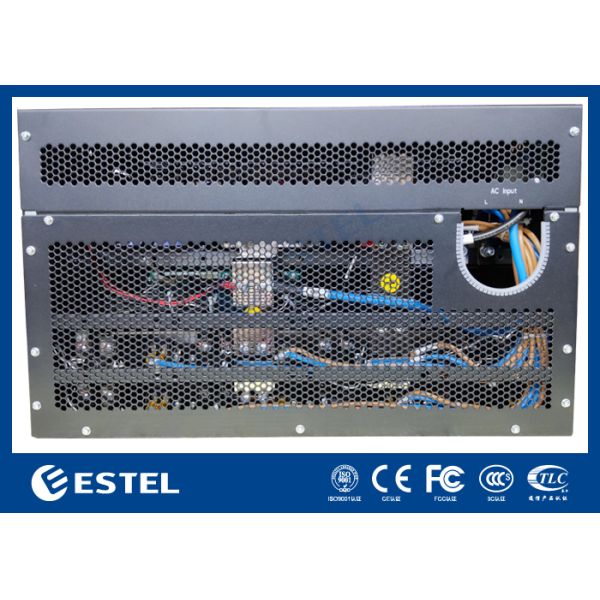

Structure of 6U Telecom DC48V Integrated Rectifier Power System

6U Telecom DC48V Integrated Rectifier Power System with Remote Control

6U Telecom DC48V Integrated Rectifier Power System with Remote Control

6U Telecom DC48V Integrated Rectifier Power System with Remote Control

6U Telecom DC48V Integrated Rectifier Power System with Remote Control
