Specifications
Brand Name :
ESTEL
Model Number :
ET7575200-38U-24kW
Certification :
CE UL FCC
Place of Origin :
China
MOQ :
1 Set
Price :
715-4286 usd
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
3000 sets per month
Delivery Time :
15-30 days
Packaging Details :
Wooden case
Cabinet dimension :
WxDxH=750*750*2000mm (Can be customized)
Material :
Galvanized sheet
Power size :
6U
Power capacity :
24kW
Rectifier module :
6pcs 4kW modules
Cooling :
1500W
IP grade :
IP65
Packaging :
Wooden case
Description


18kW Telecom Rectifier Power with IP65 Enclosure for Telecommunication Site

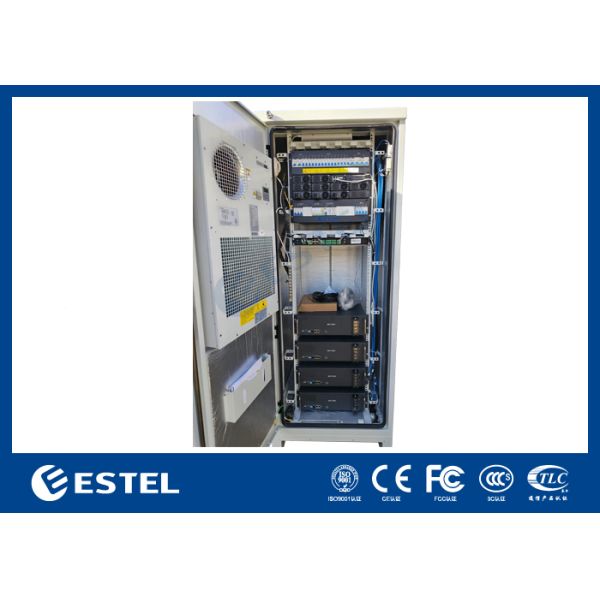

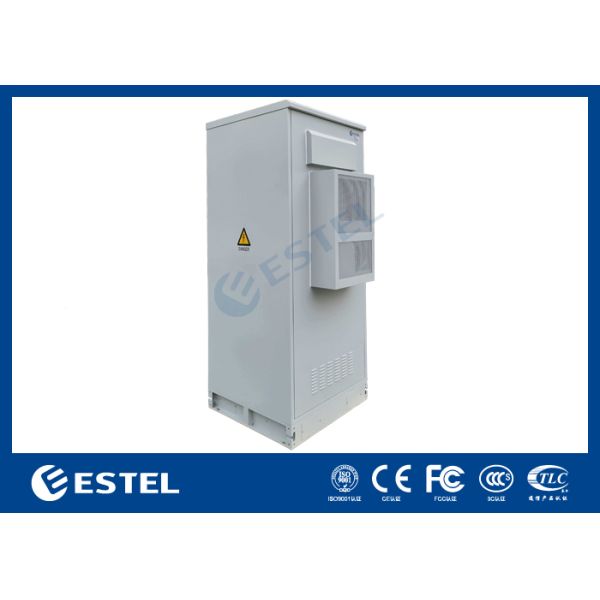

1. Introduction of 18kW Telecom Rectifier Power Cabinet

This 18kW power cabinet is design for outdoor use in telecom sites, it is designed with 38U space, with a 6U telecom power system, and 32U space is reserved for user’s telecom equipment and batteries.

This cabinet is designed and manufacturer by ESTEL at its factory. And this model has been proved with stable performance. And all the materials and components are telecom grade.

2. Application Scope

  • Wireless communication;
  • Broadband and network access;
  • Satellite communications ground station;
  • 3G/4G base station;
  • Telecom roadside cabinet;
  • Off grid or unstable grid areas;
3. Features of 18kW Telecom Rectifier Power Cabinet
  • IP65 sturdy enclosure, weather proof, anti-theft design;
  • 19'' rack based solution, compatible with most IT equipment;
  • Temperature controlled, energy efficiency, smart control;
  • Rectifier power efficiency >96%;
  • Module solts compatible with MPPT module;
  • Design life more than 10 years.
18kW Telecom Rectifier Power with IP65 Enclosure for Telecommunication Site
4. Technical Parameters of 18kW Telecom Rectifier Power Cabinet
Item Parameter
Model ET7575200-38U-24kW
Protection Level IP65
External Dimension 2000 (H) × 750 (W) × 750 (D) mm, including a base of 150mm high (cabinet dimensions can be customized)
Internal Space 19’’ standard rack, 38U
Material Quality galvanized steel sheet, single-wall structure:
Insulation With
Door One front door
Lock Anti-theft three-point lock
Hinge Inner hinge
Coating Polyester powder coating
Color RAL7035 (or according to client’s request)
Cable Routing Cable in and out from the bottom of cabinet
Installation Floor mounted, Wall-mounted
Air Conditioner 600W, -48VDC
Telecom Power System

(1) Power System Capacity: Max. 24kW (8× 3kW);

(Optional for solar system)

(2) AC Input: 220VAC, Single-phase;

- AC input MCB: 1× 63A/4P;

- AC SPD: 1× 20kA/40kA, 8/20μs;

(3) DC Output: -48VDC

- LLVD MCBs: 4× 63A/1P;

- BLVD MCBs: 2× 32A/1P, 4× 16A/1P;

- DC SPD: 1× 10kA/20kA, 8/20μs;

(4) Battery MCBs: 4× 125A/1P;

(5) With smart controller
5. How to Buy Customized Power Cabinet from ESTEL
ESTEL will receive client’s power system technical requirements, and work out a technical plan for client’s review. As ESTEL has more than 10 years experience in this area, also ESTEL’s power cabinet and solutions have been broadly well recognized by telecom operation area clients of various countries, the client may raise comments for the power cabinet design and configuration, after that a commonly agreed solution with technical drawings will be confirmed.
