48V90A 94% Compac DC Smart Power Supply Solution for Telecommunication Infrastructure
48V90A 94% Compac DC Smart Power Supply Solution for Telecommunication Infrastructure
48V90A 94% Compac DC Smart Power Supply Solution for Telecommunication Infrastructure
48V90A 94% Compac DC Smart Power Supply Solution for Telecommunication Infrastructure
Specifications
Brand Name :
ESTEL
Certification :
ISO9001, CE, 3C, FCC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
735-2864 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3,000 sets per month
Delivery Time :
25-30 working days
Packaging Details :
wooden case/carton
Size :
482mm*350mm*2U(W*D*H)
Weight :
≤11kg (without rectifiers)
Input Voltage :
220VAC single-phase
Output Voltage :
-48VDC (-42 to -58VDC)
Output Current :
90A(max)
Module Efficiency :
＞94%
Application :
Telecommunication, data center
Installation :
19-inch rack mount
Description

48V90A 94% Compac DC Smart Power Supply Solution for Telecommunication Data Center

Product Overview

The ET series rectifier is a DC48V90A power system operating at 48V, engineered to ensure reliable power distribution for telecommunications infrastructure, data centers, and industrial applications where uninterrupted operation is critical. It operates from a 220V AC single-phase input and delivers a tightly regulated DC output ranging from –43V DC to –58V DC, with a nominal value of –53.5V DC. Achieving over 94% conversion efficiency even under full load, this system is ideal for energy-efficient, high-density installations.

Designed for Continuous Operation with Modular Flexibility

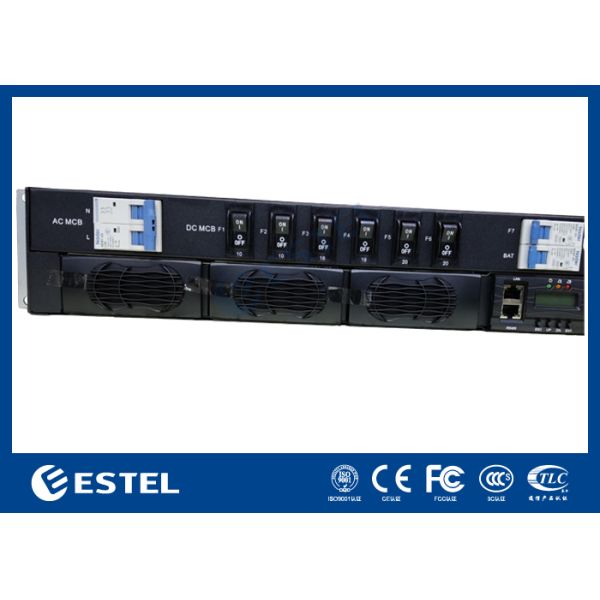

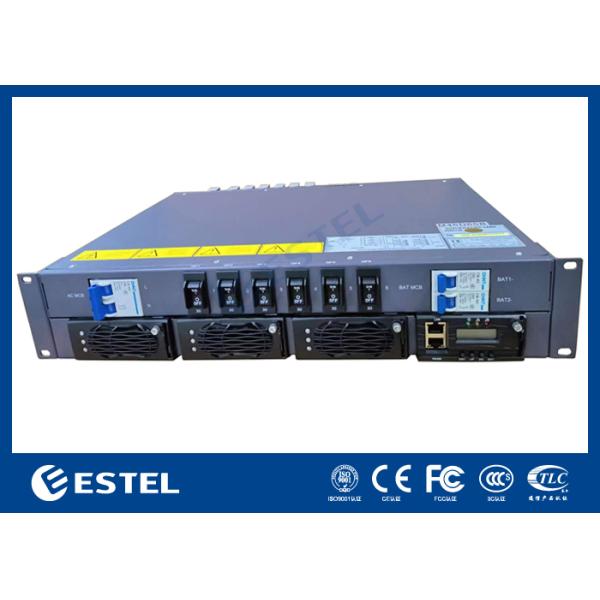

Engineered with redundancy in mind, the system supports up to three hot-swappable 1740W rectifier modules in an N+1 configuration. Each module weighs under 1.5 kg and utilizes forced-air cooling for consistent thermal management. With advanced power factor correction (≥0.99) and low total harmonic distortion (THDi ≤5%), it ensures clean output power while minimizing stress on upstream equipment. The unit is housed in a 2U, 19-inch rack-mountable chassis rated IP20, enabling front-access maintenance and convenient top-side cable routing.

Advanced Control and Load Management
The integrated distribution panel includes BLVD functionality to support flexible load prioritization. An intelligent onboard controller provides extensive monitoring and configuration capabilities through 2 ambient temperature sensor inputs, 8 digital inputs, and 2 programmable dry-contact relay outputs for alarm signaling. Remote management is enabled via RS485 and SNMP interfaces, while a inserted LCD screen facilitates local setup and real-time system monitoring.

Rugged Performance in Demanding Environments
Built to withstand extreme conditions, the rectifier delivers full performance without derating across an ambient temperature range of –40°C to +65°C and relative humidity from 5% to 95% (non-condensing). It also sustains full output power at altitudes up to 3000 meters. Combining space-efficient scalability, intelligent power management, and rugged durability, the ET series offers a future-ready DC power foundation for critical operations where reliability is paramount.

Specification

Type Telecom DC48V Power Distribution Unit
General Size 482mm*350mm*2U(Width*Depth*Height)
Weight ≤11kg (rectifiers excluded)
Cooling method Natural cooling
Installation method 19-inch rack-mounted

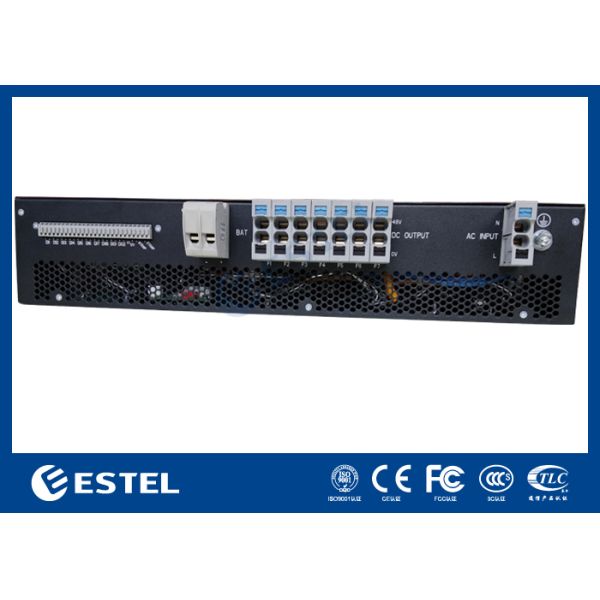

Cabling mode Inlet and outlet from the top
Maintenance mode From front side, support module grade change
Protection grade IP20
AC Input

Voltage

 Single-phase 220VAC
MCB 1 x 40A 2P
Frequency 45Hz to 65Hz, rated value: 50Hz/60Hz
DC
Distribution		 Output voltage -43~-58VDC, rated value: -53.5VDC

Output Current(max)

 90A

Battery breaker

 1 x 63A 1P
BLVD

2*10A/1P+2*16A/1P+2*20A/1P+1*40A/1P
Rectifier Module Input voltage 85VAC～300VAC, rated 220VAC
Efficiency >94%
Rated power 1740W(176~300VAC)
Working temperature -40℃~+75℃(fully output below 50℃)
Dimension 106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight ≤kg
Cooling mode Forced cooling
Power factor ≥0.99
THD ≤5%
DC output –43 ~ –58VDC, rated –53.5VDC, maximum 55A
Controller Signal input port 2 x AI(2 ambient temp) , 8 x DI
Alarm output port 2 x dry contact
Communication port RS485, SNMP
LCD Display Supported
Environment Operating
temperature		 -40℃ ~ +65℃ (full output below 50℃)
Storage temperature -40℃~+70℃
Operating humidity 5%~95%(non-condensing)
Altitude 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating
temperature decreases by 1℃ as the altitude increases by 200m.)
