Specifications
Plinth Height :
150mm
Package :
Wooden case
Delivery Time :
25-30 working days
Price :
676-2864 usd
Certification :
ISO9001, CE, 3C, FCC
MOQ :
1
Brand Name :
ESTEL
Supply Ability :
3,500 sets per month
Size :
1300*700*700mm(H*W*D)
Inner space :
21U 19 inch rack
Installation :
Floor mounted
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Material :
Galvanized sheet
IP Grade :
IP55
Packaging Details :
wooden case
Cooling Method :
Fan
Place of Origin :
Shenzhen, China (Mainland)
Description

21U Integrated Telecom Cabinet with DC48V 24kw Rectifier System LLVD BLVD

Product Overview of 24kw Rectifier System

The ET-series 21U telecom power cabinet is the ultimate solution for securing your network investment in any location. Built to withstand the elements with an IP55 rating and fortified with a high-strength anti-theft design (including a recessed door and three-point lock), this cabinet ensures your equipment remains safe from both nature and intruders.

Beyond robust physical protection, the ET-series delivers intelligent, high-efficiency power. Its advanced DC48V rectifier system converts three-phase 380V AC into stable -53.5V DC power at 24kW, achieving over 96% efficiency to drastically cut your energy bills. The integrated thermal management (air conditioner) and optional environment sensors (smoke, water, temperature) work in tandem with the remote monitoring controller to provide 24/7 oversight. This proactive intelligence maximizes equipment uptime, reduces on-site service calls, and lowers your total cost of ownership—all within a single, high-density enclosure that accommodates both your active telecom equipment and backup batteries.

Features of 24kw Rectifier System

● High protection grade: IP55

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● Adopt highly efficient cooling unit: air conditioner

● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.

● Support remote management, improve security and minimize customer’s operation cost

Specification of 24kw Rectifier System

Configuration Item Technical Parameter
Cabinet Mode 21U outdoor integrated cabinet
IP Grade IP55
Dimension H1300mm×W700mm×D700mm ( can be customized )
Plinth 150mm height
Internal Space 1*19 inch 21U
Material

Material: Galvanized sheet, single layer

Material thickness: 1.2mm,
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One left door, one right door, front maintenance
Cooling Fan 2*fan with thermal controller, 220VAC, 50Hz
DC Power Distribution

1*24kw DC48V rectifier system, 482.0(W)*350.0(D)*6U(H)

Input: 1*63A circuit breaker, three-phase 380VAC

Input frequency: 45-65hz, ralated value: 50/60hz

Output maximum capacity: 24kw(8*3kw, N+1 redundancy)

Output voltage: -43-58VDC, related value: 53.5VDC
LED Lamp 220VAC,50Hz
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters

Full Solution of 24kw Rectifier System

21U IP55 Integrated Telecom Cabinet with DC48V 24kw Rectifier System LLVD BLVD

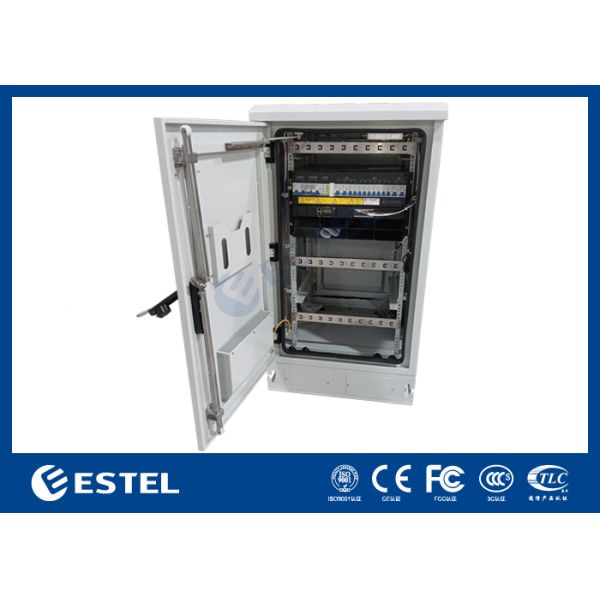

Front View of 24kw Rectifier System

21U IP55 Integrated Telecom Cabinet with DC48V 24kw Rectifier System LLVD BLVD

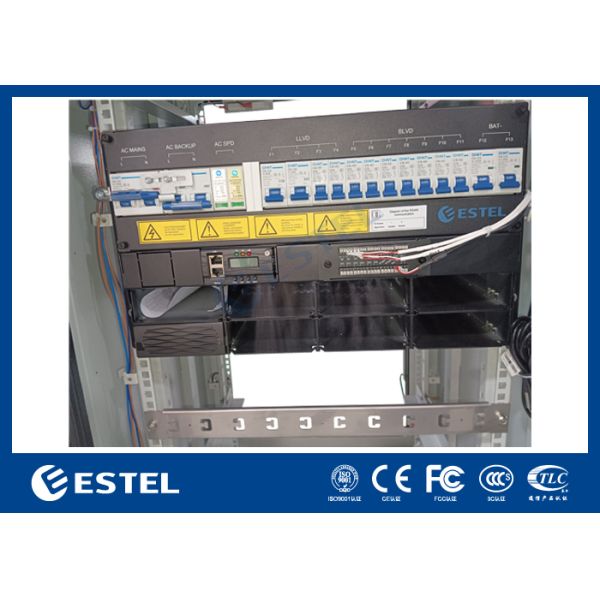

Structure of 24kw Rectifier System

21U IP55 Integrated Telecom Cabinet with DC48V 24kw Rectifier System LLVD BLVD

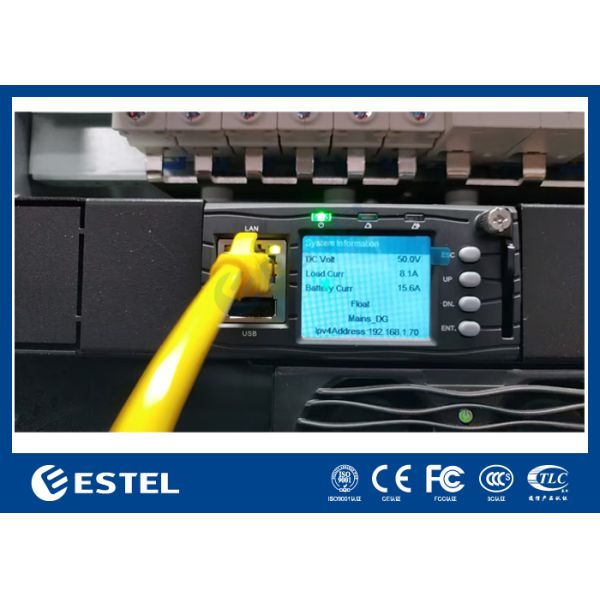

Working Stutas of 24kw Rectifier System

21U IP55 Integrated Telecom Cabinet with DC48V 24kw Rectifier System LLVD BLVD
