24U Outdoor Telecom Rectifier Cabinet with 18kw DC Power Distribution
24U Outdoor Telecom Rectifier Cabinet with 18kw DC Power Distribution
24U Outdoor Telecom Rectifier Cabinet with 18kw DC Power Distribution
24U Outdoor Telecom Rectifier Cabinet with 18kw DC Power Distribution
Specifications
Brand Name :
ESTEL
Certification :
ISO9001, CE, 3C, FCC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
651-2468 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
3,000 sets per month
Delivery Time :
25-30 working days
Packaging Details :
wooden case
Size :
1400*750*750mm(H*W*D)
Material :
1.2mm galvanized sheet
Space :
24U 19''
Door :
2 doors, front and rear
Cooling Method :
Air conditioner
IP Grade :
IP55
Installation :
Floor installation
Package :
Wooden case
Description

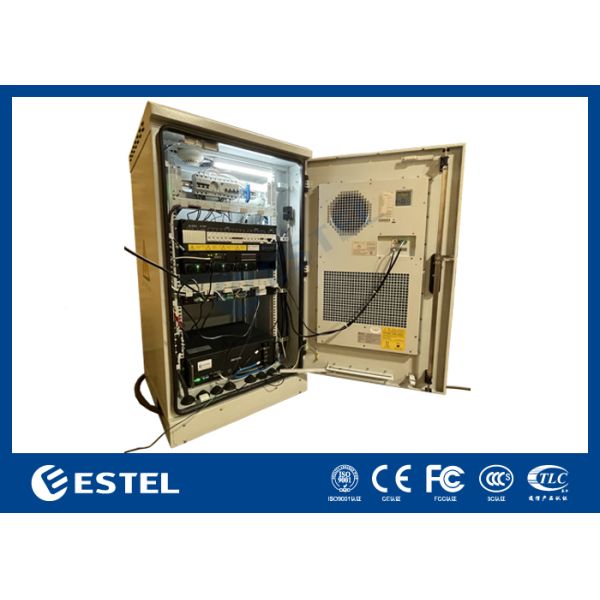

24U Outdoor Telecom Rectifier Cabinet with 18kw DC Power Distribution

Product Overview

The ET-series 24U telecom power cabinet is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. Lead-acid battery and 24U telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipment at the same time. With a DC48V rectifier system, the cabinet is able to provide 18kw power distribution for telecom equipment inside the cabinet and protection, while controller can monitor and management equipment situations and events online.

The cabinet Integrated provides a high-density, carrier-class power platform engineered to deliver uninterrupted DC power for telecommunications central offices, mid-to-large data centers, and industrial facilities. Operating from a three-phase 380V AC input (with no internal circuit breaker), it supplies a precisely regulated DC output adjustable between –43V and –58V, typically set at –53.5V. With a maximum output of 18kW, the unit achieves conversion efficiencies exceeding 96% across most of its operating range, significantly reducing energy consumption and the associated costs of cooling.

Features

● High protection grade: IP55

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● Adopt highly efficient cooling unit: air conditioner

● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.

● Support remote management, improve security and minimize customer’s operation cost

Specification

Configuration Item Technical Parameter
Cabinet Type Outdoor telecom cabinet
Protection Level IP55
External Dimension H1400mm×W750mm×D750mm ( can be customized )
Internal Space 1*19 inch 24U
Material

Material: Galvanized sheet, single layer, with 20mm PEF insulation

Material thickness: 1.2mm,

Load-bearing components and base thickness: 2.0mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One left door, one right door, front maintenance
Cooling Air Conditioner 220VAC, 50Hz, 1000W
FSU

Model: PM5000, 19" 1U

Sensors:

1* door sensor

1* smoke sensor

1* water sensor

1* temperature sensor
DC Power Distribution

1*18kw DC48V rectifier system, 5U

Maximum capacity: 18kw(6*3kw, N+1 redundancy)
Battery 1*DC48V 100AH lithium battery
LED Lamp 220VAC,50Hz, used for illumination in the cabinet
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
