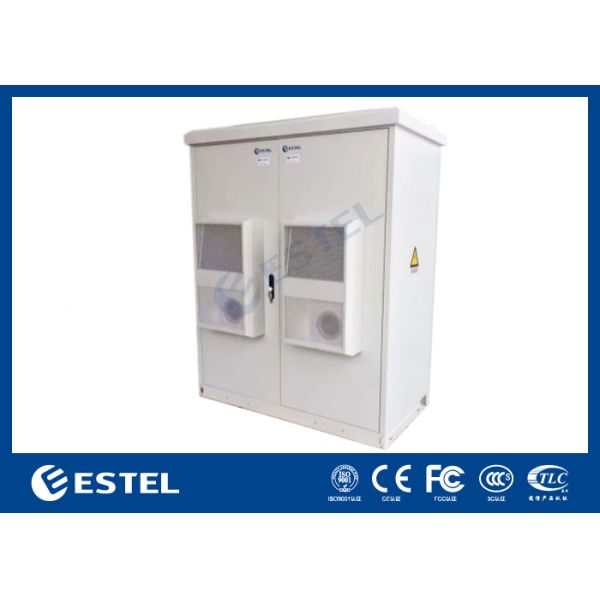

Outdoor Daul-cabinet 48U Telecom Cabinet with Power Distribution and Backup System

Product Overview

The ET Series Outdoor Daul-cabinet 48U Telecom Cabinet is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. Lead-acid battery and 48U telecom equipments can be accomodated inside the cabinet. The cabinet can provide power for active telecom equipments and passive telecom equipment at the same time.

DC Power Distribution
The cabinet integrates a 19-inch 3U rack-mount -48VDC Power Distribution Unit (PDU) featuring:

• 2 x 2P 32A circuit breakers

• 2 x 2P 16A circuit breakers

• 4 x 2P 10A circuit breakers

This configuration enables flexible and protected power distribution to multiple telecom loads.

Battery Backup and FSU
Dedicated space accommodates 4 trays for up to 16 x 48V lead-acid batteries, providing reliable backup power during mains failures. The cabinet also supports FSU (Field Supervision Unit) and sensors for real-time monitoring of internal temperature, humidity, door access, smoke sensor, water sensor and equipment status.

Versatile Equipment Housing
The cabinet offers ample space for concurrent installation of 19 inches standard equipment, noth active telecom equipment (switches, transmission devices) and passive telecom equipment (distribution frames, patch panels), and telecom power system, making it a complete outdoor solution for critical network nodes.

Built with corrosion-resistant materials and high IP-rated sealing, the cabinet ensures reliable operation of power systems and communications equipment in extreme outdoor environments.

Features

● High protection grade: IP65

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● Adopt highly efficient cooling unit: air conditioner

● Comprehensive protection optional: door sensor, smoke sensor, water sensor, temperature.

● Support remote management, improve security and minimize customer’s operation cost

Specification
