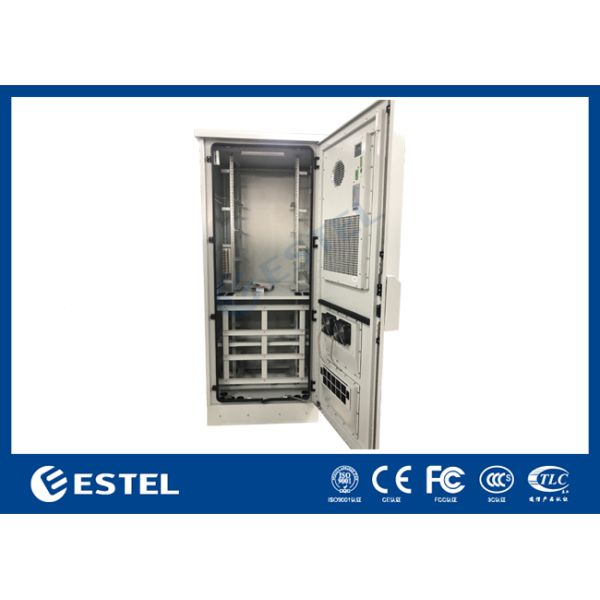

Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection
Specifications
Internal space :
19'' standard rack, 32U space
IP grade :
IP55
Cooling method :
Air conditioner or forced fan system
Packaging :
Wooden case
Material :
Galvanized sheet
Rectifier module :
Optional
Brand Name :
ESTEL
Model Number :
ET7575200A
Certification :
CE UL FCC
Place of Origin :
China
MOQ :
1 Set
Price :
715-4286 usd
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
3000 sets per month
Delivery Time :
15-30 days
Packaging Details :
Wooden case
Cabinet dimension :
WxDxH=750x750x2000mm (Can be customized)
Power system :
Optional
Description

Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection

1. Introduction

ET7575200A is an outdoor cabinet with functions of battery storage and power distribution, it also can installed with telecom power rectifier system and photovoltaic MPPT modules, which can be used in various outdoor telecom power supply scenarios. This cabinet provide flexible installation options for both Li-on batteries and lead-acid battery, and for lead-acid battery, user can choose anti-theft battery shelves.

2. Applications

This outdoor power cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, communication base stations, outdoor air detection stations, solar control cabinets,etc.

3. Cabinet Features

  • High protection grade: IP55
  • Strong anti-theft ability, with options for Li-ion batteries and lead-acid batteries.
  • Cooling system is installed on cabinet door, convenient for maintenance, cleaning and replacement
  • Support remote management, improve security and minimize customer’s operation cost

Telecom Power Cabinet and 32U Outdoor Battery Cabinet with Power Distribution Panel and Battery Anti-theft Protection

4. Rectifier Power System Features

  • Power system capacity: 18kW, 6 rectifier modules + 1 monitoring module;
  • Power system height: 5 rack units;
  • Rectifier module specification: 3kW;
  • Monitoring module: support SNMP;
  • Power distribution:

- LVD1: 2x80A, 2x63A;

- LVD2: 1x63A, 4x32A, 2x16A;

5. Cooling System Features

Door-mounted air conditioner or fans, based on client's equipment heat dissipation power and budget.

6. Technical Parameters

Configuration Item Technical Parameter
Cabinet Model ET7575200A-32U
Protection Level IP55
External Dimension HxWxD = 2000x750×750mm (Can be customized)
Internal Dimension 19 inch 32U
Material Galvanized steel, 1.2 mm thickness, single wall.
Thickness of bearing parts: 2.0 mm
Insulation 20mm PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door and one rear door
Cooling System Air conditioner Optional
Fan 2pcs fan with one fan controller
Input Voltage AC220V 60Hz
Door sensor Door sensor Yes
Temperature sensor Temper sensor Yes
Power System Rectifier + Solar

Rectifier system (Optional)

PV system (Optional)

Inverter (Optional)
Power distribution:
LVD1: 2*80A+2*63A
LVD2: 1*63A+4*32A+2*16A
LED Lamp LED lamp for illumination with switch, Voltage: AC220V, 60Hz.
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters
