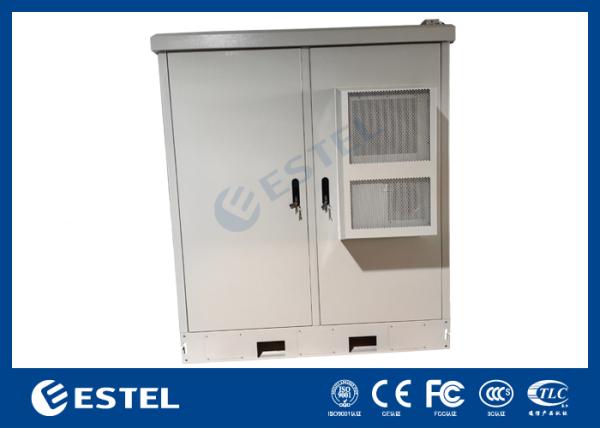

Outdoor Telecom Power System with Integrated Cabinet and Pure Battery Cabinet for Performance in Harsh Environments
Outdoor Telecom Power System with Integrated Cabinet and Pure Battery Cabinet for Performance in Harsh Environments
Outdoor Telecom Power System with Integrated Cabinet and Pure Battery Cabinet for Performance in Harsh Environments
Outdoor Telecom Power System with Integrated Cabinet and Pure Battery Cabinet for Performance in Harsh Environments
Outdoor Telecom Power System with Integrated Cabinet and Pure Battery Cabinet for Performance in Harsh Environments
Outdoor Telecom Power System with Integrated Cabinet and Pure Battery Cabinet for Performance in Harsh Environments
Specifications
Brand Name :
ESTEL
Model Number :
20209M-0002
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
358-2143 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
carton/wooden case
Cabinet external dimensions :
1600mm (W) * 1600mm (D) * 2200mm (H )
Base height :
150mm
Cabinet material :
1.5mm hot-dip galvanized sheet + 20mm PEF
Cabinet coating color :
RAL7035
Protection level :
IP55
Delivery form :
Fully packed delivery (wooden box)
Installation :
Floor mounting
Cooling :
1500W DC air conditioner
Description

1 integrated cabinet + 1 pure battery cabinet

Basic information of a single cabinet

Serial No Item Parameter
Cabinet external dimensions

1600mm (W) * 1600mm (D) * 2200mm (H ) (excluding brim and front and side protrusions)

Single -layer metal shell, suitable for outdoor environment
Base height 150mm​
Weight /
Cabinet material 1.5mm hot-dip galvanized sheet + 20mm PEF
Cabinet coating color RAL7035
Protection level IP55
Delivery form Fully packed delivery (wooden box)
Installation Floor mounting

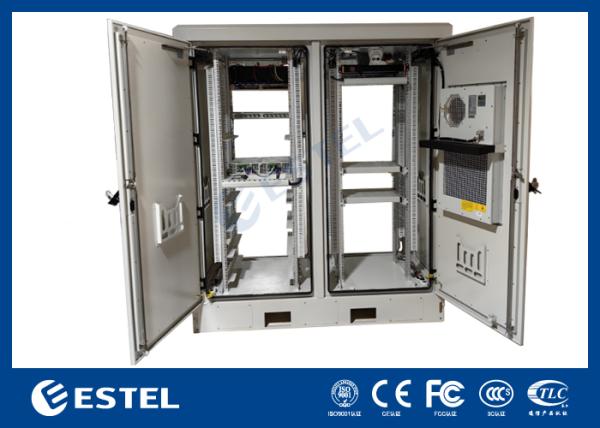

1 integrated cabinet

Serial No Part Name Specification Quantity Unit Remark
Base 1600*1600*150mm 1 pcs
Cabinet door Front and rear doors 4 pcs
Internal space 19-inch 4*42 U rack 1 pcs
Cooling 1500W DC air conditioner 2 pcs One is installed at the front door and the other is installed at the back door
Emergency fan -48VDC, 4 12038 fans, IP55 protection, with thermostat 1 pcs
Lock Three-point anti-theft linkage lock ( A7121-A112) 4 pcs
Document folder For placing A4 folders 2 pcs
Grounding copper busbar Cross-sectional area 60 mm², equipped with 6 M6 screws + 3 M8 screws 1 pcs
LED lights -48VDC,LED light+switch 4 pcs
power supply Photovoltaic 60kW + Rectifier 24KW 1 pcs
Battery LFELI-48200 , -48V 200Ah 12 pcs
Inverter 4KW, 1U 1 pcs
FSU PM5000 , including door sensors, smoke sensors, water sensors, temperature and humidity sensors 1 set
Cable entry Used for cable inlet and outlet 16 pcs Located at the bottom of the cabinet
Base sealing plate Base sealing plate and mounting screws 1 set Packaging accessories
Sealing cement Used to seal cable inlets and outlets 1 pcs Packaging accessories
Expansion bolts M12*120 SUS304 8 pcs Packaging accessories
Operating temperature -5 to 55°C
Operating humidity 5%~95%
altitude Sand/sandstone altitude maximum 3000m

1 battery cabinet configuration list

Serial No Part Name Specification quantity unit Remark
base 1600*1600*150mm 1 pcs
Cabinet door Front and rear doors 4 pcs
Internal Space 19-inch 4*42 U rack 1 pcs
Cooling 1500W DC air conditioner 2 pcs One is installed at the front door and the other is installed at the back door
Emergency fan -48VDC, 4 12038 fans, IP55 protection, with thermostat 1 pcs
Lock Three-point anti-theft linkage lock ( A7121-A112 4 pcs
Document Folder For placing A4 folders 2 pcs
Grounding copper busbar Cross-sectional area 60 mm², equipped with 6 M6 screws + 3 M8 screws 1 pcs
LED lights -48VDC,LED light+switch 4 pcs
Battery LFELI-48200 , -48V 200Ah twenty four pcs
Cable entry IEC 60529 certified cable glands for cabinet inlet and outlet 16 pcs Located at the bottom of the cabinet
Base sealing plate Base sealing plate and mounting screws 1 set Packaging accessories
Sealing cement Used to seal cable inlets and outlets 1 pcs Packaging accessories
Expansion bolts M12*120 SUS304 8 pcs Packaging accessories
Operating temperature -5 to 55°C
Operating humidity 5%~95%
Altitude Sand/sandstone altitude maximum 3000m

  • Power Supply Introduction
Product Model ET481000-M7E6X Photovoltaic 60 kW + Rectifier 24KW
System size /
weight /
Cooling method DC air conditioner
Installation 19-inch rack mount
Routing method Bottom in and top out
Maintenance method Front maintenance, support hot swap
Protection level IP20
AC power distribution Input Three-phase 380Vac, compatible with single-phase 220Vac
Input circuit breaker 1×63A/3P
Frequency 45~65Hz, rated value: 50Hz/60Hz
AC SPD 20kA/40kA, 8/20μs
Battery Battery type and specifications Lithium battery, 48V/200Ah
Battery pack 36 pieces, 6× (6× 48V/200Ah )
Nominal battery life 55.3h@5KW load@80% discharge depth
Maximum battery life 69.1h@5KW load@discharge depth 100%
DC power distribution Output -43~-58VDC, rated output: -53.5VDC
Maximum capacity Photovoltaic 60kW (3kW*20) + Rectifier 24kW (4kW*6) (final capacity is designed for 1000A)
Battery fuse 6×250A
Load circuit breaker LLVD: 3 × 63A/1P + 3 × 32A/1P + 3 × 20A/1P
BLVD: 2 × 32A/1P + 2 × 16A/1P + 2 × 10A/1P + 1 × 125A/2P (inverter)
DC SPD 10kA/20KA, 8/20μs
Rectifier module Input voltage 85VAC～300VAC, rated value: 220VAC
Efficiency ≥96.6%
Rated output power 4000W (176ac～300Vac)
Operating temperature -40℃~+75℃(less than 50℃ at full load output)
Size 106.5mm(W)×286mm(D)×41.5mm(1U/H)
Weight ≤2.1kg
Cooling method Forced air cooling
Power Factor ≥0.99 @220Vac 20-100% Load
Photovoltaic input power distribution Input 120Vdc ~ 420Vdc , rated value: 340Vdc
Input circuit breaker 20 × 25A/2P
DC input SPD 20 × (20kA/40kA, 8/20μs)
Solar panels Single board power 580W
Total quantity 108 pieces @ 18 × (6 × 580W, 6 strings)
Photovoltaic modules Input voltage 120Vdc ~ 425Vdc, rated value: 340Vdc
Efficiency 96%
Rated output power 3000W
Operating temperature -40℃~+75℃ (less than 50℃ at full load output)
Size 106.4mm(W)×285mm(D)×41.5mm(1U/H)
Weight ≤2kg
Cooling method Forced air cooling
MPPT accuracy ≥0.99
Inverter module Input voltage 42Vdc ~ 58Vdc, rated value: 53.5Vdc
Efficiency ≥9 3%@53.5V Input​​
Rated output power 2000VA /2000W @220Vac output
Output current Rated 9.09A (RMS) / Maximum 15A (RMS)
Cooling method Forced air cooling
Inverter subrack and output power distribution Size 482.6(W)*350.6(D)*1U(H)
Maximum capacity 6KW (3* 2KW )
Rated output voltage Nominal 220Vac
Load circuit breaker 1*32A/2P

Power monitoring

(MC2900)

 Signal input 3-way AI (2 battery temperature sensors, 1 ambient temperature sensor), 8-way DI
Alarm output 8-way dry contact output
Communication Port USB, RS485, SNMP
Display Mode LCD
Environment Operating temperature -40℃~+75℃(less than 50℃ at full load output)
Storage temperature -40℃~+70℃
Operating humidity 5%~95%
Altitude 0~3000m (When the altitude is between 3000m and 4000m, the maximum operating temperature decreases by 1°C with every 200m increase in altitude)
