Specifications
Brand Name :
ESTEL
Model Number :
EL215-APNRF
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
358-2143 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
carton/wooden case
System Rated Capacity :
215kWh
Battery Cluster Configuration Method :
1P15S
Rated Charge/Discharge Power :
100kW
DC Voltage Range :
672-864V
Grid Side Voltage Range :
AC400V±10%
Inverter Operating Mode :
Three-phase three-wire grid- connected operation
Description
Product Overview
Product Introduction

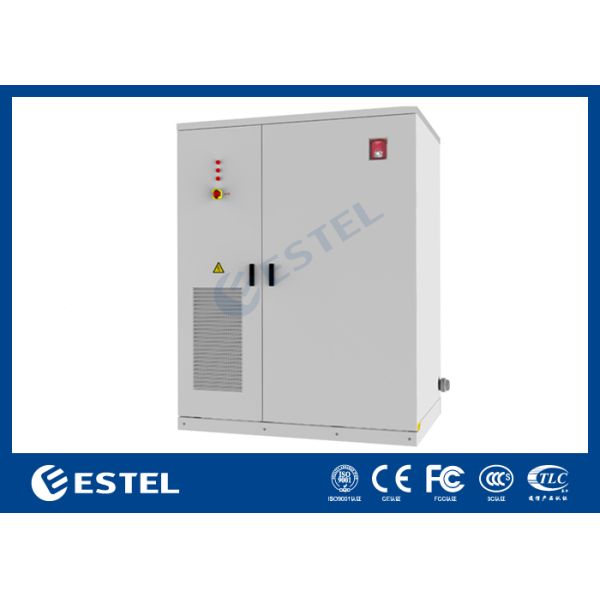

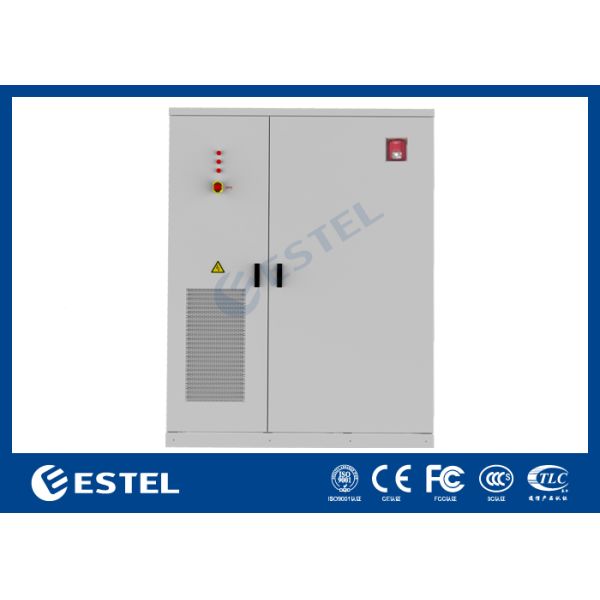

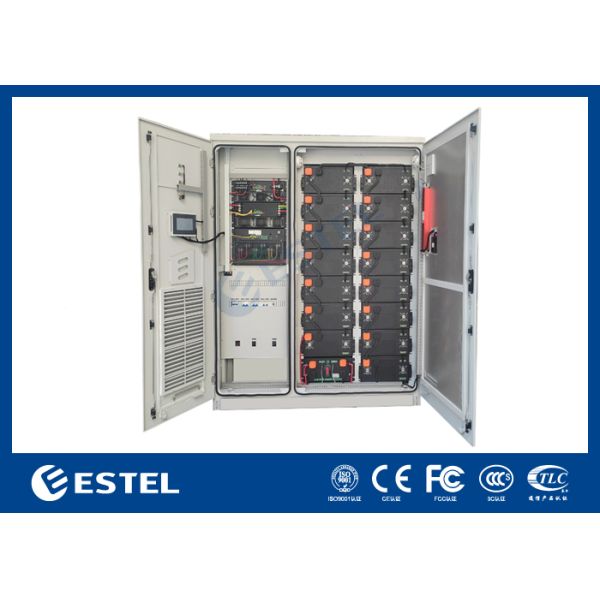

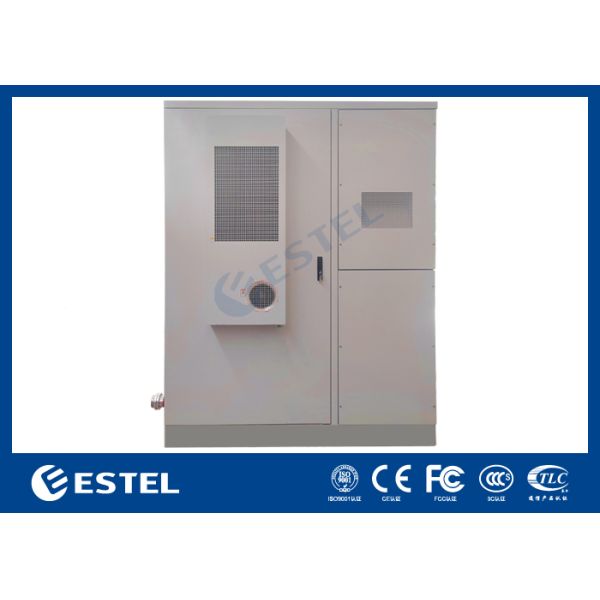

The company's 100kW/215kWh air-cooled energy storage cabinet adopts a 3.2V/280Ah lithium iron phosphate battery storage system. It has a wide
range of application scenarios on the power grid side, and the system can realize peak shaving, valley filling, demand management, emergency power supply and other functions. The system has the following advantages:
(1) Adopting an integrated design, single cluster management, solves the battery circulation problem and the bucket effect, greatly increases the
system safety and the discharge capacity throughout the life cycle;
(2) Highly integrated, further reduces system costs while simplifying the design;
(3) Realize diversified fire protection system: standard configuration composite gas detector, temperature-controlled aerosol and water fire extinguishing;
(4) Self-developed control and operation system: a set of software system
developed based on operation needs.
Main Technical Parameters

Table 1 Main Technical Parameters Table

NO: Item Description Specification Notes
1 System Rated Capacity 215kWh

2

Battery Cluster

Configuration Method

1P15S
3

Rated Charge/Discharge

Power

 100kW

Overload capacity:

110%
4 DC Voltage Range 672-864V
5 Grid Side Voltage Range AC400V±10%

6

Inverter Operating Mode

 Three-phase three-wire grid- connected operation
7 Operating Mode Grid-connected operation
8 System Efficiency ≥85%

AC side@25± 2℃

0.5P
9 Power Factor -1～1 Adjustable
10 Rated Charge/Discharge 0.5P
11

Storage Temperature

Range

 -30℃~60℃

12

Permitted Operating Temperature Range

 Discharge:-20~55℃ ; Charge:0~55℃

13

Best Operating

Temperature Range

 25±2℃
14 System Cycle Life ≥6000 t i m e s

@25±2℃ ,

0.5P,EOL≥80%
15 Relative Humidity RH ≤95% No condensation

16

Altitude

≤3000m

>3000m@90%

>4000m@8

0%Reduce rated

power
17 Protection Grade IP54
18

Cabinet Dimensions

(W*H*D)

Approx. 2100*2300*1200

( mm)
19 Weight Approx. 2850kg
20 External Communication Ethernet, wireless 4G
21 Protection Grade IP54
22 Anti-corrosion Grade Not less than C3
23 System Design Life ≥10 years

24

External Electrical Interface

AC input: three-phase four

wire+PE

AC output: three-phase

four wire+PE

Photovoltaic input: Two

channels

Note:

Need to connect the

N

phase from the grid

side to the N row in

the cabinet to provide

AC220V auxiliary

power for the cabinet
