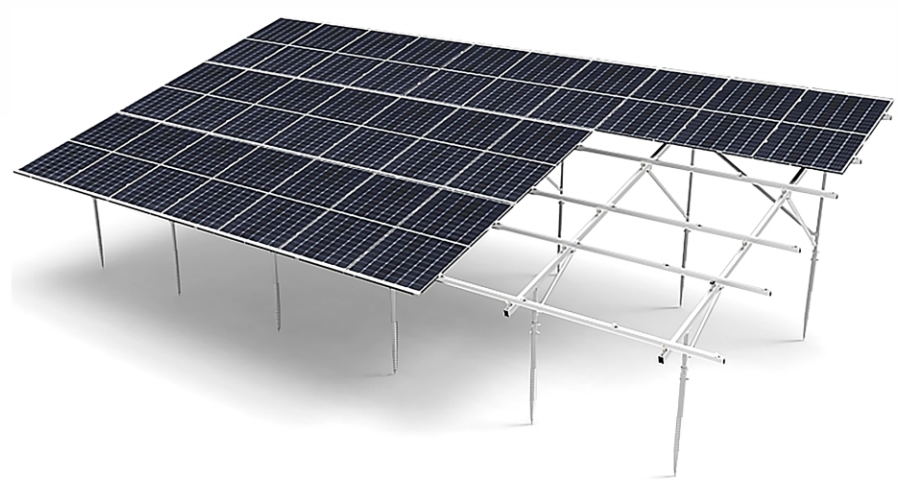

Ground-mounted Steel Structure for Solar Panels
Ground-mounted Steel Structure for Solar Panels
Ground-mounted Steel Structure for Solar Panels
Ground-mounted Steel Structure for Solar Panels
Ground-mounted Steel Structure for Solar Panels
Ground-mounted Steel Structure for Solar Panels
Specifications
Brand Name :
ESTEL
Model Number :
Q235B
Certification :
ISO9001, CE, 3C, FCC, TLC
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
358-2143 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20,000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
carton/wooden case
Installation Location :
Single pile: Flat ground, irregular terrain
Profile Material :
Q235B(hot-dipgalvanized)/S350GDzinc-aluminum-magnesium
Accessory Material :
Q235B(hot-dip galvanized)/S350GD zinc-aluminum-magnesium
Fastener Material :
Grade 8.8 (hot-dip galvanized)/ SUS304 stainless steel
Panel Layout :
According to design requirements
Wind Load :
60m/s
Description
Ground-mounted Steel Structure for Solar Panels
Introduction
The C-channel steel structure for solar panels is primarily suitable for ground-mounted solar
power stations, communication base stations with hybrid power system,and other similar
applications. This system offers strong wind resistance, cost-effectiveness,and can meet most
customer requirements.

Depending on different conditions, various solutions are available. The system is designed and
rigorously tested based on structural mechanics.The materials used are zinc-aluminum-
magnesium and hot-dip galvanized steel, both of which offer excellent corrosion resistance and
can last at least 25 years in outdoor environments.
Features
Optional Materials Zinc-aluminum-magnesium and hot-dip galvanized steel.
Sturdy Structure Strong resistance to corrosion.
Compatibility Compatible with both cement foundations and spiral ground piles,
optimized for different terrains,and suitable foruneven surfaces.
Minimal Installation Parts Pre-assembled components,saving construction time.
Customizable Adjustable tiltangle and ground clearance based on actual needs.

Technical Parameters

Installalion Location Single pile:Flat ground,irregularterrain
Double vertical posts:Flat ground,areas with large external loads
Profile Material Q235B(hot-dip galvanized)/S350GD zinc-aluminum-magnesium
Accessory Material Q235B(hot-dip galvanized)/S350GD zinc-aluminum-magnesium
Fastener Material Grade 8.8(hot-dip galvanized)/SUS304 stainless steel
Panel Layout According to design requirements
Wind Load 60m/s
Snow Load 3.6kN/m²
Applicable Modules Framed/framelessmodules
Module Layout Vertical/Horizontal
Installation Angle 0-45°
Warranty 10years
Service Life 25 years
