Specifications
Certification :
CE UL FCC
Output Power :
>500W
Payment Terms :
T/T, Western Union
Rectifeir Module :
241119.105
Delivery Time :
20-30days
Ac Frequency :
50Hz, 60Hz or last synced
Input Mode :
220/380VAC three-phase
Place of Origin :
China
Solar Mppt :
3pcs 3kW modules
Supply Ability :
5000
Communicate Ports :
RJ45, RS232, RS485
Voltage Range Ac :
185-275 / 95-140 V
Price :
USD300-USD1000
Packaging Details :
Wooden case
System Controller :
Smartpack R Intelligent Controller
Customizable :
Support
Nominal Capacity :
50AH
Brand Name :
ESTEL
Max Slots :
4 Pcs
MOQ :
1 SET
Lead Time :
8-10 Weeks
Description

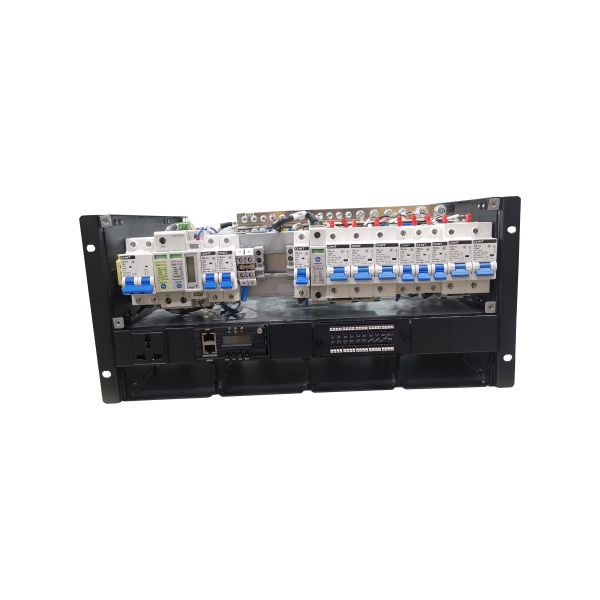

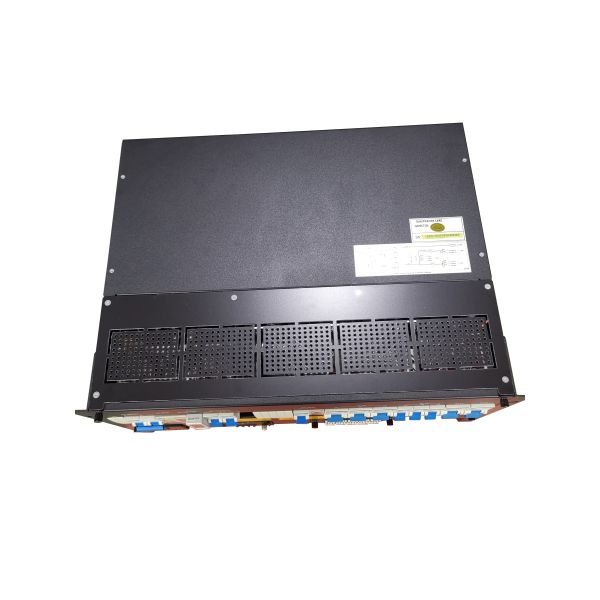

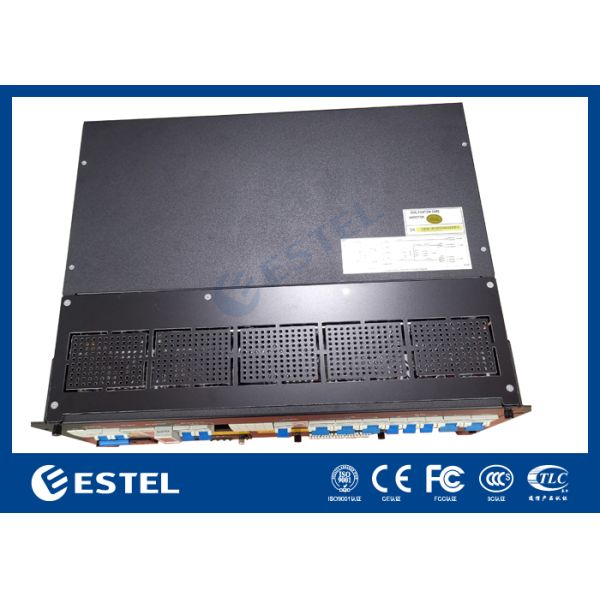

ET48450M7E65 24kW 5U -48V DC Power Platform for High Load Telecom Sites with 450A Output Distribution

The ET48450-M7E65 is a high-power -48V DC supply and distribution platform built for telecom sites where several power branches, battery strings and critical network devices must operate from one centralized system. With a 5U subrack structure and a maximum output capacity of 24kW, the system is suitable for sites that need higher power density than small 2U rectifier shelves, while still keeping installation and maintenance manageable inside standard telecom cabinets.

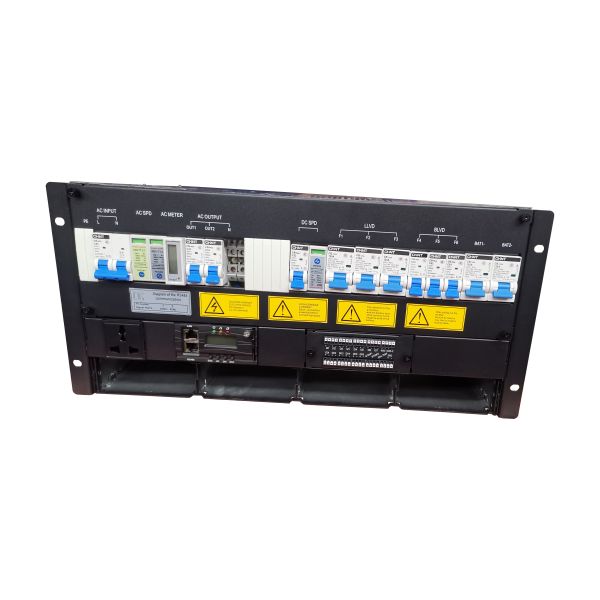

A key advantage of this model is its separated power zoning. The upper distribution area includes LLVD, BLVD and battery breakers, allowing different loads to be assigned according to priority. Critical transmission or communication equipment can be connected to BLVD branches, while secondary loads can be placed under LLVD control. This helps extend battery backup time and protects batteries from excessive discharge during long AC power interruptions.

The system is configured with four MR484000SG1 4kW rectifier modules, giving a total rated capacity of 24kW. The rectifier module supports 85–300VAC input, high conversion efficiency above 96.6%, and CAN communication with the monitoring unit. Each module is hot-swappable, so field replacement can be completed without shutting down the full DC power system.

For site management, the controller provides LCD display, dry-contact alarm outputs and communication interfaces including RS232/RS485 and SNMP. This allows integration with remote monitoring platforms for unattended stations, transmission rooms and enterprise network power systems.

Main Applications 24kW 5U -48V DC Power

Suitable for wireless base stations, telecom transmission rooms, microwave relay sites, fiber access networks, enterprise communication rooms, railway and expressway communication facilities, and centralized -48V DC backup systems.

Technical Specifications 24kW 5U -48V DC Power

Model: ET48450-M7E65

System Type: 4–24kW 5U subrack

Maximum Current: 450A

System Capacity: 24kW, 6 × 4kW

Dimensions: 482.0 × 350.6 × 5U

Weight: ≤25kg without rectifiers

Installation: 19-inch rack or cabinet

Cabling Mode: Top inlet and top outlet

AC Input: 380VAC three-phase

Input Breaker: 1 × 63A/4P

Input Frequency: 45–65Hz

AC SPD: 20kA/40kA, 8/20μs

DC Output Range: -43V to -58VDC

Rated DC Voltage: -53.5VDC

Battery Breakers: 2 × 125A/1P

LLVD: 2 × 125A/1P + 2 × 63A/1P + 2 × 32A/1P

BLVD: 2 × 63A/1P + 2 × 32A/1P + 2 × 16A/1P

DC SPD: 10kA, 8/20μs

Rectifier Module: MR484000SG1

Module Current: 75A rated, 81.3A peak

Operating Temperature: -40°C to +75°C

Humidity: 5%–95%, non-condensing

Protection Level: IP20

ET48450M7E65 24kW 5U -48V DC Power Platform for High Load Telecom Sites with 450A Output Distribution

ET48450M7E65 24kW 5U -48V DC Power Platform for High Load Telecom Sites with 450A Output Distribution

ET48450M7E65 24kW 5U -48V DC Power Platform for High Load Telecom Sites with 450A Output Distribution
