32U Outdoor Aluminum Cabinet, Dual Cooling Fans, LED Lights, 24 Port CAT6A Patch Panel, Cable Manager and Door Sensors

Product Description Outdoor Aluminum Cabinet with 32U Rack

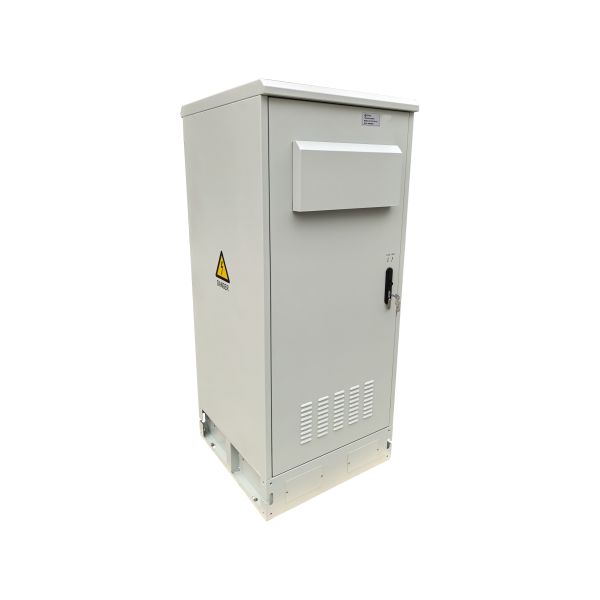

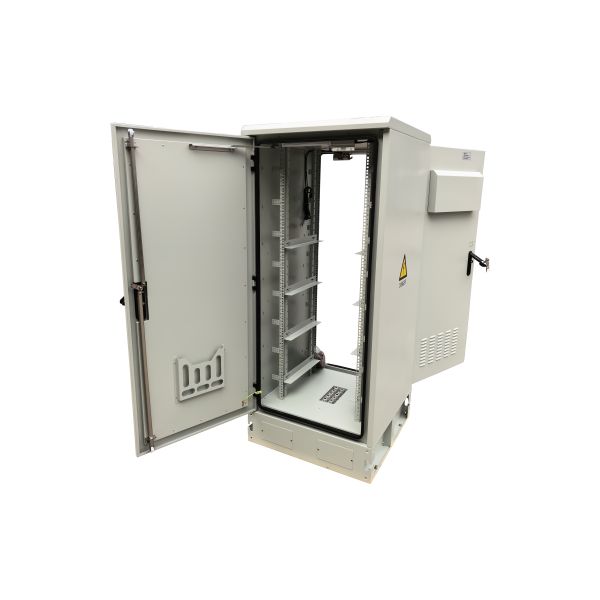

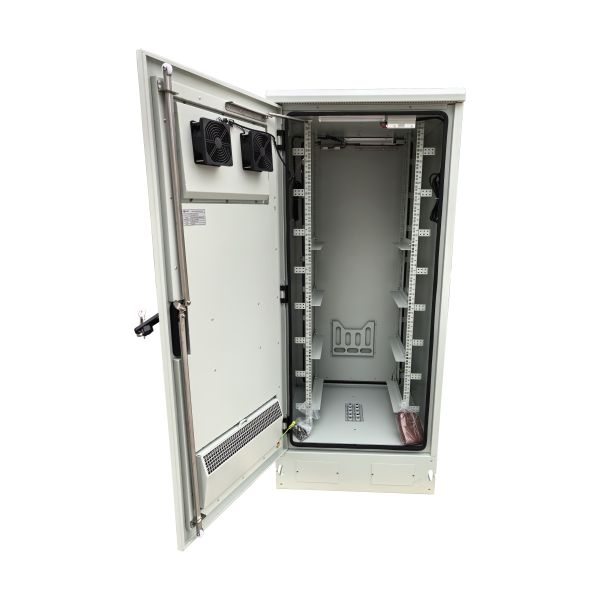

The Outdoor Aluminum Cabinet (1750×750×750 mm) is a high-reliability enclosure designed for protecting sensitive telecom and networking equipment in demanding outdoor environments. Built with a premium double-wall aluminum structure, it features a 2.0 mm outer shell and 1.0 mm inner panel filled with 20 mm PEF insulation, providing excellent thermal insulation, corrosion resistance, and mechanical strength. With an IP65 protection rating, the cabinet ensures stable operation of internal equipment against dust, rain, and environmental interference. The integrated 32U 19-inch rack space supports flexible installation of communication devices, patch panels, and power modules, making it suitable for modern edge and access network deployments.

Key Features Outdoor Aluminum Cabinet with 32U Rack
• Double-wall aluminum structure with 2.0 mm outer and 1.0 mm inner thickness
• 20 mm PEF insulation for improved thermal performance
• 32U standard 19-inch rack for equipment installation
• One front and one rear door with anti-theft three-point locking system

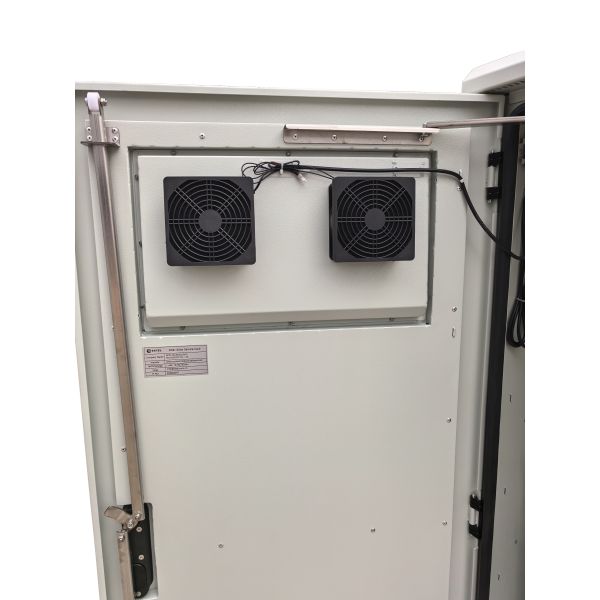

• Dual AC230V 50Hz cooling fans with temperature controller
• Integrated LED lighting system (AC230V, dual lamps)
• 1U 24-port CAT6A patch panel and horizontal cable manager (24-finger)
• Dual door sensors for access monitoring
• Bottom cable entry design (10 × 22.5 mm openings)

Technical Specifications Outdoor Aluminum Cabinet with 32U Rack
• External Dimensions: 1750(H) × 750(W) × 750(D) mm (including 200 mm plinth)
• Material: Aluminum double-wall structure
• Rack Capacity: 32U
• Protection Level: IP65
• Color: RAL 7035
• Installation: Floor-mounted design
• Power Supply: AC 230V, 50Hz (fans & lighting system)

Environmental Protection Outdoor Aluminum Cabinet with 32U Rack
• IP65-rated enclosure ensures resistance to dust and water ingress
• Aluminum alloy structure provides strong corrosion resistance for coastal and industrial areas
• Thermal insulation layer reduces internal temperature fluctuation
• Suitable for high-humidity, high-temperature, and outdoor exposed environments
• Stable performance in telecom roadside, rooftop, and remote site applications

Applications Outdoor Aluminum Cabinet with 32U Rack
Widely used in outdoor telecom base stations, fiber distribution networks, edge computing nodes, and communication infrastructure where secure housing, environmental protection, and structured cable management are required.
