Dual 48U Outdoor Integrated Cabinet, 1500W Air Conditioner, LED Light, Aerosol Fire Suppression System and Door Sensor

Product Description for Outdoor Integrated Cabinet with Dual 48U Rack

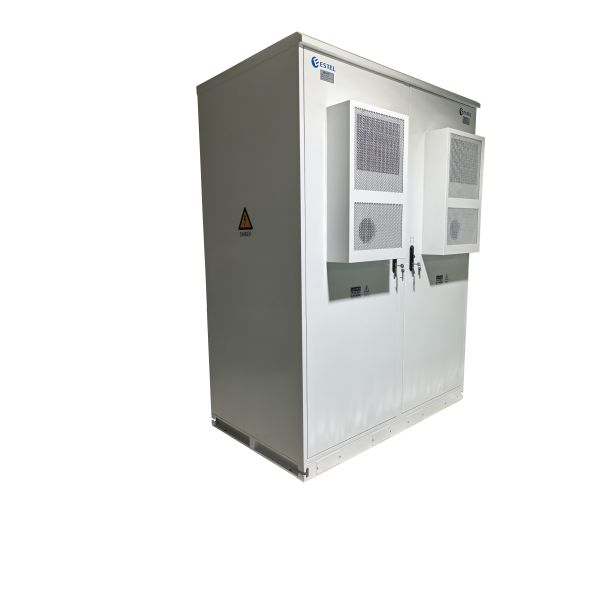

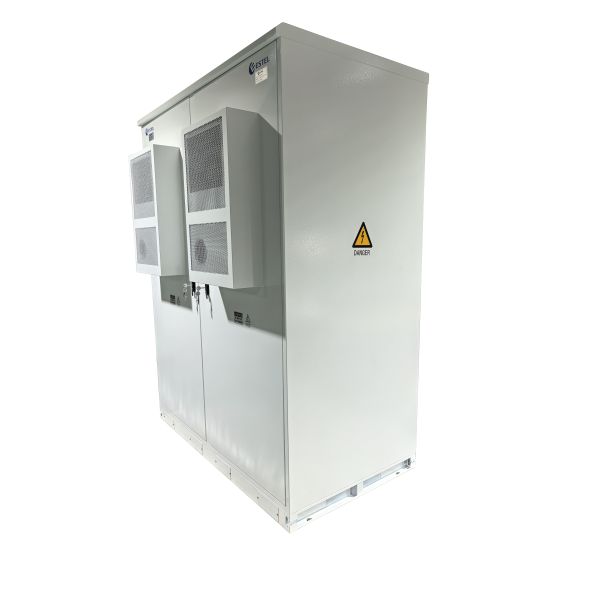

The Outdoor Integrated Cabinet (2350×1800×1000 mm) is a high-performance outdoor equipment enclosure designed to provide a secure, temperature-controlled, and weather-resistant environment for telecom, power, networking, and energy storage applications. Featuring dual 48U 19-inch equipment racks and a dedicated battery compartment with 16-layer battery trays, the cabinet offers ample installation space for communication equipment, power systems, batteries, and monitoring devices. Constructed from high-quality galvanized steel with thermal insulation, it ensures long-term durability and reliable operation in harsh outdoor conditions. The integrated 1500W air conditioner maintains stable internal temperatures, while the LED lighting, aerosol fire suppression system, and door sensor enhance operational safety and maintenance convenience.

Key Features for Outdoor Integrated Cabinet with Dual 48U Rack

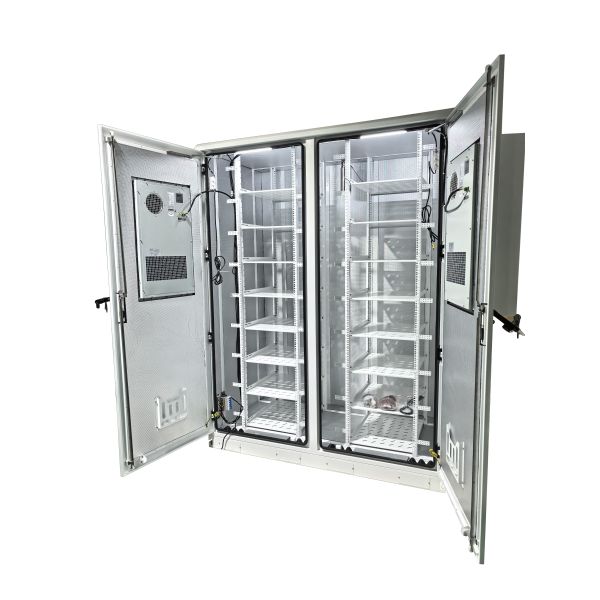

• Dual 48U 19-inch rack design for high-capacity equipment installation
• Dedicated battery compartment with 16-layer battery tray configuration

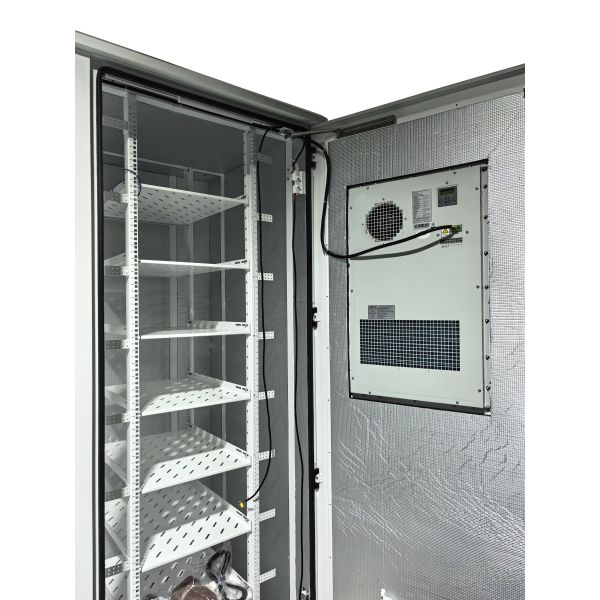

• 1500W industrial air conditioner for efficient temperature regulation
• Aerosol fire suppression system for automatic fire protection
• LED lighting with automatic activation when doors are opened
• Door sensor for access monitoring and security management
• 1.5 mm galvanized steel construction with 20 mm thermal insulation layer
• IP65-rated enclosure providing superior protection against dust and water
• Floor-mounted design suitable for outdoor deployment in various environments
• Corrosion-resistant powder-coated finish for extended service life

Technical Specifications for Outdoor Integrated Cabinet with Dual 48U Rack

• External Dimensions: 2350(H) × 1800(W) × 1000(D) mm (including 100 mm base)
• Rack Configuration: Dual 48U standard 19-inch racks
• Battery Capacity: 16-layer battery tray installation area
• Material: 1.5 mm galvanized steel sheet
• Insulation: 20 mm thermal insulation cotton
• Cooling System: 1500W air conditioner
• Power Supply: AC 220V, 50Hz
• Lighting: AC 220V LED lamp
• Fire Protection: Aerosol fire suppression system
• Monitoring Device: Door sensor
• Protection Level: IP65
• Surface Finish: Outdoor powder coating, RAL9003 Signal White
• Installation Method: Floor-mounted

Safety Features for Outdoor Integrated Cabinet with Dual 48U Rack

• Integrated aerosol fire suppression system for rapid fire response
• Door sensor for unauthorized access detection
• Insulated cabinet structure for enhanced equipment protection
• Lockable doors for improved site security
• Reliable environmental control to prevent overheating

Applications for Outdoor Integrated Cabinet with Dual 48U Rack

Ideal for telecom base stations, fiber optic communication networks, power distribution systems, renewable energy installations, battery energy storage systems (BESS), and other outdoor infrastructure requiring reliable equipment protection, environmental control, and operational safety.
