Specifications
Brand Name :
ESTEL
Model Number :
ET7575175-EQ4
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1800PCS per month
Delivery Time :
15 to 20 days
Packaging Details :
Wooden Case with Pallet
External Size :
1750mm×750mm×750mm(H×W×D)
Material :
Sandwich structure panel, galvanized steel, double wall with heat insulation
User space :
Standard 32U 19" rack
Surface :
Outdoor powder coating
Cooling :
AC220V 50Hz 1500W air conditioner and fan
IP Level :
IP55
Other accessory :
Power Distribution Unit
Price :
358-2143 usd
cabinet :
Outdoor telecom cabinet
Description

50Hz 1500W 32U 19 Inch Outdoor Equipment Cabinet IP55 Protection

IP55 Protection 32U 19 Inch Integrated Outdoor Telecom Cabinet Equipment Enclosure With 1500W Air Conditioner Monitoring

Summary
The outdoor telecom cabinet ET7575175-EQ4 has been designed to house sensitive electronic equipments for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, networking etc.
The construction of the cabinet consists of a dual skinned, thermally insulated chamber for maximum protection against solar gain and ambient temperature.
Feature of outdoor telecommunication cabinet
● Front door to access the inside equipment
● Anti corrosion powder coating
● Standard 19“ rack for installation
● IP55, waterproof, dustproof
● Cooling by air conditioner and emergency fan
● High integration, compact structure, easy installation and migration on later stage
● Anti-theft three point lock, excellent keyhole protection device
● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and shock sensor. Environmental monitoring system provides alarm
● -48VDC LED light is switched on during the door being opened
● Custom made power distribution unit
● Embedded hinge, no outer screws, avoid illegal enter
Advantage
1. Fexible, wide appliation, modular design, standard rack instalaion for easy capacity expansion.
2. Indvidual module temperaure control, electricity saving. adopt individual module temperaure control theory. reduce operating cost, provide passive and active temperature control methods for air conditioning system, indvidual temperature control for storage battery, ensure working environment
3. Higher integration and lower cost than conventional civil and assembly machine rooms, small occupaton, easy locaton, strong tolerance, supporting many kinds of devices integration.
4. Rapid deployment, increasing efficiency, integrated assembly in the factory or warehouse, easy transporting, or components delivery and installalon onsite, optimal structural design and simple installaion method.
5. Compared with conventional rooms, lower working amount and construction cost
Technical Parameters
Configuration Item Technical Parameter
Cabinet Body Model ET7575175-EQ4
Size

External Size: 1750mm×750mm×750mm(H×W×D)

Internal Space: 19” 32U.
Component The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted.
Material Sandwich structure panel, galvanized steel, double wall with heat insulation
Structure

(1) One front door

(2) Anti-theft three point lock(support padlock)

(3) Door stopper is installed on the inside of the cabinet door

(4) Door with good sealing, waterproof and dustproof

(5) Include standard 19“ rack inside the cabinet, high compatibility.

(6) Equipped with cable manager

(7) Cable inlets at the bottom of cabinet
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Light grey
Ingress Protection IP55
Working Temperature -40°C～+75°C
Cooling Method Air Conditioner

Cooling Capacity: 1.5KW

Power Supply: 220VAC, 50Hz
Fan -48VDC, temperature adjustable
Power Supply PDU

Grade B lightning proof;

AC Input: 63A/2PX1;

AC Output: 16A/1PX4;

DC Output: 16A/1PX4.

PDU can be custom made
Monitoring Environment Monitoring Unit

-48VDC

Communication port: SNMP
Smoke Sensor Monitor smoke status inside cabinet and provide real time alarm.
Shock Sensor Monitor vibration of cabinet and provide real time alarm.
Water Sensor Monitor water status inside cabinet and provide real time alarm.
Door Sensor Monitor door open status inside cabinet and provide real time alarm.
Temperature & Humidity Sensor Monitor temperature and humidity inside cabinet and provide real time alarm.
Other Illumination LED light, -48VDC

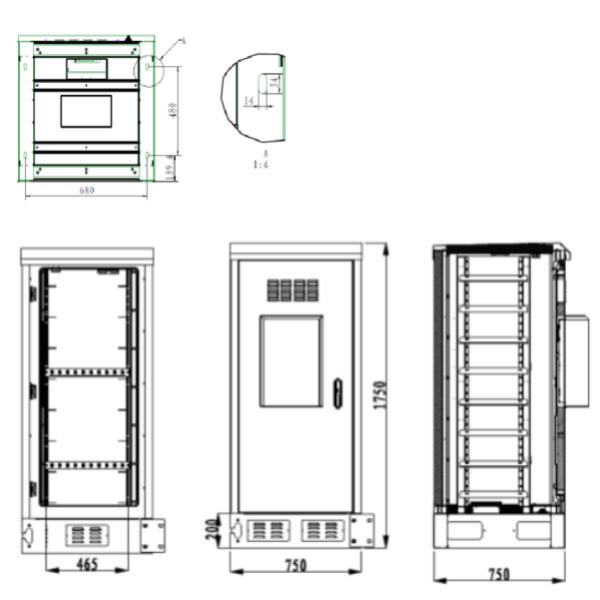

Cabinet Dimension

50Hz 1500W 32U 19 Inch Outdoor Equipment Cabinet IP55 Protection

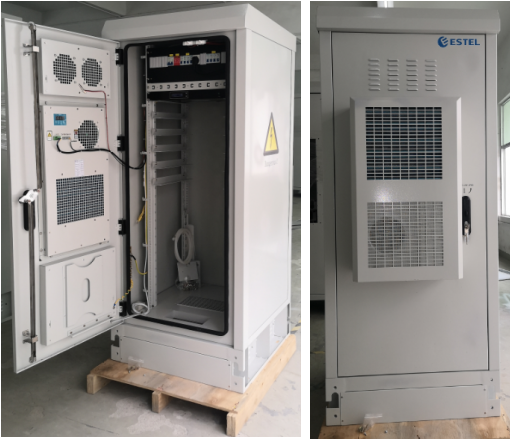

Cabinet Picture

50Hz 1500W 32U 19 Inch Outdoor Equipment Cabinet IP55 Protection

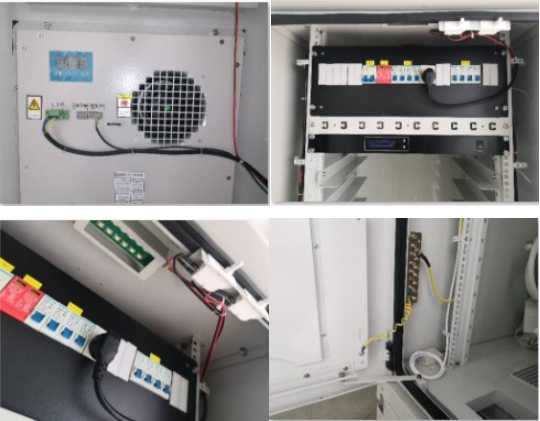

Outdoor cabinet details

50Hz 1500W 32U 19 Inch Outdoor Equipment Cabinet IP55 Protection
