Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
Specifications
Brand Name :
ESTEL
Model Number :
ET75751702EBF
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1800PCS per month
Delivery Time :
15 to 20 days
Packaging Details :
Wooden Case with Pallet
Dimension :
H1700mm×W750mm×D750mm
19 inch rack :
32U
Material :
Galvanized steel, 1.2mm thickness, single wall
Insulation :
PEF
Maintenance mode :
Front back access
Surface treatment :
Polyester powder coating, anti-corrosion
IP Level :
IP55
Cooling mode :
DC48V 2000W *2 + DC48V fan *3
Color :
Grey RAL7035 (support custom made)
Accessory :
19" rack mount, 9U 400A rectifier system
Description

Front Rear Access 32U 19 Rack Double Door Sheet Steel Powder Coated Air-Con Telecom Outdoor Cabinet

Introduction

ET75751702EBF is a telecom cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.

Feature of Oudoor Cabinet

● High protection grade: IP55

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● The door mounted air conditioning system is convenient for maintenance, cleaning and replacement

● Access control, smoke, water immersion, temperature and other comprehensive protection

● Support remote management function, improve security and minimize customer operation cost

Application

The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.

Technical Parameters

Configuration Item Technical Parameter
Cabinet Model ET75751702EBF
Protection Level IP55
External Dimension H1700mm×W750mm×D750mm
Internal Space

32U 19" space: the upper space is for installing rectiffier system, the

lower part is for installing battery
Material

Galvanized steel, 1.2mm thickness, single wall.

Thickness of bearing parts: 2.0mm
Insulation PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Mode Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door and one back door, front and back maintenance
Cooling Air Conditioner DC48V 2000W *2
Fan DC48V fan *3
Sensors Door sensor *2 , water sensor*1, temperature and humidity sensor *1, smoke sensor*1
Rectifier System

19" rack mount, 9U

AC input: 85Vac~300Vac, three phase (single phase compatible)

Input frequency: 45~66Hz, rated value : 50Hz 60Hz

DC output:-43Vdc~-58Vdc

50A rectifier module*8 (400A)

monitoring module*1, support RS232/485, SNMP communication

Signal input: 3 analog inputs and 8 switching inputs

Signal output: 6-way dry contact

Power distribution:

AC input: 63A/4P×1, SPD 40KA

AC output: 32A/1P×1,16A/1P×2

DC output: 100A/2P×2, 63A/1P×5, 32A/1P×5, 16A/1P×10
Illumination 48VDC LED lamp with lamp switch *2
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters

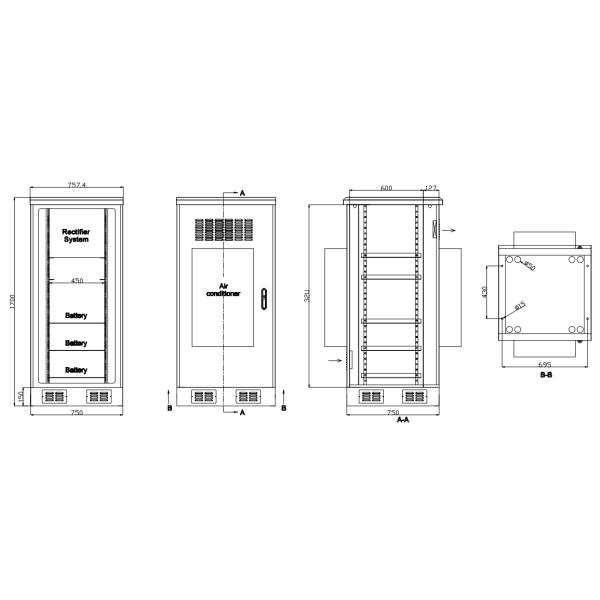

Cabinet Drawing

Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door

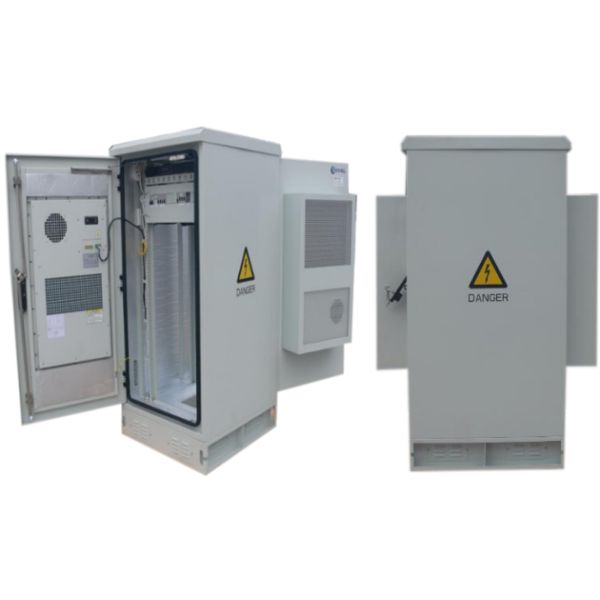

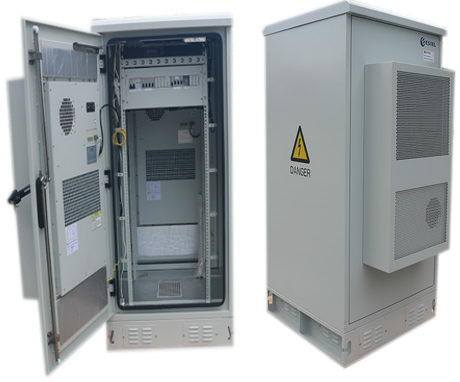

Cabinet Pictures

Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door

Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door

Our Qualified Certificate

Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door

Our Factory Show

Powder Coated Telecom Outdoor Cabinet 32U 19'' Rack Double Steel Sheet Door
