Fan Cooling Outdoor Telecom Cabinet Galvanized Steel With Standard 19 Racking Rail
Fan Cooling Outdoor Telecom Cabinet Galvanized Steel With Standard 19 Racking Rail
Fan Cooling Outdoor Telecom Cabinet Galvanized Steel With Standard 19 Racking Rail
Fan Cooling Outdoor Telecom Cabinet Galvanized Steel With Standard 19 Racking Rail
Specifications
Brand Name :
ESTEL
Model Number :
131060616050001
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
5,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Cabinet lock :
Anti-theft three point lock(support padlock)
Cooling system :
Fans
Protection level :
IP55
External size :
600mm×600mm×1600mm(H×W×D)
Material :
Galvanized steel, 1.5mm thick, insulation: 20mmPEF
Package :
Wooden case with pallets
Description

IP55 Fan Cooling Outdoor Equipment Cabinets With 19" Racking Rail

1. Product Application

  • Provides a secure, climate controlled environment for any electronic equipment.
  • Telecommunications
  • Wireless/Broadband
  • Fiber Optics
  • Backhaul
  • Base Station
  • Small Cell/DAS
  • Utility
  • Military
  • Trailer-based Communications
  • Wi-Fi
  • Flexible and Scalable

2．Product Features

  • Heavy duty outdoor construction
  • Standard 19” rack rail
  • Front access
  • Anti-theft three-point locking system, support padlock
  • Outdoor powder coating, anti-corrosion
  • Standard Color: light grey, RAL7035. Custom color available
  • Cable inlet at cabinet bottom
  • Include grounding bar
  • Include door stopper
  • Optional cooling solutions: fan ventilation, air conditioner, heat exchanger

3. Cabinet Specification

Configuration Item Technical Parameter
Cabinet Body Material Galvanized steel, double walls, with thermal insulation.

External Dimension

(include plinth)

 600mm(W)×600mm(D)×1600mm(H)
Maintenance Front operation & maintenance
Security Lock Anti-theft three-point locking system, support padlock
Protection Level IP55
Installation Floor mounted
Surface Treatment Outdoor polyester powder coating
Color Light grey RAL7035 coating or custom made
Cooling Method Compressor Air Conditioner Optional
Heat Exchanger Optional
TEC Air Conditioner Optional
Fan DC48V,include fan temperature controller
Environment Operating Temperature -40°C～+55°C
Storage & Transport Temperature -40°C～+70°C
Operating Humidity 5%~100%
Others Lighting -48VDC LED
Sensors (Optional) Smoke sensor, water sensor, door sensor, temperature&humidity sensor

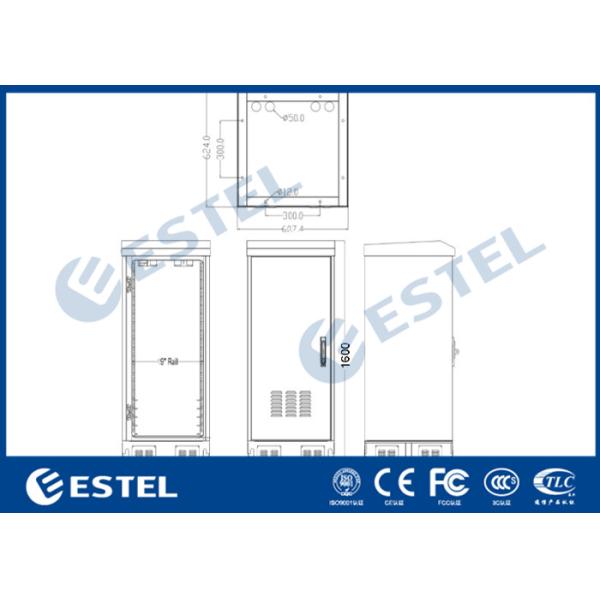

4. Cabinet Dimensions

Fan Cooling Outdoor Telecom Cabinet Galvanized Steel With Standard 19

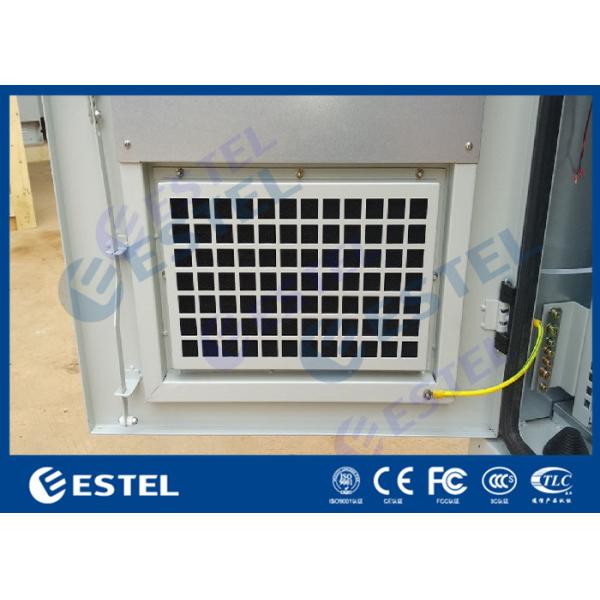

5. Fans

Fan Cooling Outdoor Telecom Cabinet Galvanized Steel With Standard 19

6. Filter Holes

Fan Cooling Outdoor Telecom Cabinet Galvanized Steel With Standard 19
