Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
Specifications
Brand Name :
ESTEL
Model Number :
ET9090210-UP5
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1800PCS per month
Delivery Time :
15 to 20 days
Packaging Details :
Wooden Case with Pallet
Size :
W×D×H 900×900×2100mm
User space :
20U standard 19" rack and 2 layers battery shelf
Material :
Galvanized steel, single wall with heat insulation
Surface :
Outdoor powder coating, anti-corrosion
Cooling :
AC110V, 60Hz 1500W TEC air conditioner
Door lock :
Outdoor anti-theft three point lock
IP Level :
IP55
Wooden case :
W×D×H 900×1050×2000mm
Cable Inlet :
On the bottom
Price :
358-2143 usd
cabinet :
Outdoor telecom cabinet
Description

Integrated Steel Powder Coating Outdoor Telecom Cabinet With Air Conditioner Cooling

1. Introduction of outdoor telecom cabinet

Outdoor telecom cabinet ET9090210-UP5 includes 20U 19 inch rack and two layer battery shelf. User can place their 19” equipment, rectifier system and battery. The material is galvanized steel panel, its structure is more robust. Cooling use air conditioner with good cooling effect.

2. Applications

Our cabinet is widely used in outdoor communication industry. The cabinet can be equipped with various communication equipment, rectifier system/UPS/inverter, environment monitoring unit, battery, ODF etc. Suitable for use in streets, building tops, mountain tops, urban, rural, residential areas and other areas.

3. Technical sheet of outdoor cabinet

Model ET9090210-UP5
External Size W×D×H 900×900×2100mm
Equipment Install Method Standard 20U 19” rack and 2 layer battery shelf
Door Only one front door
Lock Anti-theft three point lock, specially for outdoor cabinet(support padlock)
Material Galvanized steel, single wall with heat insulation
Cabinet Installation method Floor mounted, including floor mount accessories.

Cable Inlet

 On the bottom
Lifting Ear 4 ears on the cabinet base
Earthing Grounding copper bar
Working Temperature -40°C～+75°C
Ingress Protection IP55
Relative Humidity 5% ~ 100%
Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Solar Radiation Intensity 1120 ×(1±5%)W/m2
Cooling

(1) Air Conditioner Cooling Capacity: 1500W; Power Supply: AC110V, 60Hz

(2) Fan Two DC48V fans with one temperature controller

Power

Distribution

Unit

Grade B Lightning Proof

AC Input: 63A/2P ×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4.

Height: 4U
LED Lamp Power Supply: DC48V, with one lamp switch
4. Feature
  • Standard 19 inch mounting posts.comply with IEC60297.
  • IP55 ingress protection, waterproof, dustproof.
  • Front door use standard three-point lock with high anti-theft effect.
  • Galvanized steel, single wall with heat insulation.
  • Cooling: using air conditioner and fans.
  • The inlet hole adopts sealing rubber ring, or PG gland head or others can be used according to the requirements of customers.

5. Advantage

  • The cabinet structure have earthquake resistance function
  • Outdoor cabinet is strong and durable, internal layout is reasonable, greatly reducing the construction cost
  • Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
  • Integration: the outdoor cabinet of communication base station integrates UPS power supply, power distribution, refrigeration, access control, cabinet, lighting, fire protection, dynamic environment monitoring, emergency ventilation and other systems. Through the monitoring system, the overall management of all subsystems is realized, so as to create an integrated product and simplify the design, procurement and construction process.

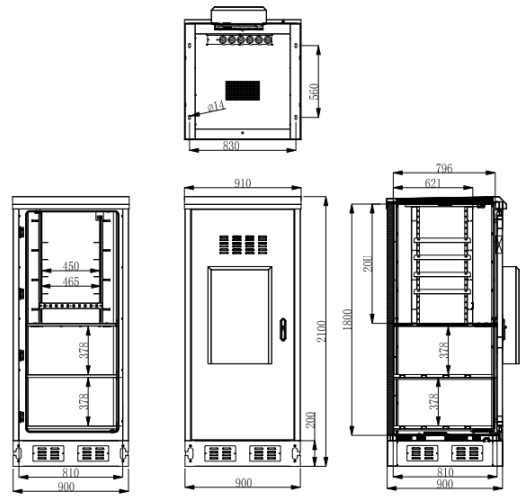

6. Size Drawing

Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling

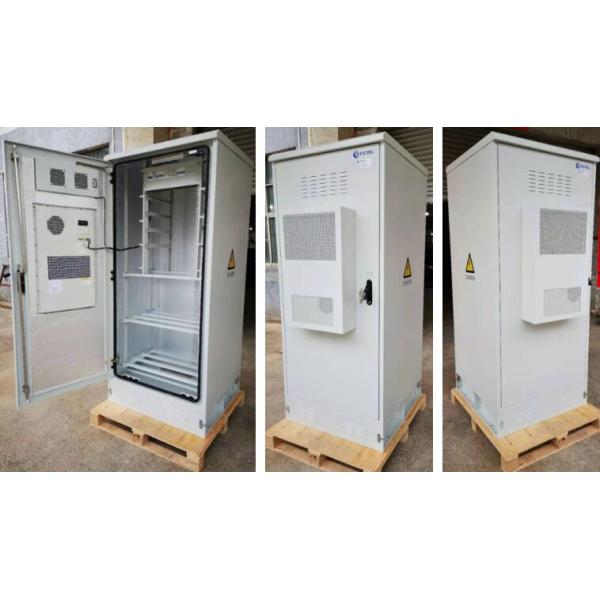

7. Cabinet details display

Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling

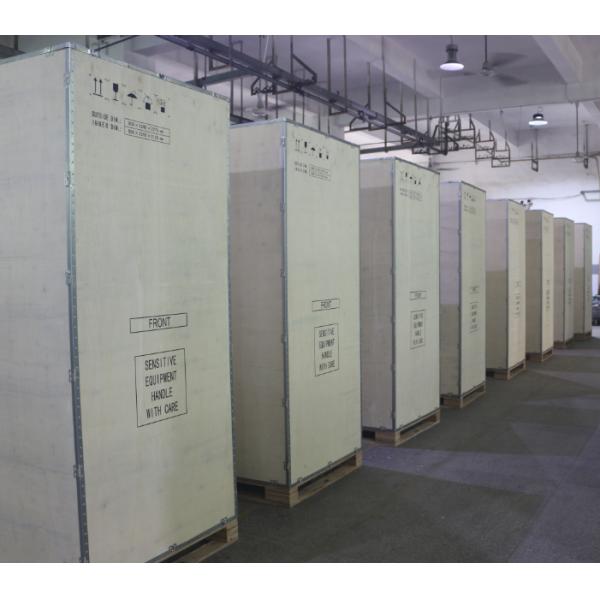

8. Package

Cabinet package use free fumigation plywood which suitable for export. This kind of packaging has good cushioning performance, high strength, good moisture absorption performance, moisture-proof, fresh-keeping and earthquake resistance.

Integrated Steel Powder Coating Outdoor Telecom Cabinets With Air Conditioner Cooling
