Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Specifications
Brand Name :
ESTEL
Model Number :
131090917050001
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
358-2143 usd
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
5,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
External size :
W× D×H 900 ×900 ×1700mm
Cabinet Lock :
Anti-theft three point lock(support padlock)
Cable Inlets :
From cabinet bottom
Mounting type :
Floor mount
Cooling system :
Air conditioner and fans
Protection Level :
IP55
cabinet :
Outdoor telecom cabinet
Description

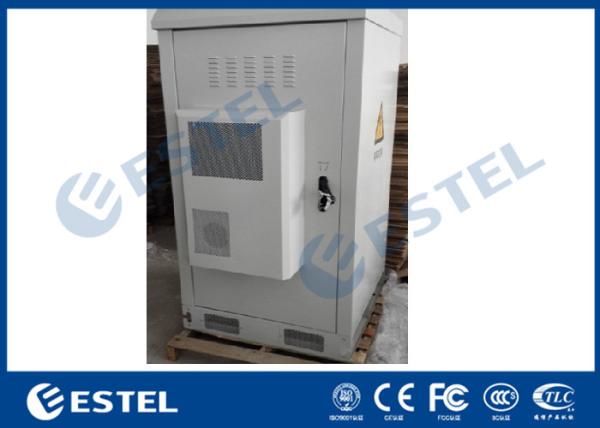

One Compartment Galvanized Steel Double Wall Outdoor Telecom Cabinet With Air Conditioner And Fans

1. Cabinet Instructions

  • The cabinet includes 19” equipment installation rack.
  • The cabinet includes one air conditioner and two fans, installed on front door.
  • The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.

2. Cabinet Parameters

Item Type Technical Parameter
Structure Dimension External Dimension: H×W×D 1700×900×900mm
Layout 1 compartment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled or welded
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lightning Proof Grade B lightning proof Nominal: 60KA, Max.: 100KA
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2

3.Cabinet Inlets

Feeder cable and other external cables all use bottom wiring method.

Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner

4.Grounding Protection

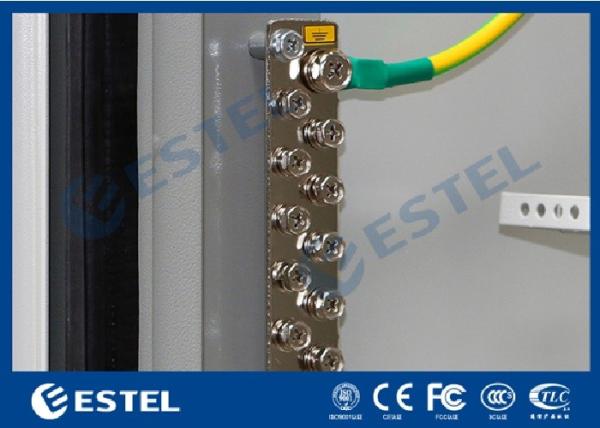

(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

(3) Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner

5.Package

Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
