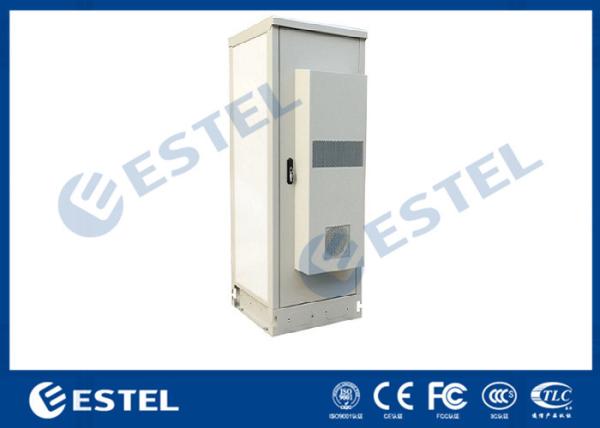

Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet
Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet
Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet
Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet
Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet
Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet
Specifications
Brand Name :
ESTEL
Model Number :
131090921050007
Certification :
ISO9001, CE, 3C, FCC, TLC, IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1 set
Price :
358-2143 usd
Payment Terms :
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability :
8,000 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Wooden case
Material :
Galvanized steel, double wall
Protection level :
IP55
Cooling system :
Air conditioner
Structure :
One compartment
Cabinet Door :
One front door
Cable Entry :
From cabinet bottom
Door lock :
Anti-theft three point lock
Certificates :
CE
cabinet :
Outdoor telecom cabinet
Description

IP55 Air Conditioner Cooling Outdoor Telecom Cabinet Anti-theft Three Point Lock

1. Cabinet Features

  • High reliability, maintenance-free, fast assembly, suitable for harsh environment
  • High integration, small footprint, short construction period, reduce the construction cost
  • Improved thermal design, efficient energy saving, effectively extending the battery life
  • Support for fast assembly, ready for the summit, multi-scene roof installation
  • Dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported

2. Cabinet Parameters

1 Cabinet external Dimension H*W*D 2100*900*900mm
2 Cabinet internal dimension H*W*D 1800*800*800mm, internal capacity:19"*42U
3 Cabinet type 1unit1cabin,front door,assembly structure,double layer
4 Material Galvanized steel ,insulation thickness 45mm,insulation cotton material is PEF
5 Door One front door
6 Equipment rack equipment rack:standard 19"rack
7 Cabinet base 150mm H,thickness 2.0mm
8 Cable entry under bottom in and out Φ50*5
9 Securitydesign Embedded door, embedded hinges, 3-point security lock
10 Protection IP55

3. Cabinet Features

  • External Dimension is W×D×H 900×900×2100mm
  • Galvanized steel,double wall
  • Anti-theft three point lock
  • The cabinet includes 19” standard installation rack.
  • The cabinet cooling uses one air conditioner.
  • Including -48VDC illumination lamp.
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
  • At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
  • IP55 protection level.

4. Cabinet Dimension

External dimension is W×D×H 900×900×2100mm

5. Cooling System

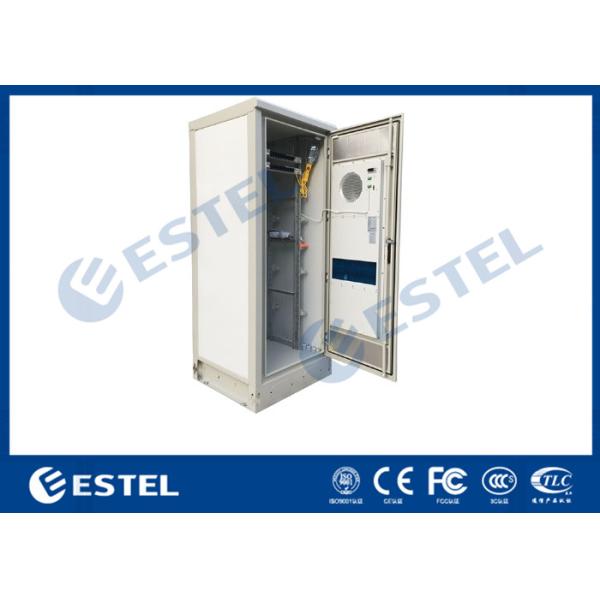

There is one 2000W cooling capacity air conditioner installed on the front door of the cabinet.

Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet

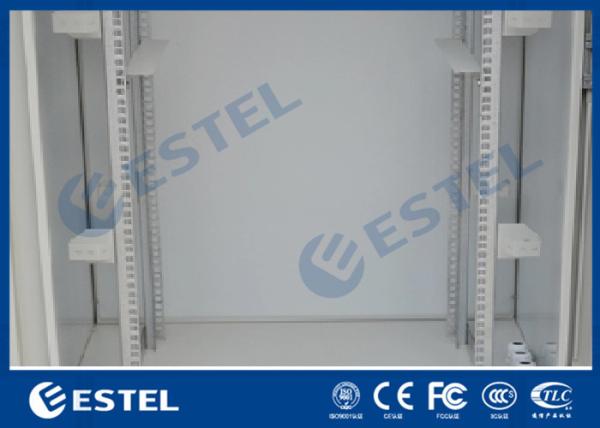

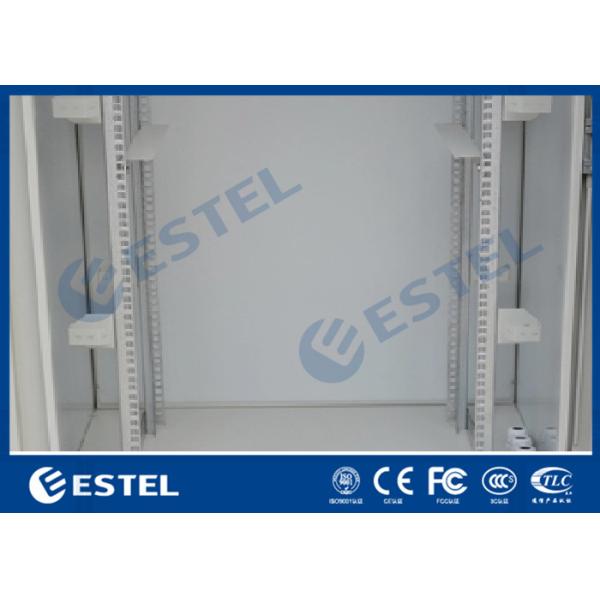

6.Cabinet Internal Rack

Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet

7. Cabinet Package

Wooden case with pallets

Floor Mount Embedded door IP55 42U Outdoor Telecom Cabinet
