Integrated Outdoor Battery Cabinets Backup Energy Storage Telecom Cabinet 19 inch rack with Power distribution

1. Integrated Outdoor Battery Cabinets Specifications

(1) Technical Parameters

(2) Integrated Outdoor Battery Cabinets Accessories List

2. Cabinet Protection Level:

IP54/IP55/IP65

IP55= Enclosures' Characteristics:

Complete protection from dust, oil, and other non-corrosive material

Complete protection from contacting with enclosed equipment

Protection from water, up to water projected by a nozzle against enclosure from any direction

Available in wall-mounted, free standing, trough, and telegraph pole mounting

Silk-screening logo, anodizing, or engraving services are available

IP65= Enclosures' Characteristics:

Complete protection from dust, oil, and other non-corrosive material

Complete protection from contacting with enclosed equipment

Protection from water, up to water projected by a nozzle against enclosure from any direction

Available in wall-mounted, free standing, trough, and telegraph pole mounting

Silk-screening logo, anodizing, or engraving services are available

Custom with cutouts,insulation, hinges, latches or locks

3. Cabinet Introduction

• Cabinet Material

​The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 40mm PEF. The cabinet is assembled type.

• Cabinet Structure

The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.

• Cabinet Door and Lock

The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

4. Features

4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

4.2 The cabinet cooling uses air conditioner.

4.3 Including -48VDC illumination lamp.

4.4 The cabinet includes power and environment monitoring unit, which can send power failure alarm, door open alarm, temperature and humidity alarm, smoke alarm, water alarm etc.

4.5 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

4.6 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.

4.7 The cabinet uses assembled structure, easy for installation.

4.8 The cabinet includes 19” standard installation rack.

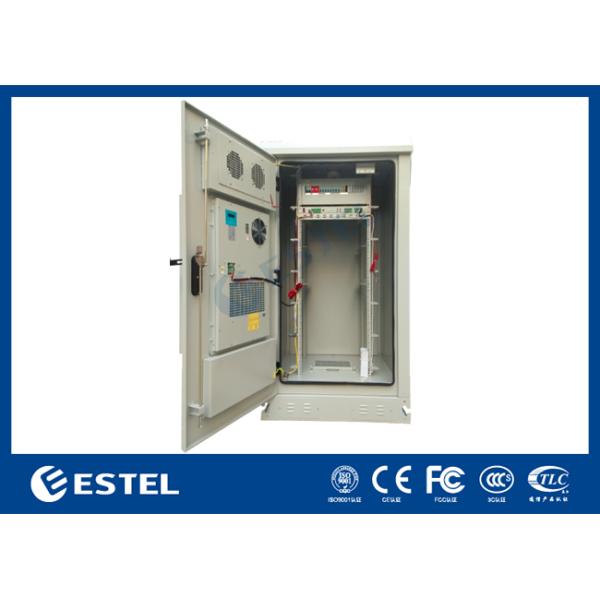

Pictures for ET9090170-32U

5. Technical Specs

(1) Applicable environment conditions:

Environment temperature: -40°C ~ + 70°C

Environment humidity (RH): ≤95% (at + 40°C)

Air pressure: 62kPa ~ 102kPa

• Material: good quality galvanized steel
• Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
• Cabinet load bearing: ≥600kg
• Ingress protection: IP55
• Flame retardance: comply with GB5169.7 test A
• Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
• Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
• Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.

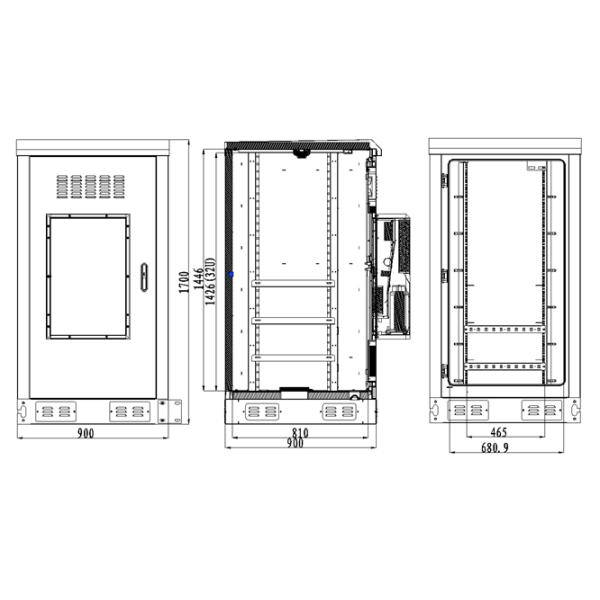

6. Dimension Diagram

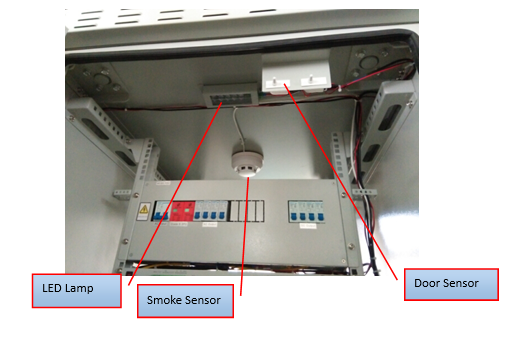

Sensors Installation

6.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet.

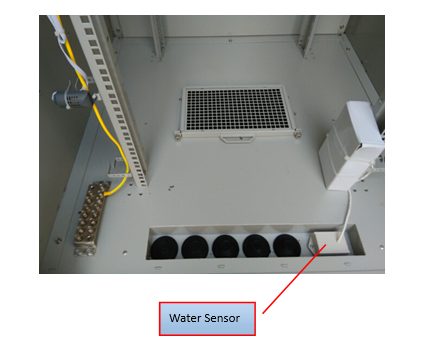

6.2 Water sensor is installed at the bottom of the cabinet.

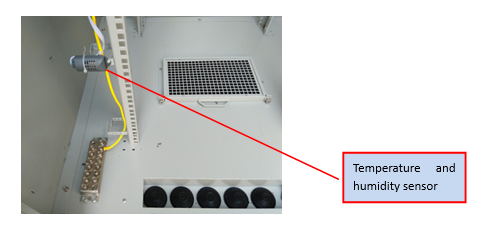

6.3 Temperature and humidity sensor is installed at the side inside the cabinet.

7. Wire Routing Design

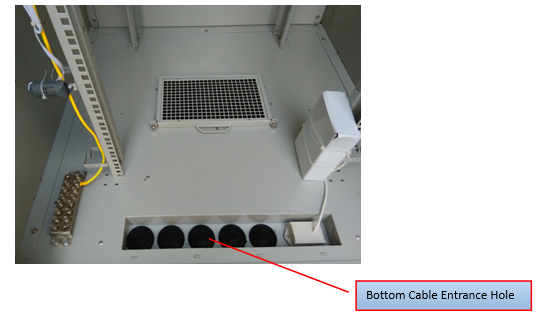

Feeder cable and other external cables all use bottom wiring method.

8. Grounding Protection

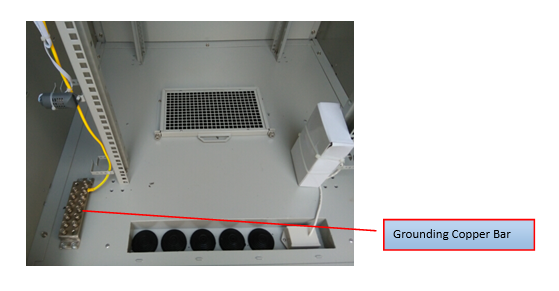

• The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
• The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
• Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

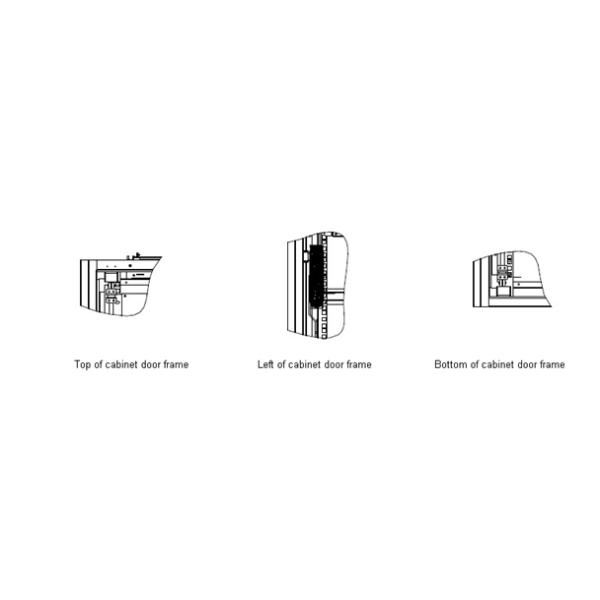

9. Theft Proof Design

10. Door lock theft proof design

Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

• Three point lock
•

11. Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

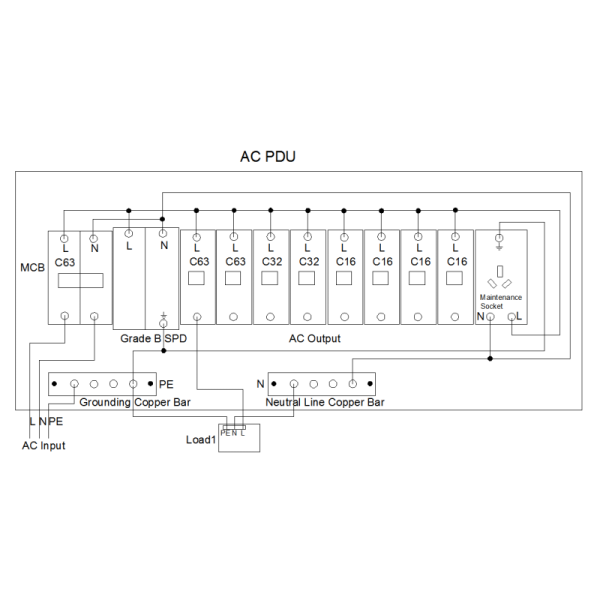

12. PDU Principle Diagram
