Specifications
Brand Name :
ESTEL
Model Number :
TC06-50ZEH/01-1
Certification :
ISO9001, CE, 3C, FCC, TLC,IP55
Place of Origin :
Shenzhen, China (Mainland)
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,T/T, Western Union, Paypal, etc
Supply Ability :
10,000 sets per month
Delivery Time :
7-15 working days
Packaging Details :
carton + foam + wooden case +pallet
Installation Mode :
door mounted/side mounted
OEM :
Support
Color :
grey
Noise :
≤60dB
Cover Material :
galvanized steel
Application :
telecom cabinet
Protection Level :
IP55
Rated Cooling Capacity :
500W
Rated Heating Capacity :
300/500W (optional)
Input Voltage :
DC48V, variable frequency
Rated Input Current :
3.6A(L35 L35) 3.2A(L25 L35)
Rated Input Power :
173W(L35 L35) 154W(L25 L35)
Refrigerant :
R134a
Working Temperature :
-20°C ~ +55°C
Dimension :
H×W×D:400×190×221mm
Description

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency

1. Brief Introduction

(1) Intelligent controller.

The air conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data.

(2) LCD display.

(3) RS485 or RS232 communication, RTU-Modbus protocol, support remote detection and control.

2. Specifications

(1) Technical Parameters

Model No. TC06-50ZEH/01-1
Environmental Performance working environmental temperature -20°C ~ 55°C
storage working temperature -40°C ~ 70°C
working humidity ≤95%
Thermal Performance rated cooling capacity

550W(L35 L35)

500W(L25 L35)

Electrical Performance

 rated input current

3.6A(L35 L35)

3.2A(L25 L35)
rated input power

173W(L35 L35)

154W(L25 L35)
input voltage DC48V
Reliability MTBF 60000 hours
Noise ≤60dB
Refrigerant R134a

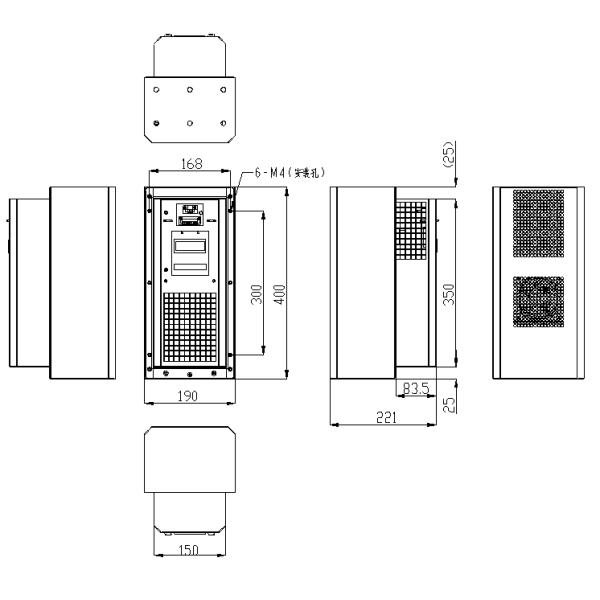

(2) Dimension Diagram: H×W×D: 400×190×221mm

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency

3. Features

  • Strong adaptability
  • High intelligence
  • High precision
  • High reliability
  • Low noise
  • Low energy consumption
  • With 4 way switching value detection
  • With 1 way room air conditioner control
  • Wide input voltage range: 48VDC±15%
  • With dry contact alarm output

4. Electrical Wiring Diagram

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency

Wiring Ports:

0V -48V: power supply input (voltage input: 48VDC±15%)

F+ F- : direct ventilation output

AL1 AL2: general alarm output

A+ B- SGND: RS485 communication interface

N: not connected pin

5. Mainboard Wiring Diagram

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency

6. System Principle Diagram

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency

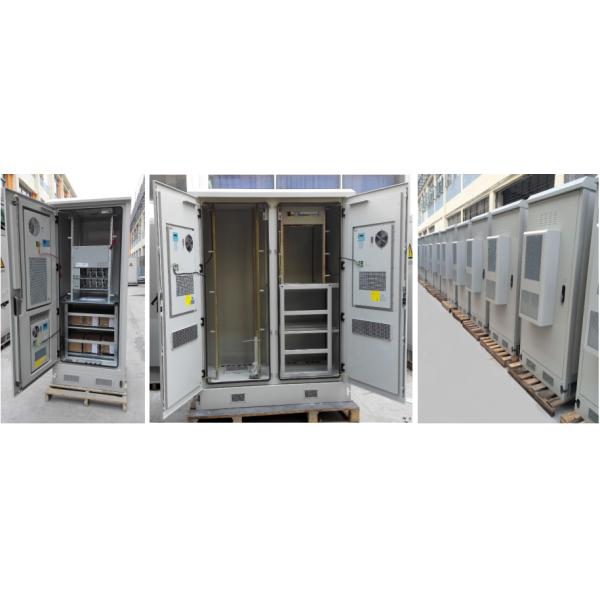

7. Range of Application

The air conditioner is widely used in telecom cabinet, such as equipment cabinet, battery cabinet and UPS cabinet etc.

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency

8. Packing

Packed with wooden case, thus it's good to avoid damage during transportation.

700BTU Telecom Outdoor Enclosure Air Conditioner 500W Cooling Capacity Variable Frequency
