DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery
DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery
DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery
DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery
DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery
DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery
Specifications
Brand Name :
ESTEL
Model Number :
ET7573233-UP
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1200PCS per month
Delivery Time :
15 days
Packaging Details :
wooden case
Application :
Telecom Base Station, for install UPS, battery
Cooling :
Air conditioner and fan
Working Temperature :
-40°C ~ +55°C
Door :
One front door
Material :
Sandwich structure steel panel
Color :
Grey
Battery Shelf :
3
Optional :
Environment monitoring system, power distribution unit
Price :
715-4286 usd
Description

DC Air Conditioner Outdoor Power Cabinet Outdoor Power Supply Cabinet With Three Layer Battery

1. Application

The ET7573233-UP Outdoor Power Supply Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Features


(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(2) Cabinet cooling: air conditioner and fan.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5) The cabinet includes grounding bar.
(6) Include door stopper.

3. Technical Parameters

Item

Type

Technical Parameter

Structure

Dimension

External Dimension: W×D×H 751×733×2337mm

Layout

1 compartment

Equipment Installation Method

Upper part: 19” rack; lower part: three battery shelves.

Door

With one front door, and anti-theft four point lock for outdoor cabinet.

Material

Steel, sandwich structure panel, double wall with insulation.

Ingress Protection

IP55

Temperature Control

Cooling

air conditioner and fan

Lighting

LED lamp

48V LED lamp

Temperature

Temperature

Working Temperature: -40°C ~ +55°C

Storage Temperature: -50°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

Humidity

Relative Humidity

5% ~ 100%

Pressure

Air Pressure

62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Radiation Intensity

Solar Radiation Intensity

1120 ×(1±5%)W/m2

4. Accessories List

No.

Item

Quantity

Unit

Specs

1

Outdoor Power Supply Cabinet

1

PC

External Dimension: W×D×H 751×733×2337mm

2

Air Conditioner

1

PC

Cooling capacity: 2000W;

Power Supply: DC48V.

Variable Frequency Air Conditioner

3

Air Conditioner

1

PC

Cooling capacity: 300W;

Power Supply: DC48V.

Variable Frequency Air Conditioner

4

Fan

2

PC

DC48V

5

Environment Monitoring Unit

1

PC

19”, 1U, DC48V, include SNMP communication port

6

Door Sensor

1

PC

7

Smoke Sensor

1

PC

8

Water Sensor

1

PC

9

Temperature and Humidity Sensor

1

PC

10

Tilt and Shock Sensor

1

PC

11

LED Lamp

1

PC

DC48V

12

LED Lamp Switch

1

PC

Control LED lamp on/off

13

Power Distribution Unit

1

PC

Grade B Lightning Proof

AC Input: 63A/2P ×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4

Input Voltage: AC220V, 50Hz.

14

Package

1

PC

Wooden Case

5. Cabinet Dimension

DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery

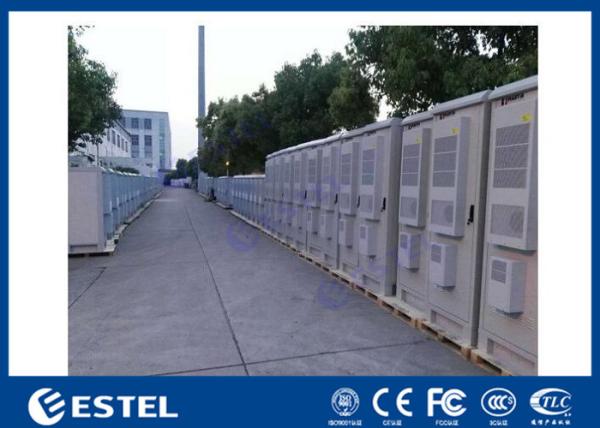

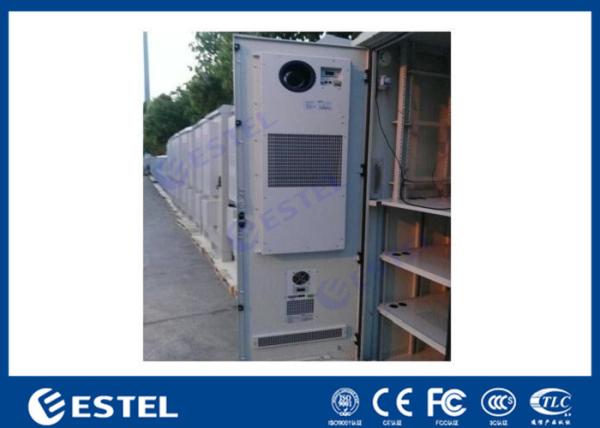

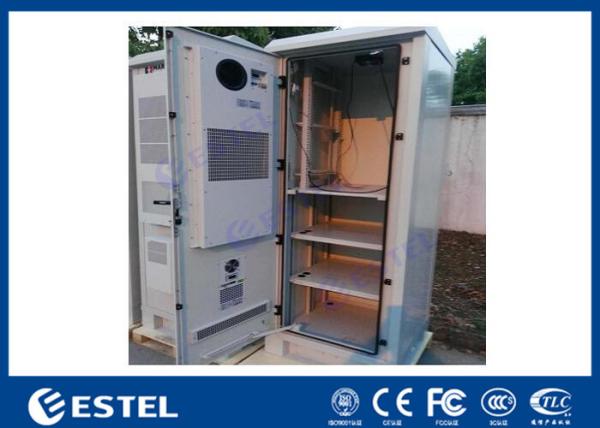

6. Cabinet Picture

DC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer BatteryDC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer BatteryDC Air Conditioner Outdoor Equipment Cabinet One Front Door With Three Layer Battery
