Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Specifications
application :
indoor
color :
full color
supplier type :
original manufacturer
media available :
datasheet, Photo, Other
Place of Origin :
Guangdong, China
Model Number :
P4/P4.81/P5
Brand Name :
Brighter
use :
advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, Education, medical treatment
function :
SDK
pixels :
Other, Other
specification :
Video Wall
Screen Type :
Capacitive, Resistive
brightness :
500-1300mcd/m², 500-1300mcd/m²
lifespan (hours) :
100000Hours, 100000Hours
view angle（h/v） :
Horizontal>170Vertical>120, 140/120, Horizontal>170Vertical>120, 140/120
Pixel configuration :
1R1G1B
Life span :
100000Hours
Communication distance :
<100M
Type :
LED
Panel Size :
256*128/250*250/320*160mm, 256*128/250*250/320*160mm
HS Code :
8531200000
Description

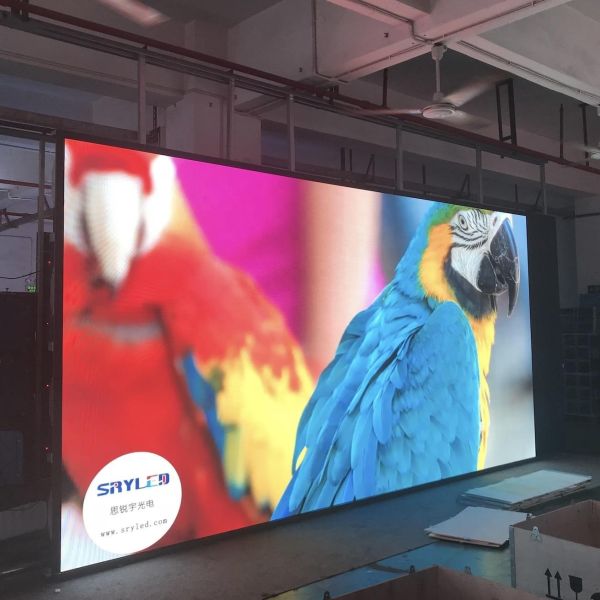

Product Display
Module Details
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display

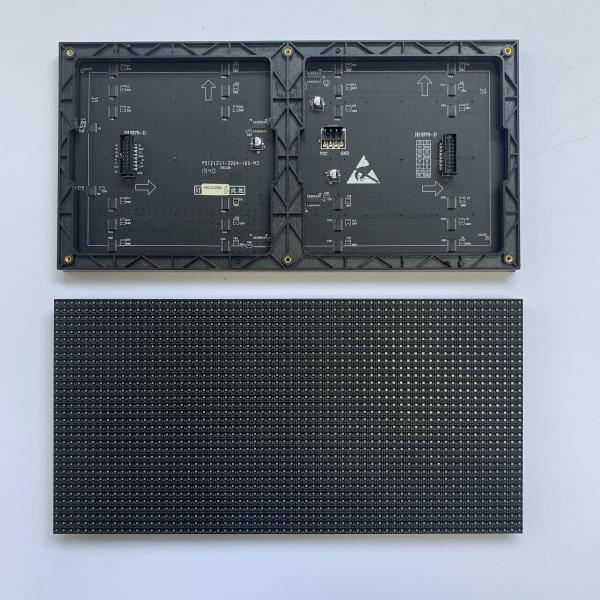

P4
256*128mm
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display

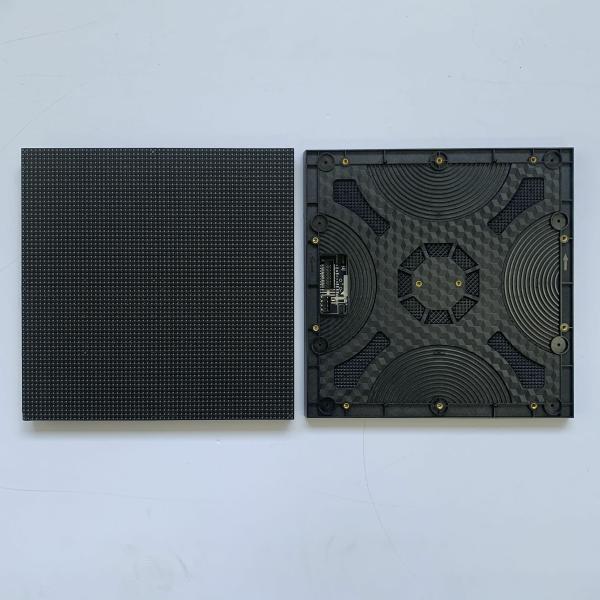

P4.81
250*250mm
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
P5
320*160mm

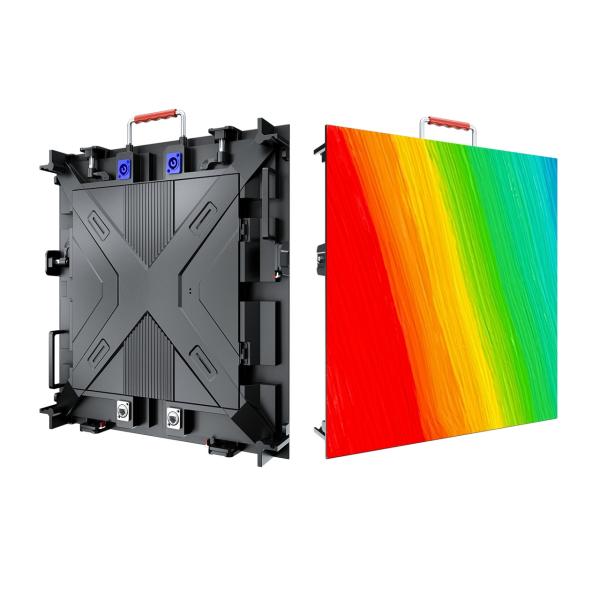

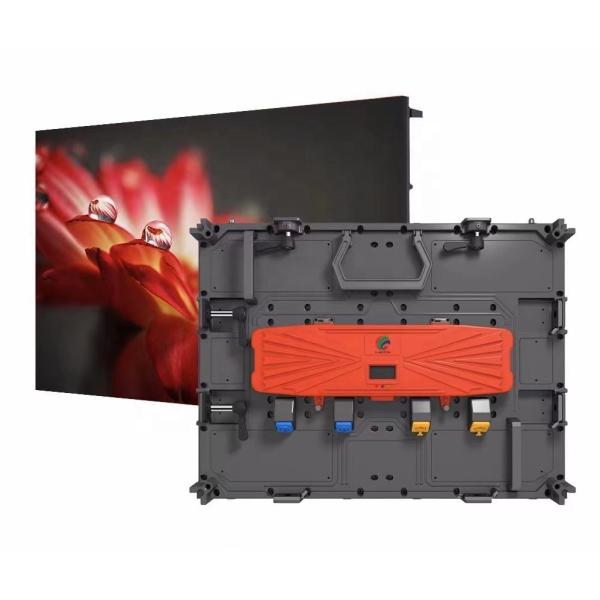

Cabinet Detail
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
512*512mm
(P4)
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
500*500mm
(P4.81)
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
640*640mm
(P5)
Product Parameter
Item
P4
P4.81
P5





Module
Module Dimension
256*128mm
250*250mm
320*160mm
Pixel Pitch
4mm
4.81mm
5mm
Pixel density
62500dots/m²
43222dots/m²
40000dots/m²
Pixel configuration
1R1G1B
1R1G1B
1R1G1B
Pixel resolution
64*32dots
52*52dots
192*96dots
Average power
22W
35W
25W
Panel weight
0.25KG
0.5KG
0.45KG



Cabinet
Cabinet dimension
512*512mm
500*500mm
640*640mm
Quantity of module
8PCS
4PCS
8PCS
Best viewing angle
140/120
Horizontal>170Vertical>120
140/120
Best viewing distance
5-15M
5-20M
2-20M


Technical signal index
Refresh frequency
1920HZ/S
1920HZ/S
1920HZ/S
Brightness
900-1000mcd/m²
800-1100mcd/m²
800-1300mcd/m²
Life span
100000Hours
100000Hours
100000Hours
Communication distance
<100M
<100M
<100M

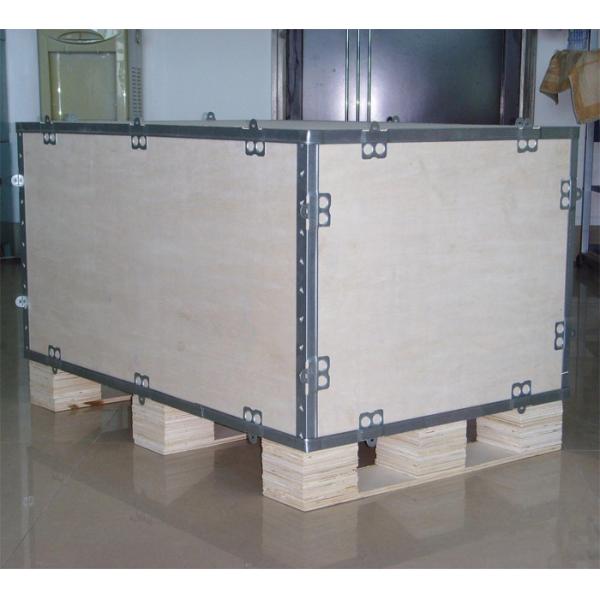

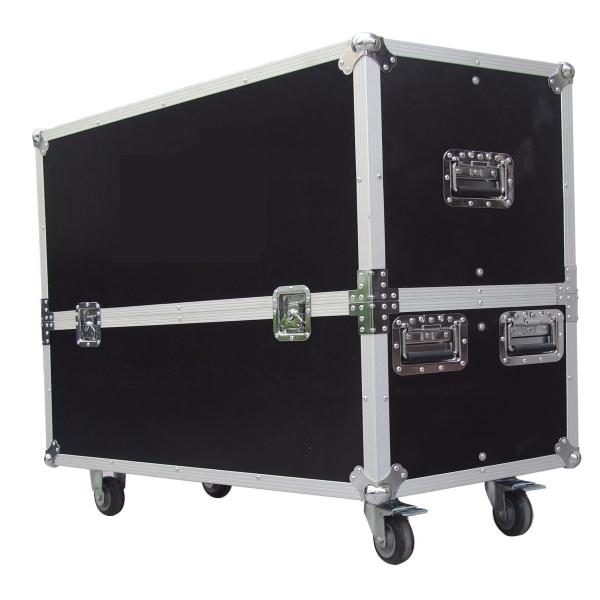

Packaging & Delivery
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
Company Profile
19 Years Factory Outlet of SMD LED Modules: Indoor P0.9—P10 & Outdoor P2.5—P10
Quality stability: Use the most advanced imported YAMAHA 40R high-speed SMT machine to make SMT into LED modules
Capacity stability: 40KK Patch Count Daily Output, SMT Machine*50, Solder Paste Printing*15, Reflow Welding Machine*10
Full quality inspection: 2000+㎡ Aging Area. 72h SMD Lamp Aging Test → 8h Led Module Aging Test → Pre-Installed Led Screen 72h Aging Test. Waterproof test & Vibration test
Full Color Module LED Display P4 P4.81 P5 LED Screen Indoor Advertising Display
FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 19 years. Welcome to visit our factory.

Q2:How does your factory do regarding quality control?
A2:Quality is priority. Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication
.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the size and quantities of your order.

Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. We can send an engineer team to the country of the customer to instruct the installation.

Q6:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc. ONE-STOP Supply of Ground Support and Truss.
