Variable Fiber Optic Passive Components 1310nm 1550nm ST Attenuator
Variable Fiber Optic Passive Components 1310nm 1550nm ST Attenuator
Variable Fiber Optic Passive Components 1310nm 1550nm ST Attenuator
Variable Fiber Optic Passive Components 1310nm 1550nm ST Attenuator
Variable Fiber Optic Passive Components 1310nm 1550nm ST Attenuator
Variable Fiber Optic Passive Components 1310nm 1550nm ST Attenuator
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
ATTNSTU01
Maximum Optical Input Power :
1000mW
Operating Wavelength :
SM 1310/1550nm
Description

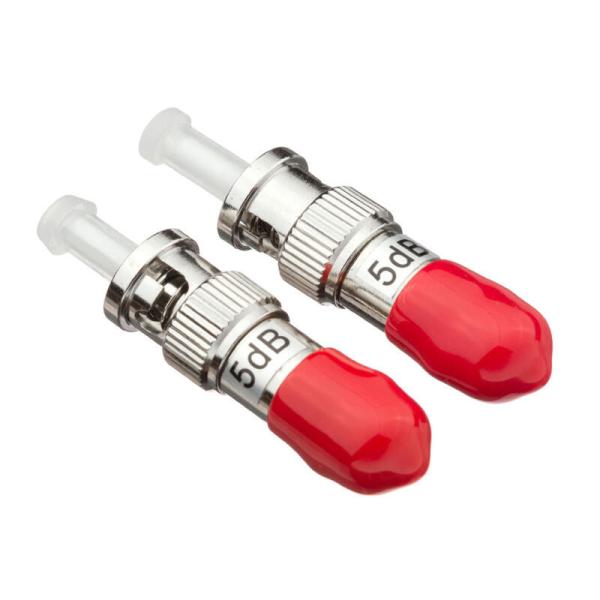

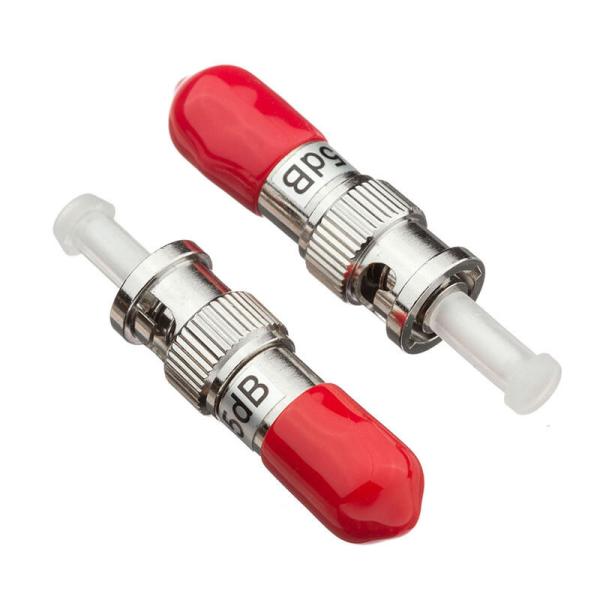

ST Fiber Optic Attenuator

Description

Our attenuators are a very high quality design using doped fiber to attenuate the signal. And our fiber optic attenuators offer a operating wavelength range of 1250nm to 1600nm, covering both the common 1310nm and 1550nm operating wavelengths. Maximum transmission power is typically one watt. We stock attenuators for the following fiber optic connector types: ST, SC, SC/APC, FC, FC/APC, LC, LC/APC, MU. Other connector type attenuators are available upon special order. We stock most values between 1dB and 25dB for each of these attenuator types.

Applications

  • Testing equipment

  • Fiber optical CATV

  • Fiber optical sensor

  • Fiber optical telecommunication system


Features

  • Fixed Attenuator(Fixed Type FC, SC, ST, LC)

  • Female to male type ( FC, SC, ST, LC)

  • In-Line Attenuator(Fused and Fiber Jumpers Type)

  • High Return Loss(In-Line and High RL Type)

  • Exact and Stable Attenuation(Variable Type)

Parameters

Item Parameter
Model Fixed, Female&Male, In-line, Variable
Operating Wavelength SM:1310/1550nm SM:1310/1550nm
Attenuation Range 1~30dB
Return Loss APC: ≥60db UPC: ≥55dB PC:≥50dB
Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operation Temperature -40°C~+60°C
Storage Temperature -45°C~+ 85°C
Humidity 95%RH
