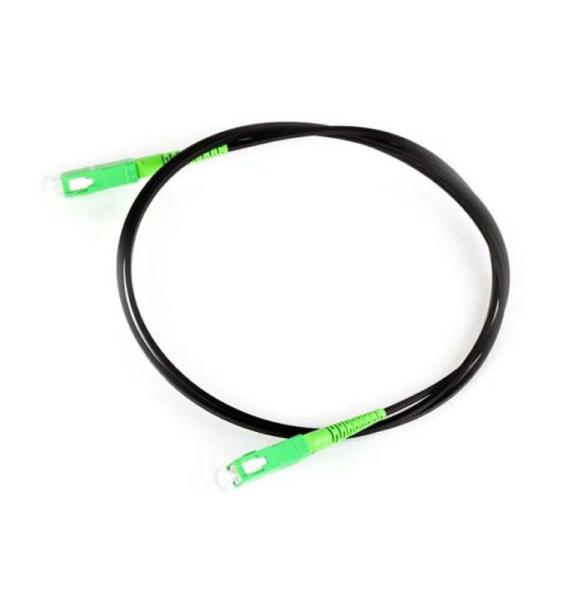

2.0x5.0mm FTTH Products SC APC Fiber Optic Drop Patch Cable IEC 61754-4
2.0x5.0mm FTTH Products SC APC Fiber Optic Drop Patch Cable IEC 61754-4
2.0x5.0mm FTTH Products SC APC Fiber Optic Drop Patch Cable IEC 61754-4
2.0x5.0mm FTTH Products SC APC Fiber Optic Drop Patch Cable IEC 61754-4
2.0x5.0mm FTTH Products SC APC Fiber Optic Drop Patch Cable IEC 61754-4
2.0x5.0mm FTTH Products SC APC Fiber Optic Drop Patch Cable IEC 61754-4
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
FTTH Outdoor Flat Drop Patch Cords
Description

FTTH Outdoor Flat Drop Patch Cords

Description

The material of the flat drop patch cords are all-weather and UV-resistant. They are very reliability and stability. And they are cost effective solution for in house termination. This kind of flat drop patch cords suitable for indoor and outdoor areas.

Features

  • The connector with low insertion loss, high return loss.
  • The factory made a good connector to ensure the reliability and stability.
  • Simplifying the design, reduces the requirements of personnel.
  • Material cost and construction cost can be greatly reduced.
  • Can choose a variety of different structure form of the drop Cable.
  • Cost effective solution for in house termination.
  • Low insertion loss and added loss.
  • Height of attenuation.
  • The material in the jumpel cable are all-weather and UV-resistant.
  • Mechanical performance: IEC 61754-4 standard.
  • RoHS and REACH materials compliant.
  • Cable diameter Range: 2.0*5.0mm.

Application

  • FTTH network for indoor and outdoor
  • Local Area Network and Building Cabling Network
  • Interconnect between instruments, terminal box and communication

Specification

Connector type Unit FC. FC/APC, ST, SC, SC/APC, LC, LC/APC, DIN, MTRJ, MU, MPO, E2000, E2000/APC etc.
Cable Length m 1, 2, 3, 5, 10 (±10mm)
Cable diameter mm 5.0*2.0
Operating wavelength nm 1310, 1490,1550
Core Type 　 G.652, G655, G657, OM1, OM2, OM3, OM4
Ferrule End-face 　 PC UPC APC
Insertion Loss dB ≤0,2
Max. Insertion Loss dB ≤0,3
Return Loss dB ≥45 ≥50 ≥55
Operation Temperature C -40 ~ +80
Core Diameter um 9/125, 62.5/125, 50/125
Durability 　 ≤0.1dB change, 500 Cycles
Sheath Color 　 White, Black
Package 　 Each patchcord is packaged individually and individually test certification.
