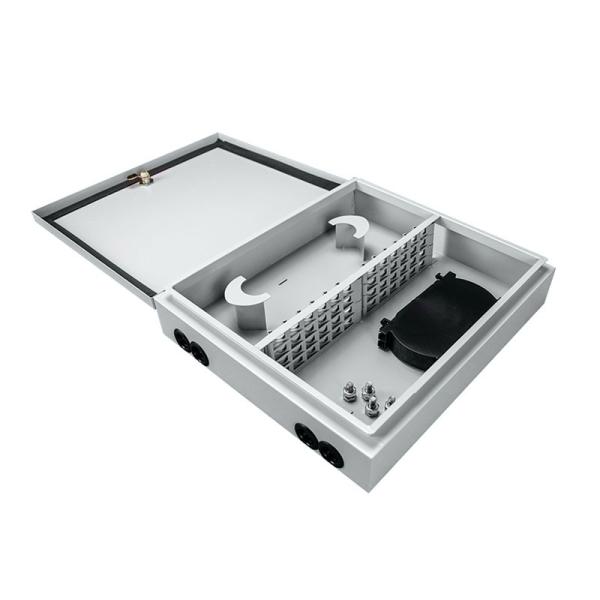

12 SC Outdoor Optical Distribution Wall Mount FTTX Fiber Termination Box 24LC
12 SC Outdoor Optical Distribution Wall Mount FTTX Fiber Termination Box 24LC
12 SC Outdoor Optical Distribution Wall Mount FTTX Fiber Termination Box 24LC
12 SC Outdoor Optical Distribution Wall Mount FTTX Fiber Termination Box 24LC
12 SC Outdoor Optical Distribution Wall Mount FTTX Fiber Termination Box 24LC
12 SC Outdoor Optical Distribution Wall Mount FTTX Fiber Termination Box 24LC
Specifications
Place of Origin :
CHINA
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
MOQ :
10PCS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Delivery Time :
2-7 DAYS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Model NO. :
Outdoor Wall Mount
Delivery :
EXW/FOB/CIF
Country of Origin :
GUA,CN
Description

Outdoor Wall Mount

Description
The outdoor wall mount is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be used in this box. Meanwhile, it provides solid protection and management for the FTTX network building.



Features

  • Available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room
  • The cabinet is composed of two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
  • Provide fusion and storage applicance for optical cables
  • Reliable protection appliance of fixing, stripping and earthing for optical cables.
  • Whole range protected design for fiber lay to ensure the bending radius=40mm
  • Provide various accessories to avoid any unexpected damage to the fiber.
  • Made from Stainless steel material, IP54 water proof.

Application

  • Local Area Network

  • CATV Network

  • FTTX System

  • Wide Area Network

  • Test Instruments

Specification

Model
 Max Port Dimensions (HxWxD in mm) N.W. (kg) G.W. (kg)
SC/FC/ST LC
FWB-012B 12 24 350x350x75 6.4 7.5
FWB-016B 16 32 350x350x100 6.4 7.5
FWB-024B 24 48 400x450x100 10 12
FWB-048B 48 96 400x450x150 11 13
