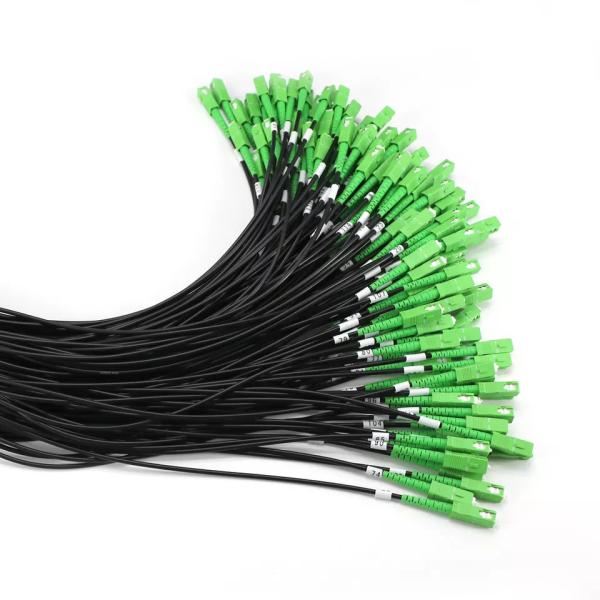

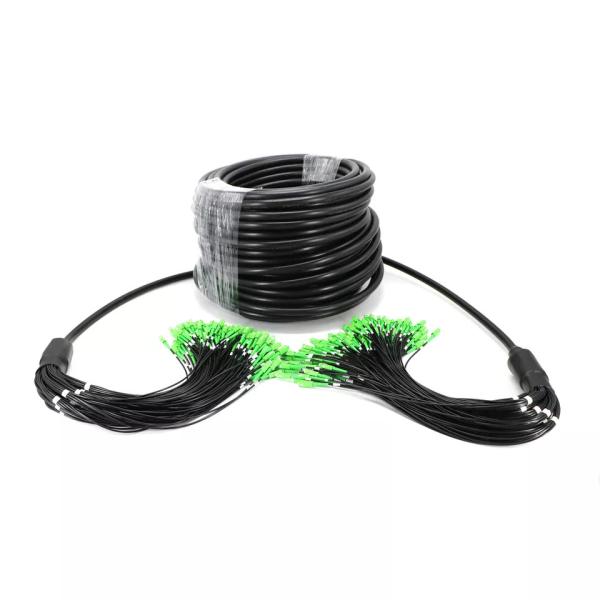

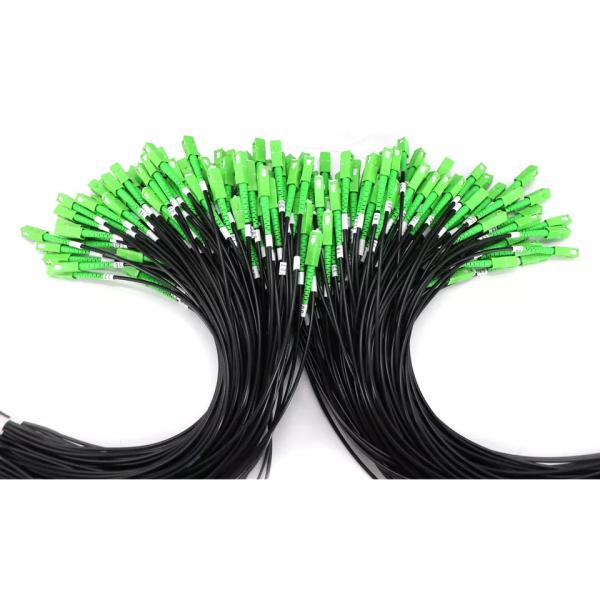

144 Cores SC/UPC-SC/UPC Breakout Fanout Fiber Optic Patch Cable Single Mode
144 Cores SC/UPC-SC/UPC Breakout Fanout Fiber Optic Patch Cable Single Mode
144 Cores SC/UPC-SC/UPC Breakout Fanout Fiber Optic Patch Cable Single Mode
144 Cores SC/UPC-SC/UPC Breakout Fanout Fiber Optic Patch Cable Single Mode
144 Cores SC/UPC-SC/UPC Breakout Fanout Fiber Optic Patch Cable Single Mode
144 Cores SC/UPC-SC/UPC Breakout Fanout Fiber Optic Patch Cable Single Mode
Specifications
Brand Name :
SKYLYNN or OEM, ODM
Certification :
ISO, ROHS, CE
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, L/C, WEST UNION
Supply Ability :
800,000
Delivery Time :
2-7 DAYS
Packaging Details :
PP BAG, INNER BOX, OUTER BOX
Model NO. :
FTTA breakout fanout patchcords
Insertion Loss :
≤0.3dB
Return Loss :
SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life :
500cycles
Working temperature :
-20°C~+70°C
Storage temperature :
-20°C~+70°C
Description

144 Cores SC/UPC-SC/UPC Single mode breakout fanout Fiber Optic Patch Cable

144 Cores SCUPC SCAPC Single mode breakout fanout Fiber Optic Patch Cable

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.


Features

  • General purpose and standard stock items

  • Lightweight

  • Pliable

  • Non-stretch

  • High pulling load strength

  • Resists lateral pressure

  • Excellent bending characteristics


Cable Specifications

Fiber Count Tight Diameter mm Cable Diameter mm Cable Weight Kg/km Tensile Strength Long/Short Term N Crush Resistance Long/Short Term N/100m Bending Radius Static/Dynamic mm
1 0.6/0.9 2 11 300/750 200/1000 20D/10D
1 0.6/0.9 3 15 300/750 200/1000 20D/10D
2 0.6/0.9 3 15 300/750 200/1000 20D/10D
2 0.6/0.9 2.0*4.0 30 300/750 200/1000 20D/10D
2 0.6/0.9 3.0*6.0 40 300/750 200/1000 20D/10D

Armored Patchcords Specifications

Item Data
Insertion Loss ≤0.3dB
Return Loss SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life 500cycles
Working temperature -20°C~+70°C
Storage temperature -20°C~+70°C
Tensile Data Tensile between junction and fiber cable≥100N
