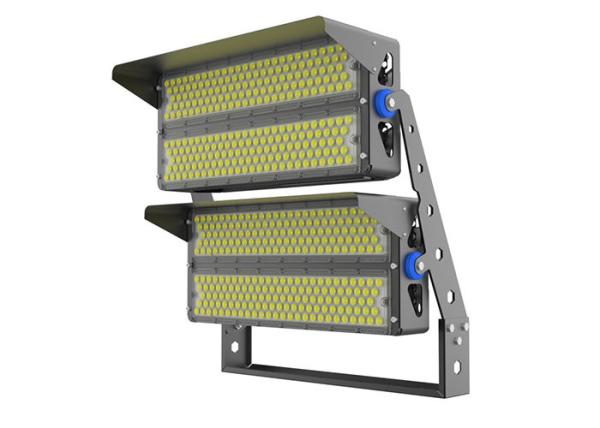

1000w modular Led Flood Light With Rotatable Modules
1000w modular Led Flood Light With Rotatable Modules
Specifications
Brand Name :
BISPARK
Model Number :
GAEA-HM960-F2
Certification :
CE RoHS SAA UL DLC CB TUV NOM
Place of Origin :
Guangdong,China
MOQ :
negotiation
Price :
391 USD
Payment Terms :
T/T, Western Union, D/A, D/P PayPal, MoneyGram
Supply Ability :
20000 PCS per Month
Delivery Time :
7-9 days for 1000pcs
Packaging Details :
1PC/Carton
Power :
960w 1000W High Power Led Flood Light
Input Voltage :
90-305V/480V AC/347V
Chip :
Lumileds SMD3030/5050
Driver :
Meanwell/Inventronics
Beam Angle :
20˚/40˚/60˚/90˚
Operating Temp. :
-30-45 ℃
CCT :
2700-6500K
Luminous Efficiency :
165LM/W
Apllication :
Sports area, Stadium Lighting, Ports,etc
Others :
OEM/ODM
Description

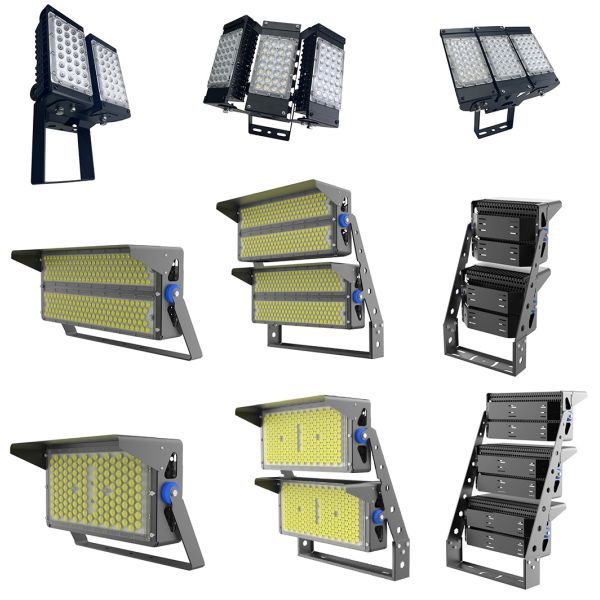

GAEA-F LED High Mast Flood Light/Stadium Lights with rotatable modular design, 50w/100w/240w/300w/400w/500w per module.

  • 100w 200w 300w 400w 500w 600w 800w 1000w 1200w 1440w, above 160lm/w

  • Multiple optics available, 20˚ 40˚ 60˚ 90˚ P50

  • Unbeatable pricing advantage

  • Rotatable modules offering maximum customization

  • Dialux simulation, lighting solution for your projects can be provided

Details of GAEA-F led high mast lights

1000w modular Led Flood Light With Rotatable Modules

Model NO. Power Input
Voltage		 Chip Brand Iuminous Flux
(lm)		 Beam
Angle		 Lamp Size(MM) N.W(KG) G.W(KG)
/CTN		 packing Size(CM)
1pc/CTN
50W-80W per module
GAEA-HM100-F5 100W
(2 modules)		 AC90-305V Lumileds SMD5050 160lm/w 30/60/90/30*70° 221*219*285mm 2.5KG 3.0KG 29*29*20cm
GAEA-HM150-F5 150W
(2 modules)		 AC90-305V Lumileds SMD5050 160lm/w 30/60/90/30*70° 221*243*285mm 3.0KG 3.5KG 33*29*20cm
GAEA-HM200-F5 200W
(3 modules)		 AC90-305V Lumileds SMD5050 160lm/w 30/60/90/30*70° 303*243*285mm 3.5KG 4.0KG 36*33*20cm
100W per module
GAEA-HM100-F6 100W
(1 module)		 AC90-305V Lumileds SMD3030 140lm/w 60/90 395*80*169mm 2.5KG 3.0KG 40*12*20cm
GAEA-HM200-F6 200W
(2 modules)		 AC90-305V Lumileds SMD3030 140lm/w 60/90 395*80*279mm 4.0KG 4.5KG 42*28*20cm
GAEA-HM300-F6 300W
(3 modules)		 AC90-305V Lumileds SMD3030 140lm/w 60/90 395*80*373mm 5.5KG 6.0KG 42*40*20cm
GAEA-HM400-F6 400W
(4 modules)		 AC90-305V Lumileds SMD3030 140lm/w 60/90 395*80*483mm 7.0KG 8.0KG 42*52*20cm
GAEA-HM500-F6 500W
(5 modules)		 AC90-305V Lumileds SMD3030 140lm/w 60/90 395*80*593mm 9.0KG 10.0KG 42*64*20cm
150W per module
GAEA-HM300-F1 300W AC90-305V Lumileds SMD5050 160lm/w 20˚/40˚/60˚/90˚ 352*288*316mm 8.0KG 9.0KG 42*36*22cm
GAEA-HM600-F1 600W AC90-305V Lumileds SMD5050 160lm/w 20˚/40˚/60˚/90˚ 361*405*647mm 18.0KG 19.0KG 65*42*22cm
240W per module
GAEA-HM480-F2 480W/500W AC90-305V Lumileds SMD5050 160lm/w 20˚/40˚/60˚/90˚ 586*288*316mm 11.0KG 12.0KG 67*36*22cm
GAEA-HM960-F2 960W/1000W AC90-305V Lumileds SMD5050 160lm/w 20˚/40˚/60˚/90˚ 595*405*647mm 24.0KG 25.0KG 68*65*22cm
GAEA-HM1440-F2 1440W/1500W AC90-305V Lumileds SMD5050 160lm/w 20˚/40˚/60˚/90˚ 597*500*926mm 35.0KG 37.0KG 68*94*22cm
400W per module
GAEA-HM400-F3 400W AC90-305V Lumileds SMD5050 155lm/w 30/45/60/90° 465*288*316mm 9.0KG 10.0KG 56*36*22cm
GAEA-HM800-F3 800W AC90-305V Lumileds SMD5050 155lm/w 30/45/60/90° 474*405*647mm 21.0KG 22.0KG 56*65*23cm
GAEA-HM1200-F3 1200W AC90-305V Lumileds SMD5050 155lm/w 30/45/60/90° 476*500*926mm 32.0KG 33.0KG 56*94*22cm
500W per module
GAEA-HM480-F4 480W/500W AC90-305V Lumileds SMD5050 160lm/w 30/45/60/90° 556*288*316mm 11.0KG 12.0KG 64*36*22cm
GAEA-HM960-F4 960W/1000W AC90-305V Lumileds SMD5050 160lm/w 30/45/60/90° 565*405*647mm 24.0KG 25.0KG 65*65*23cm
GAEA-HM1440-F4 1440W/1500W AC90-305V Lumileds SMD5050 160lm/w 30/45/60/90° 567*500*926mm 36.0KG 37.0KG 65*94*22cm

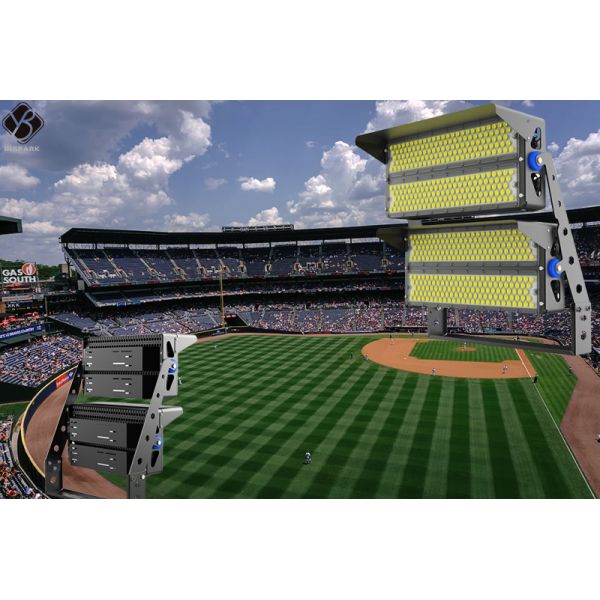

Widely used for highways, outdoor/ indoor sport fields(Football/ baseball/ basketball/volleyball/tennis court/Hockey fields), warehouse, airport, seaport, etc.
