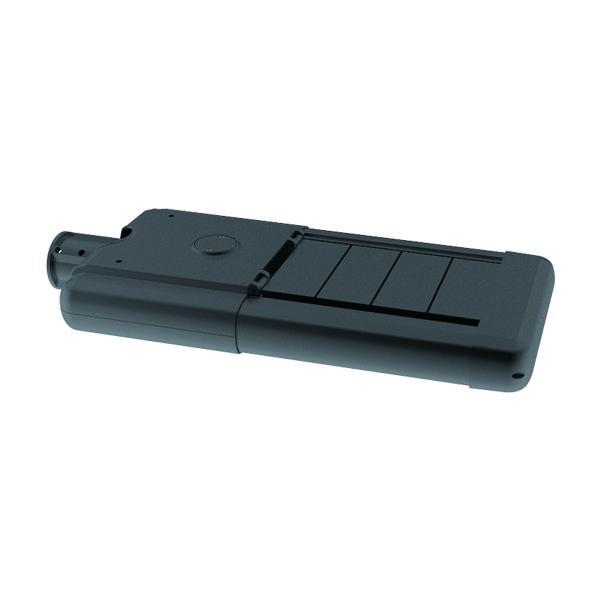

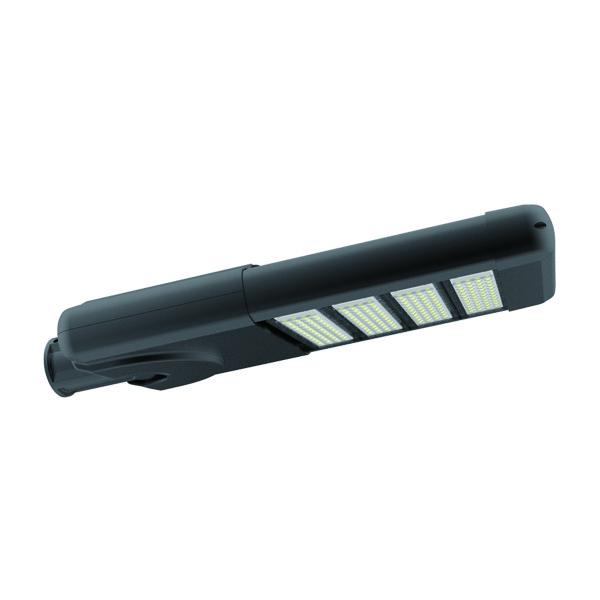

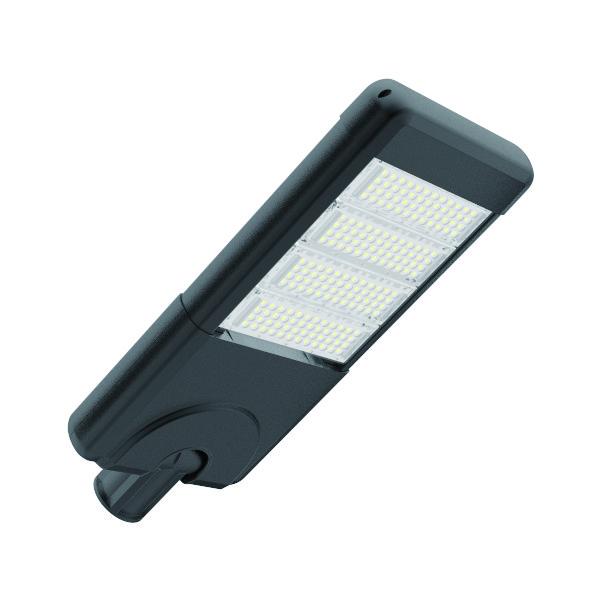

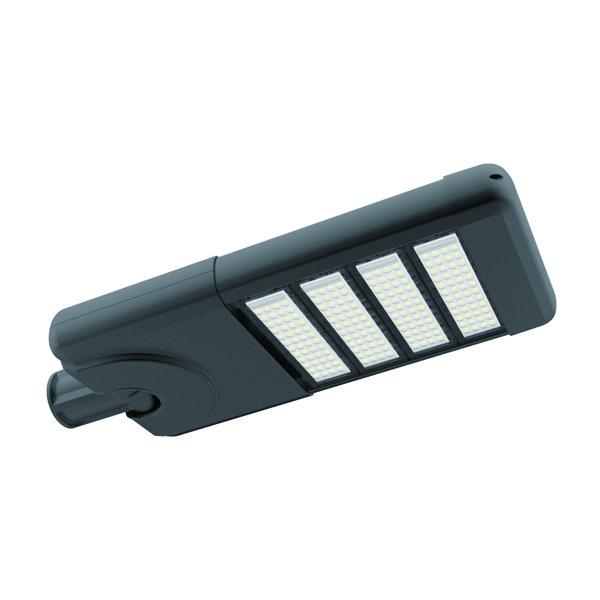

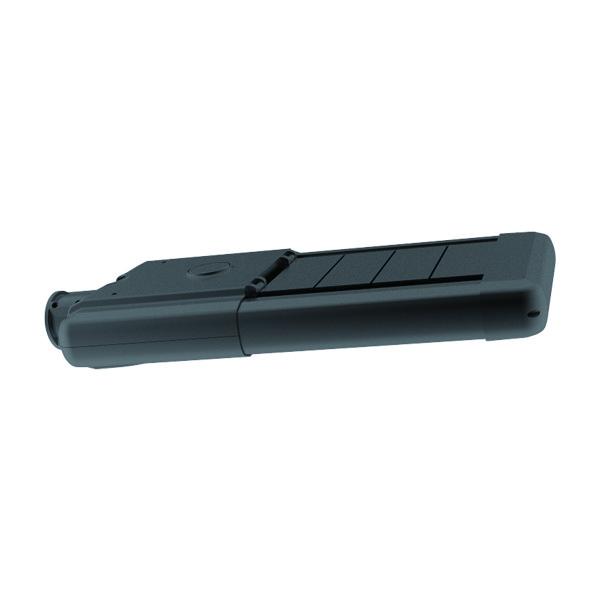

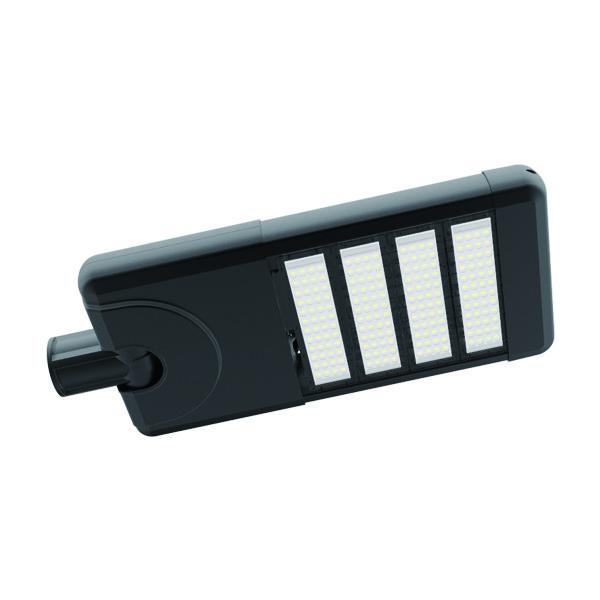

Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Specifications
Brand Name :
DALITE
Model Number :
LLDL-803
Certification :
CE
Place of Origin :
CHANGZHOU CITY CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000sets/month
Delivery Time :
2-6 weeks
Packaging Details :
Form + Carton
Efficiency @3030 :
>150LM/W
Efficiency @5050 :
>160LM/W
CRI :
Ra>70
IP rating :
IP67
Impact Resistance :
IK09
Electrical Class :
Class I
Description

High Efficiency 160LM/W, Waterproof IP67 Anti-Impact IK09 LLDL-803,Led Roadway Lights
Code : LLDL-803

The Most Comprehensive & High Efficiency Led Light Solution
Key advantages

  • LED modules with flexible combinations of LEDs
  • Separate LED modules for better heat dissipation
  • Vavious luminous efficiecy on options 160 lm/w Max
  • PC lens Protector,for IP67 Max
  • Two fixing system:Post top or Side-entry mounting
Characteristics
CodeLLDL-803-30WLLDL-803-60WLLDL-803-90WLLDL-803-120WLLDL-803-150WLLDL-803-180WLLDL-803-210WLLDL-803-240WLLDL-803-270W
Size(D*W*Hmm)502*346*120582*346*120662*346*120742*346*120822*346*120902*346*120982*346*1201062*346*1201142*346*120
Rated Power30W60W90W120W150W180W210W240W270W
Efficiency @3030150LM/W
Efficiency @5050160LM/W
Luminous Flux@30303500LM9000LM13500LM18000LM22500LM27000LM31500LM36000LM40500LM
Luminous Flux@50504800LM9600LM14400LM19200LM24000LM28800LM33600LM38400LM43200LM
Beam AngleT2/T3/T4/T5
CCT3000-6500K
CRIRa>70
Input Voltages120-277V
Frequency50-60Hz
Power Factor>0.95
Protection IndexIP67
Impact ResistanceIK08
Dimensions
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Photometric Distributions
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
Application example
Class I 43200LM T2 270W 160LM/W LED Roadway Lights
