SM 2 Cores Outdoor FTTH Drop Cable Single Mode Armored Fiber With Steel Messenger
SM 2 Cores Outdoor FTTH Drop Cable Single Mode Armored Fiber With Steel Messenger
SM 2 Cores Outdoor FTTH Drop Cable Single Mode Armored Fiber With Steel Messenger
SM 2 Cores Outdoor FTTH Drop Cable Single Mode Armored Fiber With Steel Messenger
Specifications
Brand Name :
JIANGHONG or OEM
Model Number :
GJYXFCH
Certification :
ISO,TLC
Place of Origin :
Sichuan, China
MOQ :
20,000 Meters
Price :
Can Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
50000KM per month
Delivery Time :
5-8Days
Packaging Details :
Carton+Fumigated Wooden Tray
Product name :
2cores outdoor FTTH drop cable
Core :
2cores
Application :
Outdoor cabling
Type :
SM Fiber
Fiber Model :
G657A2
Sheath Material :
LSZH or PE
Package :
Carton+Roll
Length :
2km/Roll
Description

Single Mode 2 Cores Outdoor Fiber Optic Cable With Steel Messenger FRP Strength Member

Description

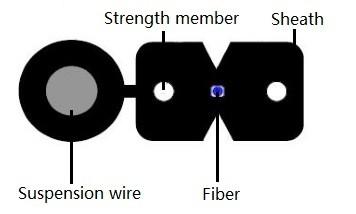

SM2 cores outdoor Fiber Optic Cable is to place the optical fiber in the center, place two parallel FRP strength members on both sides as reinforcement elements,equipped with a steel wire messenger,squeeze PE or LSZH sheath into cable.


Features


Water resistent,soft and bendable,easy to deploy and installation

Applications


Outdoor cabling,acces network.


Performance

Type

Max.Attenuation

Tensile strength

Crush resistance

Minimum bending radius

1310nm

1550nm

Short term

Long term

Short term

Long term

GJYXFCH

0.36dB/km

0.25dB/km

600N

300N

2200N

1000N

40.0×Cable-φ

Company profile

SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
