Easy Set Up Clearspan Structure Canopy Winter Glass Wall Event Ceremony Tent
General Description
Carpa glass wall system adopts high-class tempered glasses panels, Aluminum sub-frame, Aluminum T frame with locks, Aluminum or galvanized steel ground frame, making your party, wedding, event
more luxury and more spotlighting than soft PVC sidewalls. The glass wall tents seem like a house, and Single or double wing doors can be incorporates into the glass wall system.
Material Guarantee


High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Our PVC fabric flame retardant according to German standard DIN4102 B1,M2 and USA standard CFM/NFPA 701.
Hard pressed extruded aluminum alloy, anodized surface handling, silver color, sturdy and never rust; over 15~20years life span.
Our aluminum alloy code 6061/T6,hardness achieved 15HW.The wind load capability is based on the aluminum hardness.
- Steel components: Hot-dip galvanized steel, thickness is over 60um.
Tent Accessories
- Covers: colourful cover, transparent cover, inflatable roof cover
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Tents Specification
| A-Frame Tent Type |
| Model | Width | Length | Bay distance | Side height | Ridge height | Max. wind load |
| CTA006 | 6m | Unlimited | 3m | 2.70m | 3.90m | 80km/h |
| CTA008 | 8m | Unlimited | 3m | 2.70m | 4.30m | 80km/h |
| CTA010 | 10m | Unlimited | 3m | 2.70m | 4.70m | 80km/h |
| CTA012 | 12m | Unlimited | 5m | 3.00m | 4.90m | 100km/h |
| CTA015 | 15m | Unlimited | 5m | 4.00m | 6.40m | 100km/h |
| CTA018 | 18m | Unlimited | 5m | 4.00m | 6.90m | 100km/h |
| CTA020 | 20m | Unlimited | 5m | 4.00m | 7.20m | 100km/h |
| CTA025 | 25m | Unlimited | 5m | 4.00m | 8.00m | 100km/h |
| CTA030 | 30m | Unlimited | 5m | 4.00m | 8.90m | 100km/h |
| CTA040 | 40m | Unlimited | 5m | 4.00m | 10.50m | 100km/h |
| CTA050 | 50m | Unlimited | 5m | 4.00m | 12.00m | 100km/h |
Character & Feature
- 100% re-locatable, and unobstructed free span space;
- Rainproof, fire retardant, UV-protection, can be environmentally controlled in any climate;
- Very easy and very fast to install and dismantle;
- Our factory operation strictly conducted in accordance with ISO 9001 quality control standards, we own The CE/SGS (TUV) quality management system certificate.
Packing Details
- All the little hardware parts packed in solid carton boxes.
- All the aluminum frame packed in pearl film or clear film.
- Tops and side walls packed in PVC carry bags.
- Glass walls, glass doors, ABS walls packed in transportation racks.
Our Advantages
- Over 15-year experience in tent field for our Engineers, we are professional and you save worry and save trouble.
- All Carpa Tents are engineered to reduce operation and managing expenses, with superior energy efficiency, let you spend every penny worth.
- High quality material and accurate design makes tents durable, safe, and makes erection and disassembly easy and fast.
- We welcome your visiting to our factory before order, we feedback every producing progress after order, and we do careful inspection before shipment, and we welcome your on-site inspection.

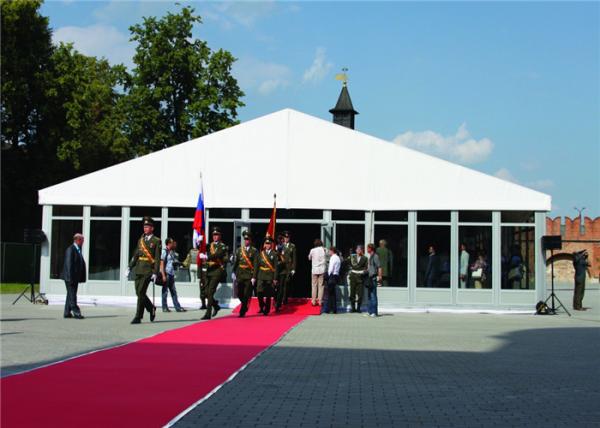

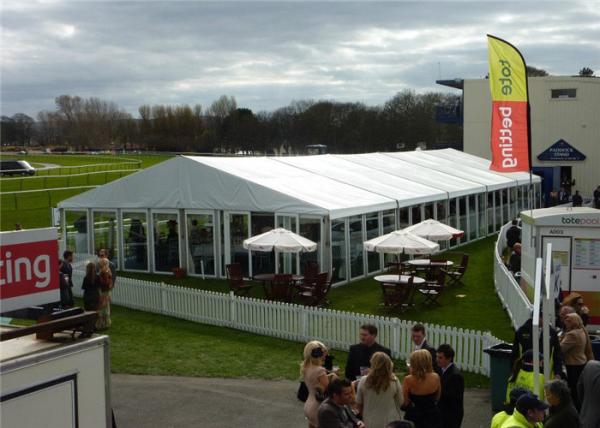

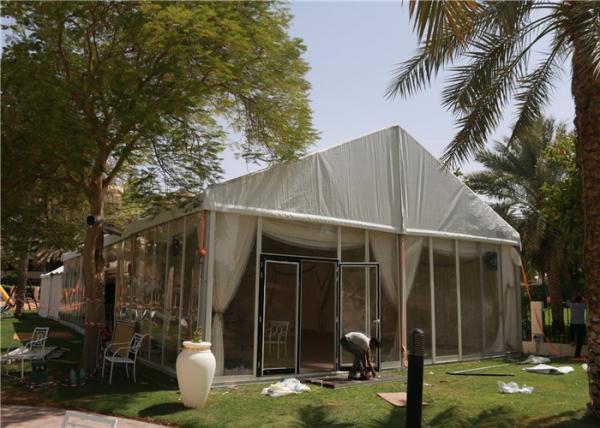

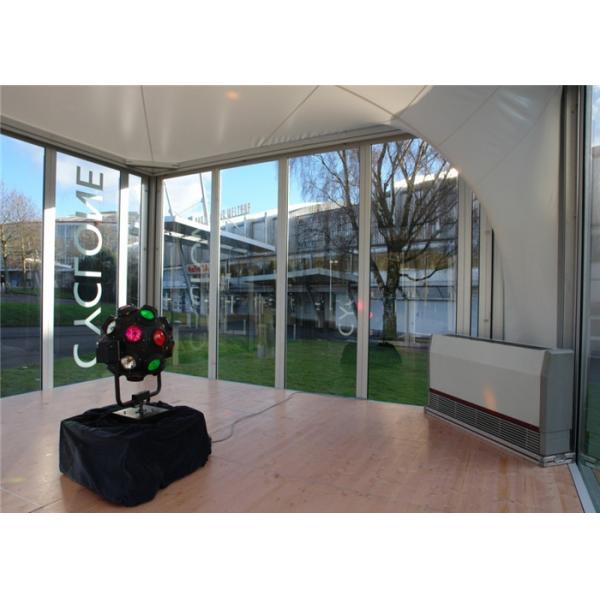

Clear Photos


We warmly welcome you come to visit our factory and check our sample tents.
