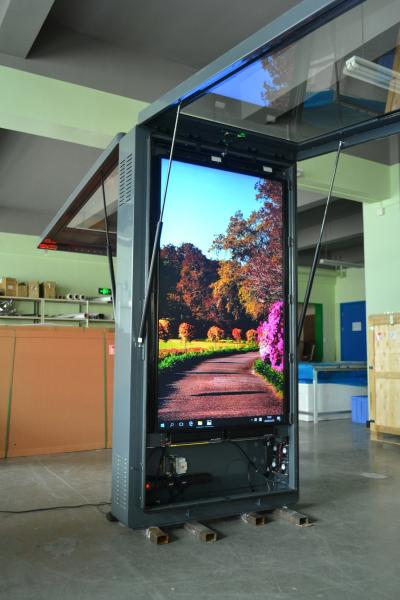

4K UHD 65 Outdoor LCD Digital Signage LCD Totem With PCAP Touch
4K UHD 65 Outdoor LCD Digital Signage LCD Totem With PCAP Touch
4K UHD 65 Outdoor LCD Digital Signage LCD Totem With PCAP Touch
4K UHD 65 Outdoor LCD Digital Signage LCD Totem With PCAP Touch
Specifications
Brand Name :
Maxbright
Model Number :
T650EDCP
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / Month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood case packaging
PANEL TYPE :
TFT-LCD
Resolution :
3840×2160 4K UHD
Brightness :
2000-2500 cd/m2, LED Backlight Enhanced
Power Consumption :
550W(FHD)
PIXEL PITCH :
0.372(H) x 0.372(V) mm
AC INPUT :
AC 100 to 240V, 50 to 60 Hz
Operating Temperature :
-30℃～60℃
Display Area :
1428.5(H) x 803.52 (V)mm
Touch Screen :
Projection Capacitive Touch Option
Description

4K UHD 65" Outdoor LCD Digital Signage LCD Totem With PCAP Touch

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 803.52 x 1428.48 mm in portrait orientation
NATIVE RESOLUTION 3840 × 2160 RGB QWUXGA 4k
PIXEL PITCH 0.372(H) x 0.372(V) mm
COLOR 1.07 Billon color, 10 bits
HORIZONTAL FREQ. 244KHz ~ 280KHz
VERTICAL FREQ. 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1400:1, Dynamic contrast ratio: 10000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 5msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3399 CPU) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 430W for 2000 nits, 540W for 2500 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA, Composite, S-Video cable x 1
OPERATING Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2
(option) 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option)
TOUCH 10 points PCAP, or metal mesh option

DIMENSION

WEIGHT

2000(H) x 1110(W) x 260(D) mm, (without air-con)

185 Kg approx (without air-con)
Waterproof IP65 Enclosure
COOLING By cooling fans controlled by MCU for outdoor
600W air-conditioner option for harsh outdoor
FRONT PROTECTION 3+3 AR vandal glass or 6mm AR vandal glass

ENVIRONMENTAL

OPTION

Operating Temperature -20-50oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year, extended 2 or 3 years available

4K UHD 65
