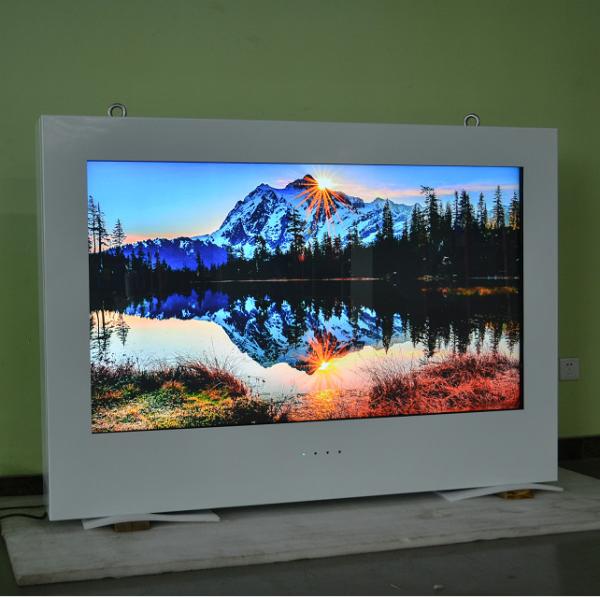

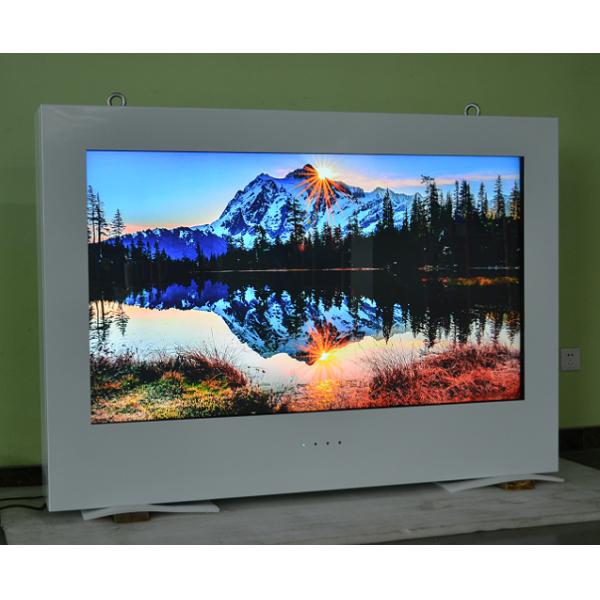

Outdoor IP65 High Bright 65 Digital Signage 2500 nits Model: M650EDCL
Outdoor IP65 High Bright 65 Digital Signage 2500 nits Model: M650EDCL
Specifications
Brand Name :
Maxbright
Model Number :
M650EDCL
Certification :
Certificate of Approval
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50-100 unit / month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton + pallet packaging
Type :
a-Si active matrix TFT-LCD
Brightness :
2000 -2500 nits
Operating voltage :
AC100~240V 50 /60 HZ
Operating Temperature :
-30 --- 50 deg C
Power comsumption :
450 W
Application :
Outdoor advertising publish, interactive touch, info search
Input voltage :
AC100~240V 50 /60 HZ
Description

Maxbright 65" Outdoor High Bright LED Array Backlight Enhanced Model: M650EDCL

LED Array Backlight Enhanced

Model: M650EDCL

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

3840 x 2160 QWUXGA Max. Resolution

Aspect Ratio: 16:9 in landscape mode

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -20 ～ 45o C

Media player box or mini-PC for content playback

Waterproof IP54 enclosure option

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 1428.48 x 803.52 mm landscape orientation
NATIVE RESOLUTION 3840 x 2160 QWUXGA Max. Resolution
PIXEL PITCH 0.372(H) x 0.372(V) mm
COLOR 1.073 G, 10 bits
HORIZONTAL FREQ. 121.8KHz ~ 140KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 8000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 8msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3288 Android OS) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 430W for 2000 nits, 520W for 2500 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1
OPERATING Mini PC: D2550 Dual Core 1.8GHz, 4GB DDR2
(option) 2.5” HD, 5 x USB ports, 1 x RJ45
DIMENSION 1685(H) x 1183(W) x 240(D) mm,
WEIGHT 175 Kg approx
Waterproof IP54 Enclosure option
COOLING By cooling fans and temp sensor for indoor
600W Mini air-conditioner option for outdoor
ENVIRONMENTAL

Operating Temperature -10-45oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
