Large Digital Outdoor LCD Signage 75 IP54, 3000 nits M750EDCP-i
Large Digital Outdoor LCD Signage 75 IP54, 3000 nits M750EDCP-i
Specifications
Brand Name :
Maxbright
Model Number :
M750EDCP-i
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
60 sets / month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + carton packaging + pallet
Price :
Negotiable
Panel :
a-Si Active Matrix TFT-LCD
Resolution :
3840 x 2160
Brightness :
3000 nits
Power Consumption :
680W
Operating voltage :
100 - 240 VAC 50/60Hz
Operating temperature :
-20C -- 50C
Description

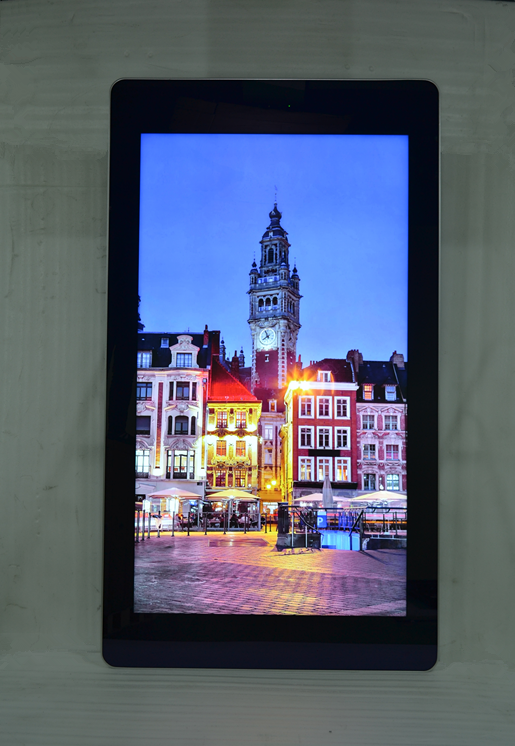

Maxbright 75" High Bright Outdoor LCD E-poster Model:M750EDCP-i

LED array backlight enhanced

Model:M750EDCP-i

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2500-3000 nits, Sunlight Viewable

3840 x 2160 QWUXGA Resolution

Aspect Ratio: 9:16 in Portrait mode enabled

Wide Viewing Angles 178 deg. (L/R/U/D)

Wide operating temp range, -20 ～ 50o C

Media player or mini-PC for content playback

Waterproof IP54 enclosure

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 927.936 x 1649.664 mm portrait orientation
NATIVE RESOLUTION 3840 x 2160 RGB, 4K model
PIXEL PITCH 0.429(H) x 0.429(V) mm
COLOR 1.07 Billion, 10 bits
HORIZONTAL FREQ. 121.8KHz ~ 140KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC)
BRIGHTNESS 2500-3000 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1200:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 8 msec typical
INTERFACE VGA, HDMI x 3
MEDIA PLAYER Media Player (RK3288 Android OS ) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 680W for 3000 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING

(option)

 Mini PC: D2550 Dual Core 1.8GHz, 2GB DDR 500GB HDD, 5 x USB, 1 x RJ45, Wi-Fi
1 x HDMI, 2 X RS232, Windows OS
TOUCH 10 Points Metal Mesh CAP

DIMENSION

WEIGHT

1920(H) x 1180(W) x 160(D)mm

180 Kg approx
Waterproof IP54 Enclosure
COOLING By cooling fans controlled by MCU
600W Mini air-condition option for Harsh outdoor
ENVIRONMENTAL

Operating Temperature -20-45oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
