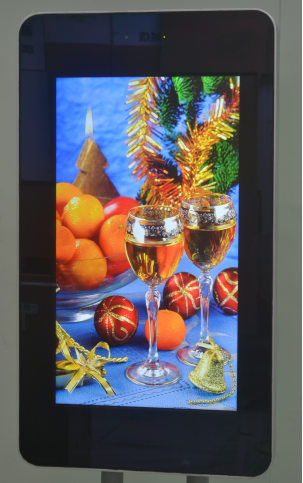

32 inch Outdoor LCD Digital Signage E-poster 100 - 240 VAC 50/60Hz
32 inch Outdoor LCD Digital Signage E-poster 100 - 240 VAC 50/60Hz
Specifications
Brand Name :
Maxbright
Model Number :
M320EDCP-i
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets / month
Delivery Time :
4~5 weeks
Packaging Details :
Pearl cotton shock absorption + wood frame packaging
Price :
Negotiable
Panel :
a-Si Active Matrix TFT-LCD
Resolution :
1920 x 1080
Brightness :
2500 nits
Power Consumption :
145W
Operating voltage :
100 - 240 VAC 50/60Hz
Operating temperature :
-20C -- 50C
Touch Screen :
10 Points Projected CAP Touch option
Description

Maxbright 32" High Bright Outdoor LCD E-poster Model:M320EDCP-i

LED array backlight enhanced

Model:M320EDCP-i

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000-2500 nits, Sunlight Viewable

1920 x 1080 Max. Resolution

Aspect Ratio: 9:16 in Portrait mode enabled

Wide Viewing Angles 178 deg. (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player or mini-PC for content playback

Waterproof IP54 enclosure option

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 392.85 x 698.4 mm portrait orientation
NATIVE RESOLUTION 1080 x 1920 RGB
PIXEL PITCH 0.36375(H) x 0.36375(V) mm
COLOR 16.7 Million, 8 bits
HORIZONTAL FREQ. 57.3KHz ~ 70KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 57Hz ~ 63Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 10 msec typical
INTERFACE VGA, HDMI x 2
MEDIA PLAYER Media Player (RK3288 Android OS ) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE 100 ~ 240VAC 50/60Hz
POWER CONSUMPTION 110W for 2000 nits, 145W for 2500 nits
STANDBY MODE 3 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING

(option)

 Mini PC: D2550 Dual-core 1.86GHz, 2GB DDR3, 32-64GB SSD, 4 x USB ports, 1 x RJ45, 1 x HDMI, 2 x RS232, Windows OS

DIMENSION

WEIGHT

1041(H) x 520(W) x 140(D)mm

33 Kg approx
Waterproof IP54 Enclosure
COOLING By cooling fans controlled by MCU
ENVIRONMENTAL

Operating Temperature -20-45oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year
