49 Open Frame 2500nits High Brightness LCD Module
49 Open Frame 2500nits High Brightness LCD Module
49 Open Frame 2500nits High Brightness LCD Module
49 Open Frame 2500nits High Brightness LCD Module
Specifications
Brand Name :
Maxbright
Model Number :
OF490EDCL
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 pcs / month
Delivery Time :
3-4 weeks
Packaging Details :
Pearl cotton shock absorption + carton packaging
Panel Type :
a-Si Active Matrix TFT-LCD
Brightness :
2000 - 2500 nits
Resolution :
1920 x 1080
Power Consumption :
330W
COLOR :
16.7 M, 8 bits depth
PIXEL PITCH :
0.4902(H) x 0.4902(V) mm
Description

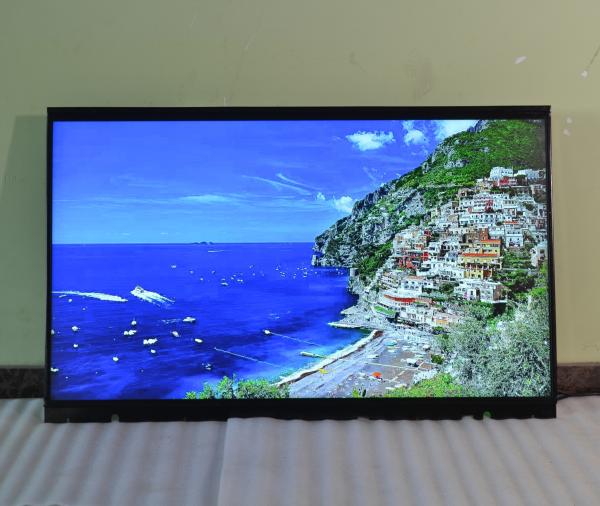

49" Open Frame 2000nits High Brightness LCD Module

49”High Bright Open Frame Module Model:OF490EDCL

LED Array Backlight Enhanced

Model:OF490EDCL

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 1500-2500 nits,

Sunlight Viewable

1920 x 1080 Max. Resolution

Aspect Ratio: 16:9 in Landscape or Portrait mode

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player box or mini-PC for content playback

Main Specs of 49” High Bright Module

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 941.184(H) x 529.(V)mm
NATIVE RESOLUTION 1920 x 1080 RGB
PIXEL PITCH 0.4902(H) x 0.4902(V) mm
COLOR 16.7 M, 8 bits depth
HORIZONTAL FREQ. 57.3KHz ~ 70KHz
VERTICAL FREQ. 47Hz ~ 63Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 1500-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1100:1, Dynamic contrast ratio: 9000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 12 msec / 5ms typical
INTERFACE VGA, AV, S-video, HDMI
MEDIA PLAYER Media Player (RK 3288 chip) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 200W for 1500 nits, 330W for 2500 nits
STANDBY MODE 5 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 1

OPERATING

Media Player RK3288 Quad-core Contex-A17 1.8GHz,

2GB DDR3, 32-64GB SSD, 4 x USB ports, 1 x RJ45
(option) 1 x HDMI, 2 X RS232, Android OS 5.1
DIMENSION 963.6(H) x 557.9(W) x 60(D) mm
WEIGHT 30 Kg approx
COOLING By cooling fans controlled by MCU for outdoor

ENVIRONMENTAL

Operating Temperature -20-50oC,

Wide temp. -30-50oC (option)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year

49
