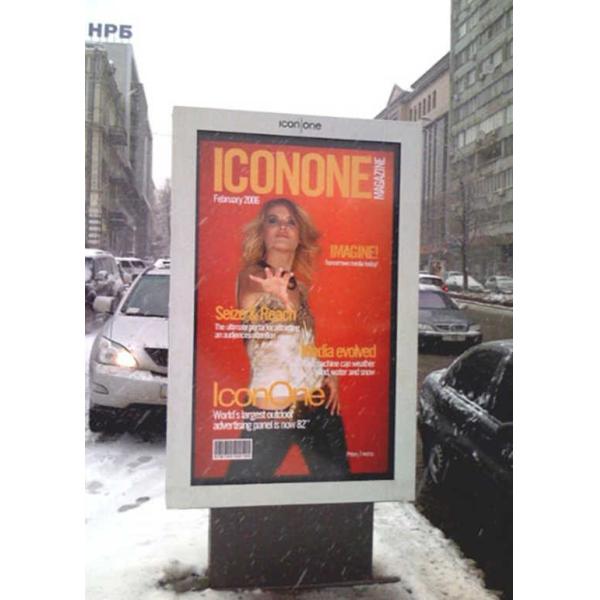

Maxbright 65 Outdoor Dual Face High Bright IP65 Advertising Totem
Maxbright 65 Outdoor Dual Face High Bright IP65 Advertising Totem
Specifications
Brand Name :
Maxbright
Model Number :
T650EDCP
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50-100 unit / month
Delivery Time :
4~5 week
Packaging Details :
Pearl cotton shock absorption + wood frame packaging
Type :
TFT-LCD
Brightness :
2500 - 3000 nits
Operating voltage :
AC100~240V 50 /60 HZ
Operating Temperature :
-30 --- 50 deg C
Power comsumption :
1100W for two 4K panel whole unit
Application :
Outdoor advertising publication, interactive touch, info search
Touch Screen :
10 Points Projected CAP Touch option
Resolution :
3840 x 2160 （4K）UHD
Description

Maxbright 65" Outdoor Dual Face High Bright IP65 Advertising Totem Model: T650EDCP

LED array Backlight Enhanced

Model: T650EDCP

FEATURES:

Active Matrix TFT-LCD Display

High Brightness 2000 - 2500 nits, Sunlight Viewable

QWUXGA 3840 x 2160 RGB(4K) Max. Resolution

Aspect Ratio: 9:16 in portrait mode enabled

Wide Viewing Angles 178 deg (L/R/U/D)

Wide operating temp range, -30 ～ 50o C

Media player box or mini PC for content playback

Waterproof IP65 enclosure

PANEL TYPE a-Si active matrix TFT-LCD
ACTIVE AREA 803.5 x 1428.5 mm in portrait orientation
NATIVE RESOLUTION 3840 x 2160 QWUXGA (4K) Resolution
PIXEL PITCH 0.372(H) x 0.372(V) mm
COLOR 1.07 Billion, 10 bits
HORIZONTAL FREQ. 244KHz ~ 280KHz
VERTICAL FREQ. 95Hz ~ 104Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC)
BRIGHTNESS 2000-2500 cd/m2, LED Backlight Enhanced
CONTRAST RATIO 1400:1, Dynamic contrast ratio: 10000:1
DIMMING Auto-dimming by Light Sensor
VIEWING ANGLE 89/89/89/89
RESPONSE TIME 5msec typical
INTERFACE VGA,, HDMI x 2
MEDIA PLAYER Media Player (RK3288 CPU) (option)
REMOTE CONTROL Support for Full OSD Features
OPERATING VOLTAGE AC 100 ~ 240V 60/50Hz
POWER CONSUMPTION 2500 nits: 1100W for dual face whole unit
STANDBY MODE 10 Watt or less
ACCESSORIES AC Power Cord, Remote Controller
HDMI, VGA cable x 2
OPERATING Mini PC: i5-6500 CPU 3.2GHz, 4-8GB DDR2
(option) 128G SSD, 5 x USB ports, 1 x RJ45, WiFi (option)
TOUCH 10 points PCAP, or metal mesh option

DIMENSION

WEIGHT

2200(H) x 1110(W) x 320(D) mm, (w/o basement)

285 Kg approx (without air-con)
Waterproof IP65 Enclosure
COOLING By cooling fans controlled by MCU for outdoor
1200W air-conditioner option for harsh outdoor
FRONT PROTECTION 3+3 AR vandal glass or 6mm AR vandal glass

ENVIRONMENTAL

OPTION

Operating Temperature -20-45oC,

Wide temp. -30-50oC (with cool/warm air-con)
Operating Humidity 10%-85%
Storage Temperature -30-60oC
Storage Humidity 5%-90%
WARRANTY One Year

Maxbright 65
