Specifications
Brand Name :
X-media
Model Number :
P3
Certification :
CE/ROHS/ISO/CB/SASO/TUV/FCC/UL
Place of Origin :
Shenzhen,China
MOQ :
5sq.m
Price :
Negotiation
Payment Terms :
T/T, MoneyGram,Cash
Supply Ability :
5,000sq.m/month
Delivery Time :
8~10 working days
Packaging Details :
Flight case, wooden case and carton box and foam package
Usage :
outdoor advertising
Screen dimension :
9.6mx4.8m
Display function :
Outdoor display video
Brightness :
5500cd
Warranty :
5 years
Module size :
192x192mm
Life span :
100,000hours
Led chip :
Nation star
Description

Full Color 3 In 1 P3 192x192mm Outdoor Full Color LED Display For Advertising

♦ installation mode

Suspending and stacking installation, fully match the events installation methods.

♦ Product specification

outdoor SMD P3
Lamp size 2020
Resolution/mm 3mm
Pixel configuration RGB 3 in 1
Pixel density/pixels/m² 111111/m²
Module resolution 64x64
Module size/mm 192x192
View distance ≥2m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >5500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 160(degrees)
Vertical view angle 160(degrees)
Signal Process bit 10 or 14 bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode Constant driving current
Scanning mode 1/16
Frame rate 60Hz
Refresh frequency >1920Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡ <1000W
Average power:/㎡ <280W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

9.6mx4.8m LED Display Full Color , P3 LED Outdoor Advertising Screens 5500cd

♦ Our advantages

Professional Manufacturer of led display

1. OEM service,No MOQ

2. Easy installation,regular items in Stocks

3. Offering free design drawing as requested.

4. Remote controlling and adjusting are available.

5. Wooden case or flight case,you are the boss.

6. Your reply will be replied within 24 hours.

7. Fast delivery: Usually 6-8 working days

8. Excellent R&D team,factory Price and assure you quality goods.

♦ Packaging and shipping

Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.

9.6mx4.8m LED Display Full Color , P3 LED Outdoor Advertising Screens 5500cd

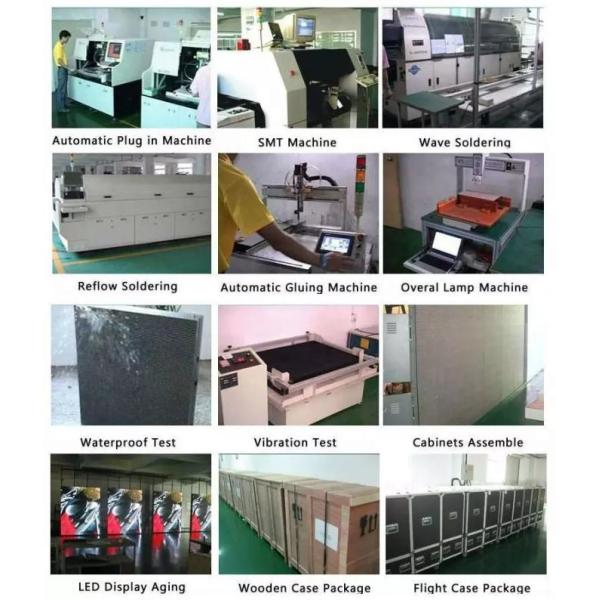

♦ Production process:

1) Incoming Inspection→2) SMD→3) Plug-in

→4) Wave Soldering→5) After Welding→6) Testing

→7) Semi Finished Aging→8) Module Assembly

→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

a. Aging

♦ Methods for Quality Assurance

1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range

♦ Why choose us:

Continues Quality

With more than 12 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

Our team will be forever here to offer you full supports
